7. Installation
2. Turn the outriggers with your hand to the correct position.
Note
If possible, turn each outrigger to 47° (look at the display). This gives maximum stability and
support.

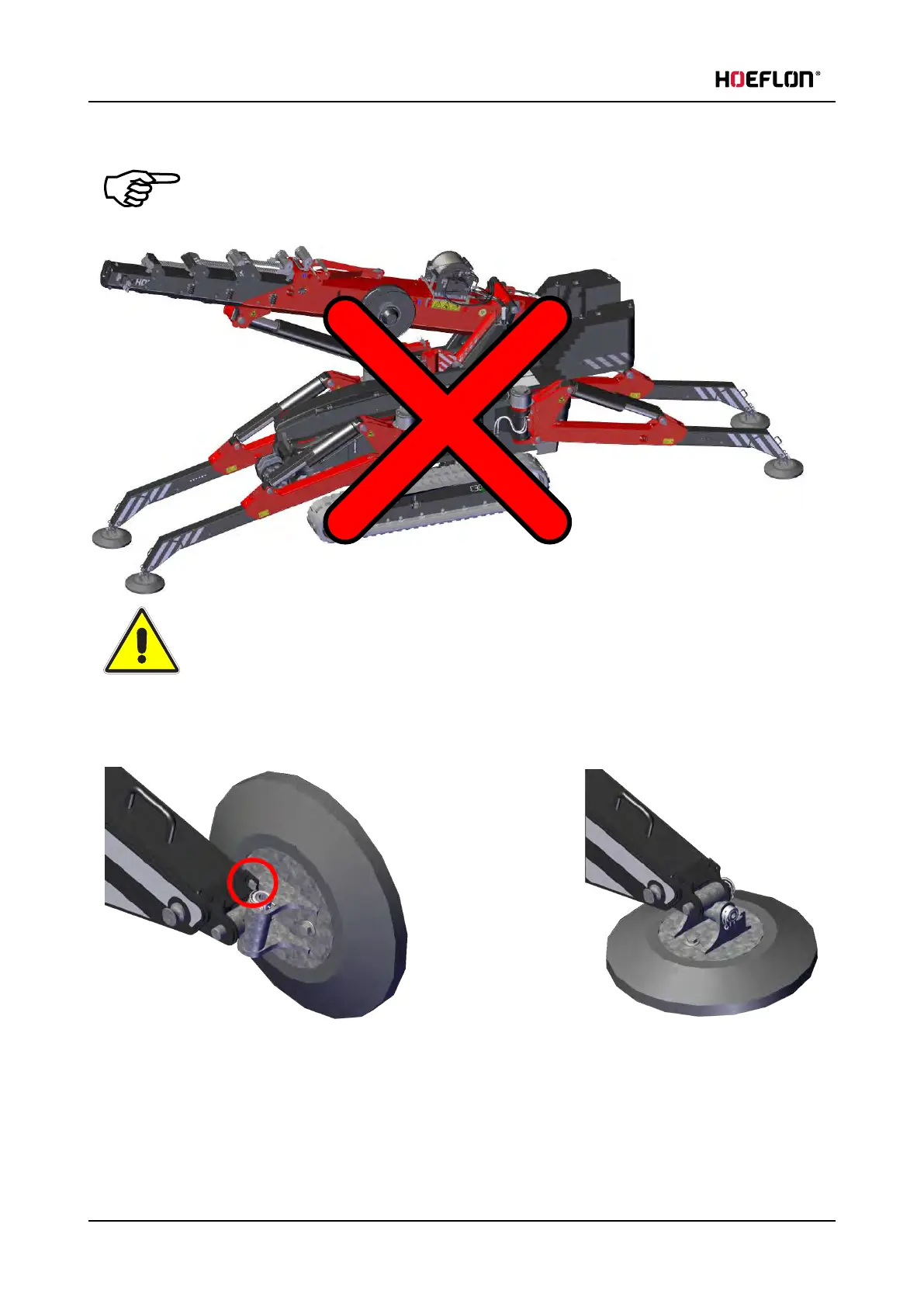

Danger
Do not put all of the outriggers in line with the crane (< 5°). The crane will topple very easily.
3. Release the button (A or B) to lock the outriggers.
4. Make sure that each outrigger angle is the same as the angel that is displayed on the remote control.
5. Turn the foot so that the locking lug is free.
6. Turn the foot so that it is loose.
72 U.C30e.00.00.EN Version
