7. Installation

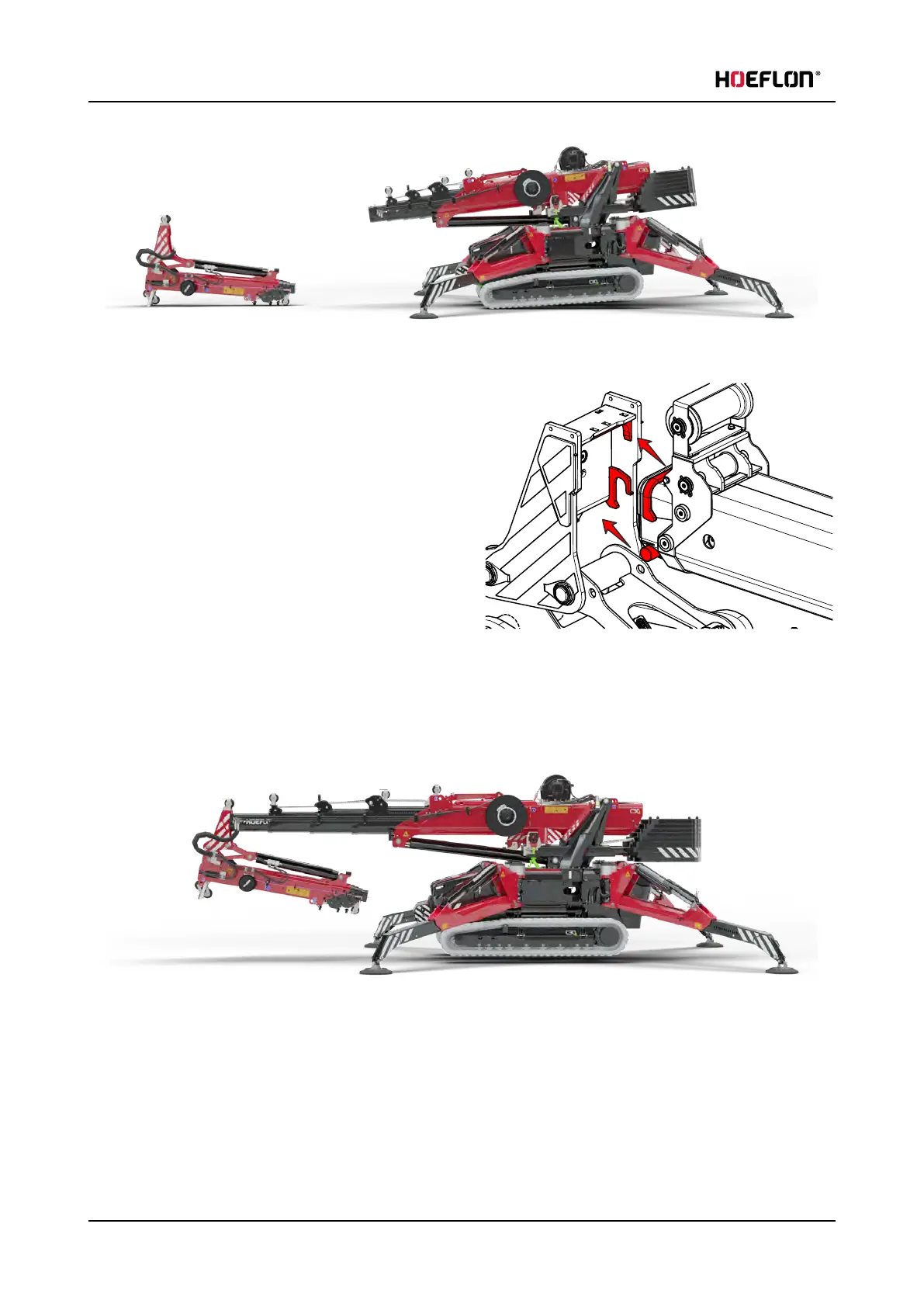

7. Slowly extend the boom until the end of the boom touches the connector plate of the jib.
8. Connect the hydraulic hoses and the power plug.
l
You can move the connector plate of the jib
with a small amount if it does not fully align
with the boom.
9. Make sure that:
l
the strip on the top of the boom engages into
the slot in the top of the jib (A).
l
the pins on the side of the boom engage with
the slots in the side of the jib (B).
10. Slowly move the boom UP.
l
Make sure that the jib doesn't fall.
l
Make sure that the hoses or the cable don't catch.
11. Lift the jib of the ground.
12. Unlock the lever on the top of the boom and push it towards the jib.
13. Make sure that the locking pin is fully engaged in the jib.
76 U.C30e.00.00.EN Version
