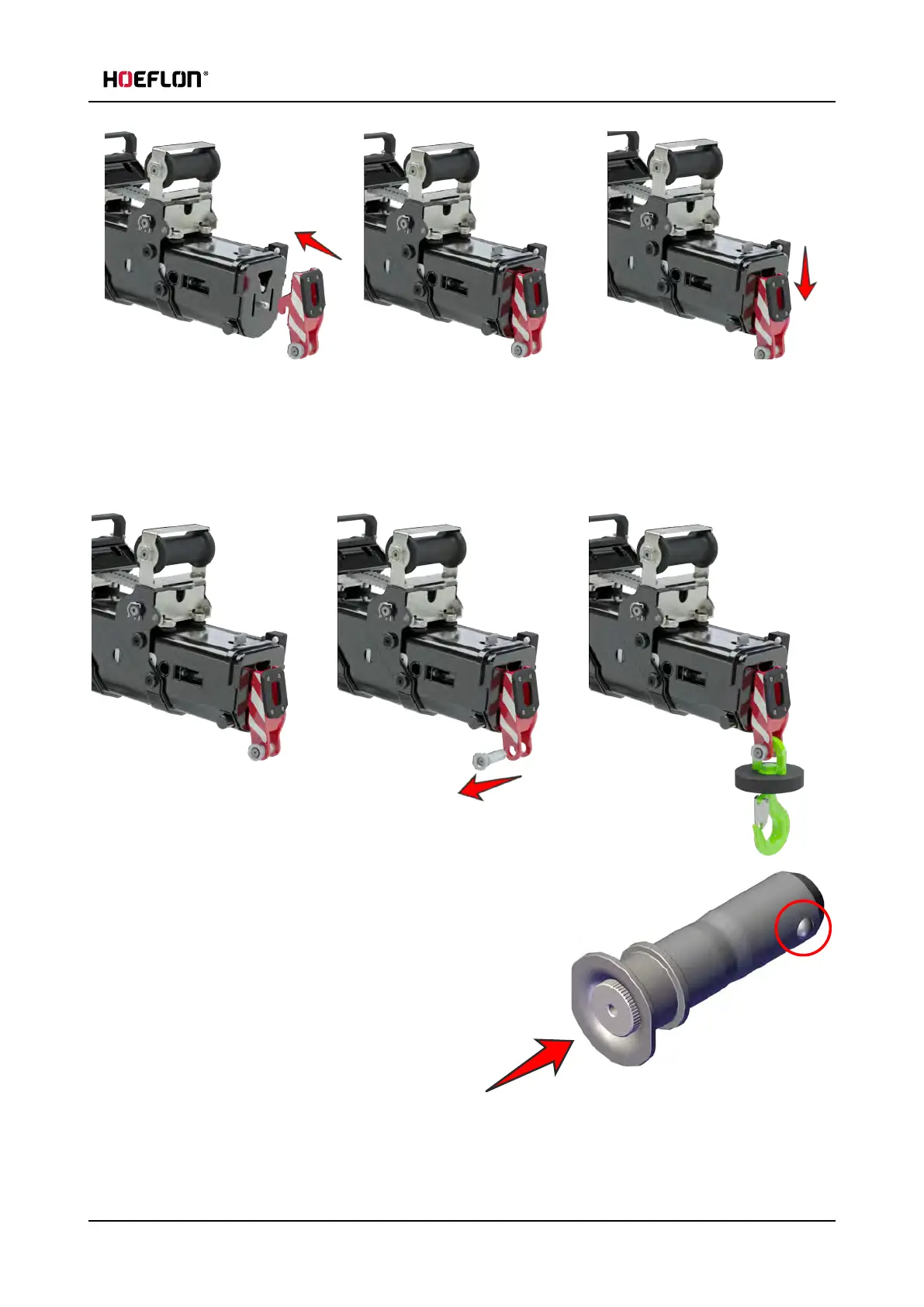

7.10 Attaching an attachment
1. Move the lifting adapter fully against the jib
2. Push the lifting adapter down. Make sure that:
l
the hooks on the lifting adapter fully engage,
l
the locking pin is fully engaged in the opening of the lifting adapter.
1. Push the inner button into the pin.
2. The steel balls at the other end retract.
User guide - C30e Compact crane 79
