7. Installation
a
b
c
d
e

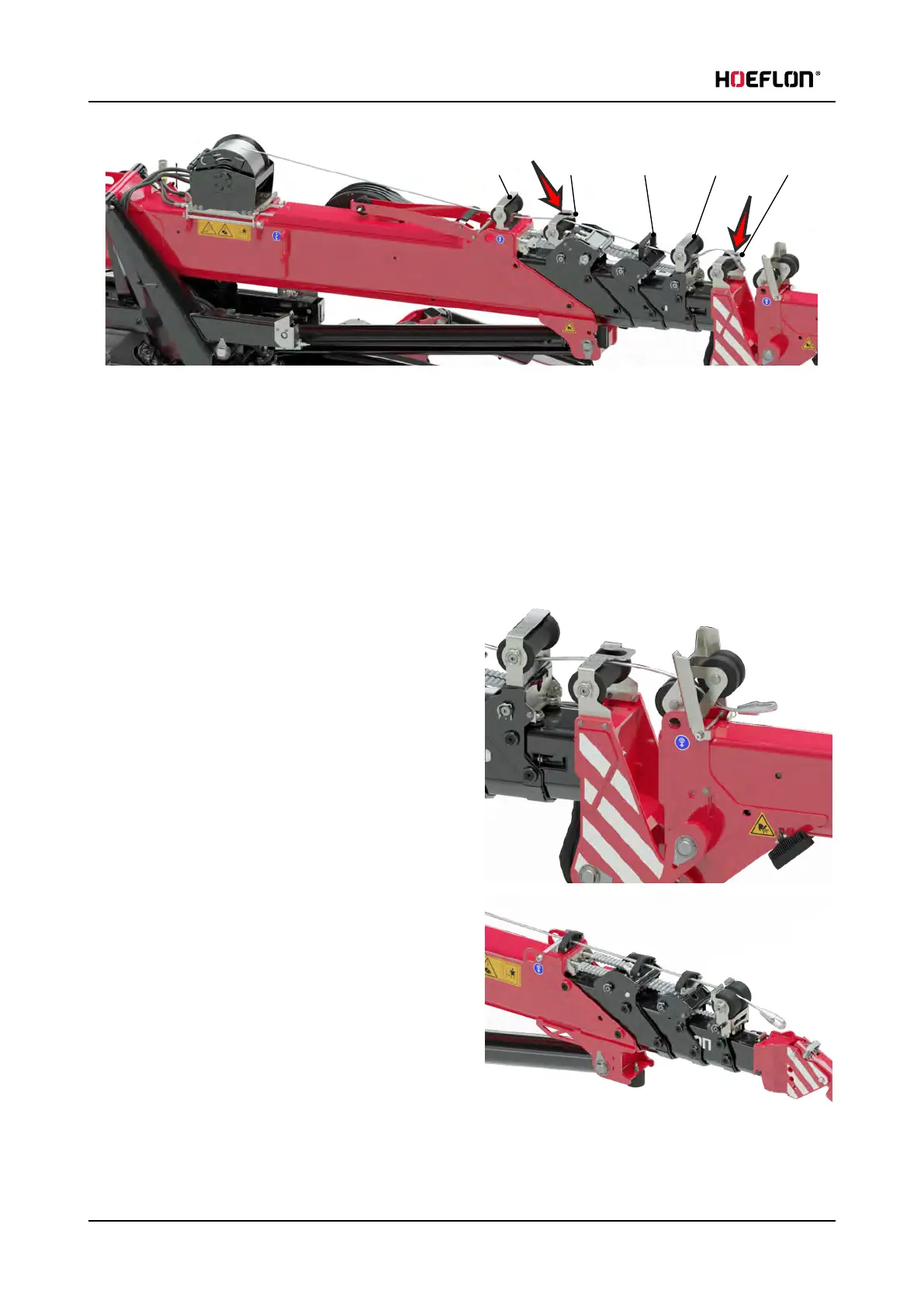

1. Pull the cable over the lifting bar of the counterweight.
2. Pull the cable through the guides in the boom.
a. Under the first roll,
b. Over the second roll, move the cable through the slot in the bracket first,
c. Through the bracket
d. Under the fourth roll
e. Over the last roll, move the cable through the slot in the bracket first.
3. Pull the cable through the rollers in the jib.
4. Pull the cable through the brackets on the jib.
5. Move the cable over the roller at the end of the
jib.
