When dressing the cables, be sure the braided shield does not come in contact with any electrical
component or voltage source.
Cable Connector
Ribbon Cable
Stripe
Copper Shield
Ground Lug
Braided Shield

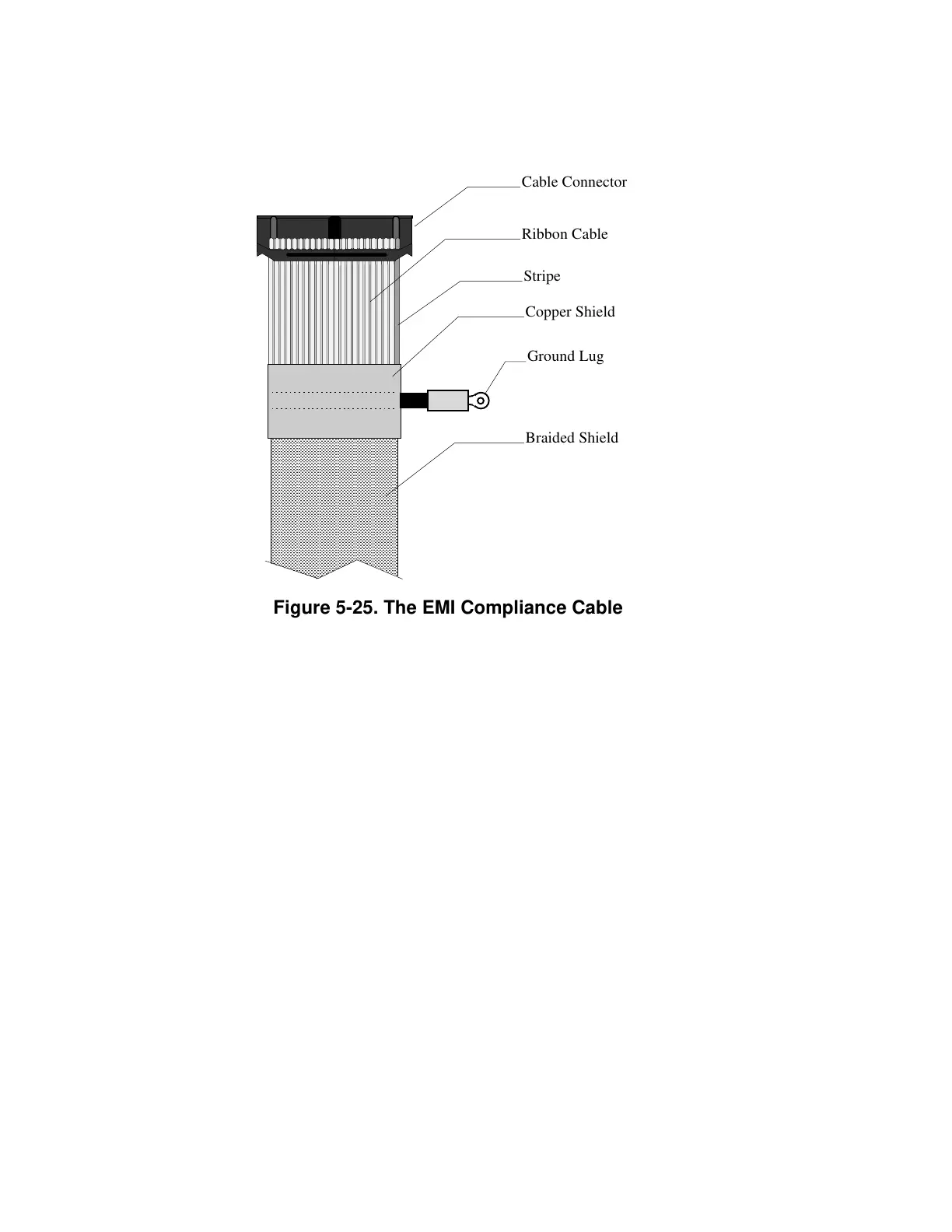

Figure 5-25. The EMI Compliance Cable
