Hologic QDR 4500 - Oil Leakage and Torque Specifications

To Next Page

To Previous Page

Section 6 - Fault Isolation

6-13

OIL LEAKAGE

If the tank assembly is leaking oil, you may have to tighten the screws on the tank cover. It is

important that you tighten the screws using the proper torque specifications and the proper

sequence.

The Torque Specifications

The torque settings are listed in the following table:

Location Torque Specifications Set wrench to…

Lexan Cup 10-12 in-lb 11 in-lb

Bladder Gasket 10-12 in-lb 11 in-lb

Transformer Seal 70 in-lb 70 in-lb

Tank Cover Gasket 36-40 in-lb 38 in-lb

Tank Top Cover Components and Screw Location

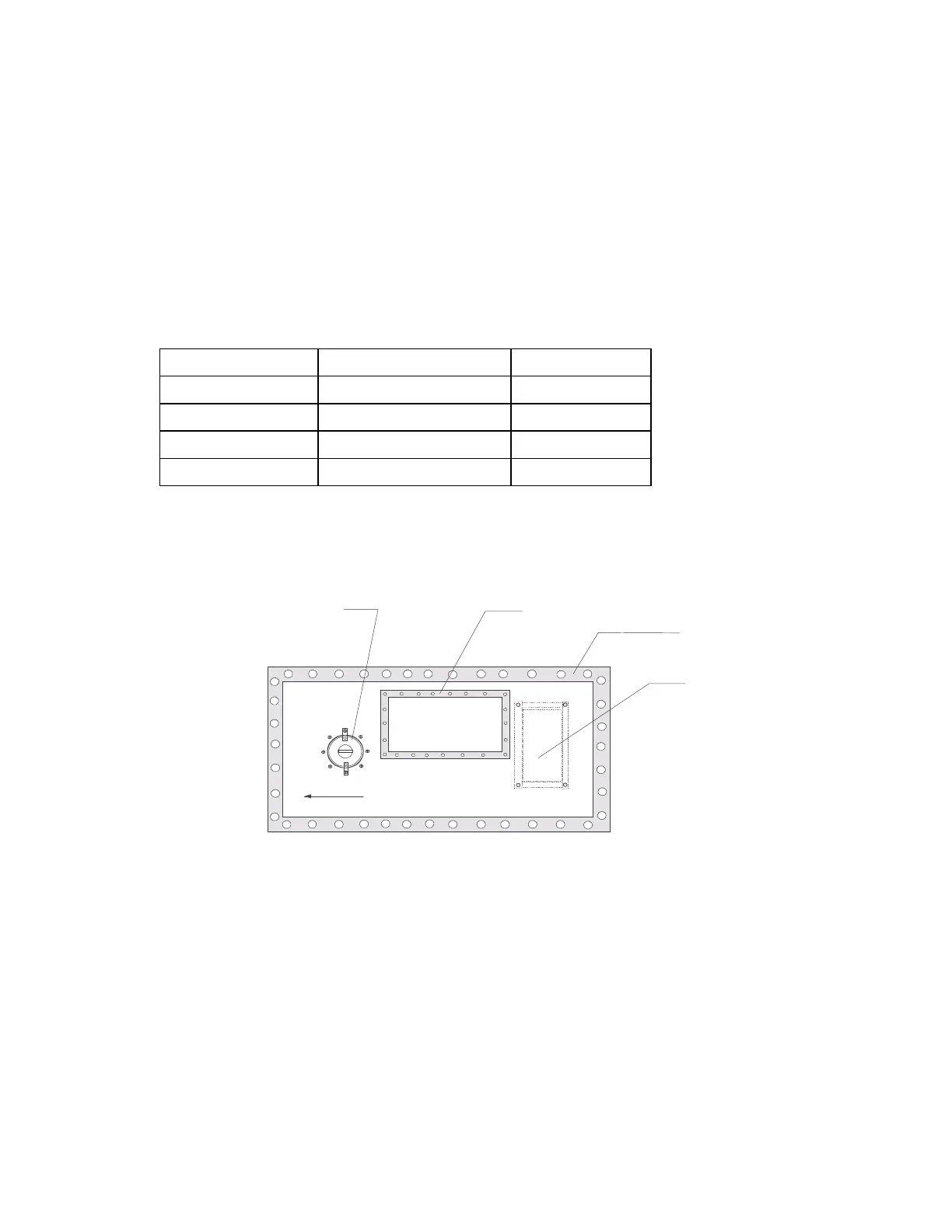

The following figure shows the Tank Top Cover and the locations of the seals:

Bladder Gasket

Xformer

(

hidden

)

Seal

Lexan Cup

Tank Cover

Gasket

TANK ASSEMBLY (Top View)

Front

Figure 6-3 Tank Assembly Top view
