Table End Stop

C-Arm Shipping Brackets (4)

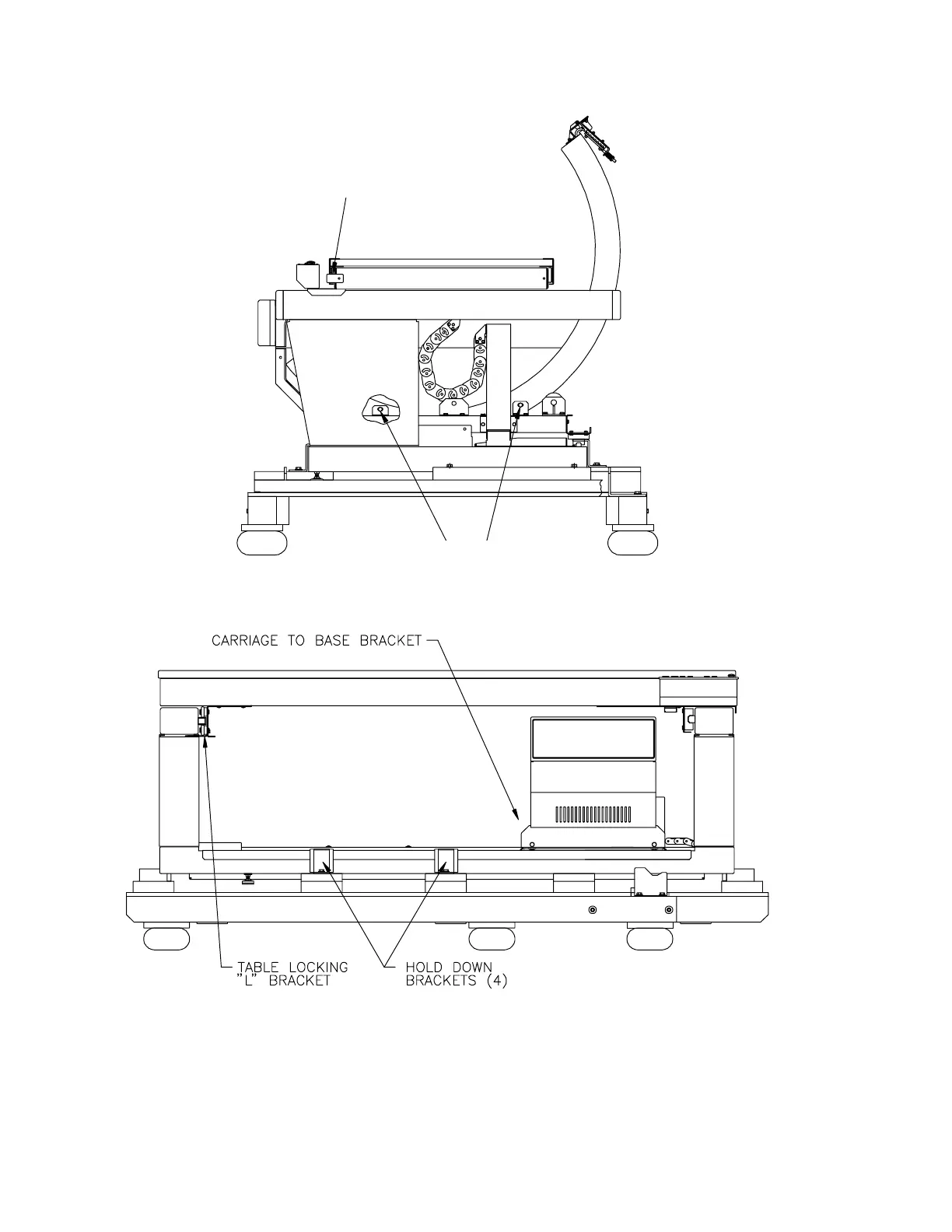

Figure 3-12. Shipping Bracket Locations (QDR 4500A and SL)

Figure 3-13. Shipping Bracket Locations (QDR 4500W and C)
