Hologic QDR 4500 - Miscellaneous Problems; Messages; Figure 6-7. Tank Cover Gasket

To Next Page

To Previous Page

QDR



4500 Technical Manual

6-16

MOST CRITICAL

The Tank Cover Gasket

FRONT

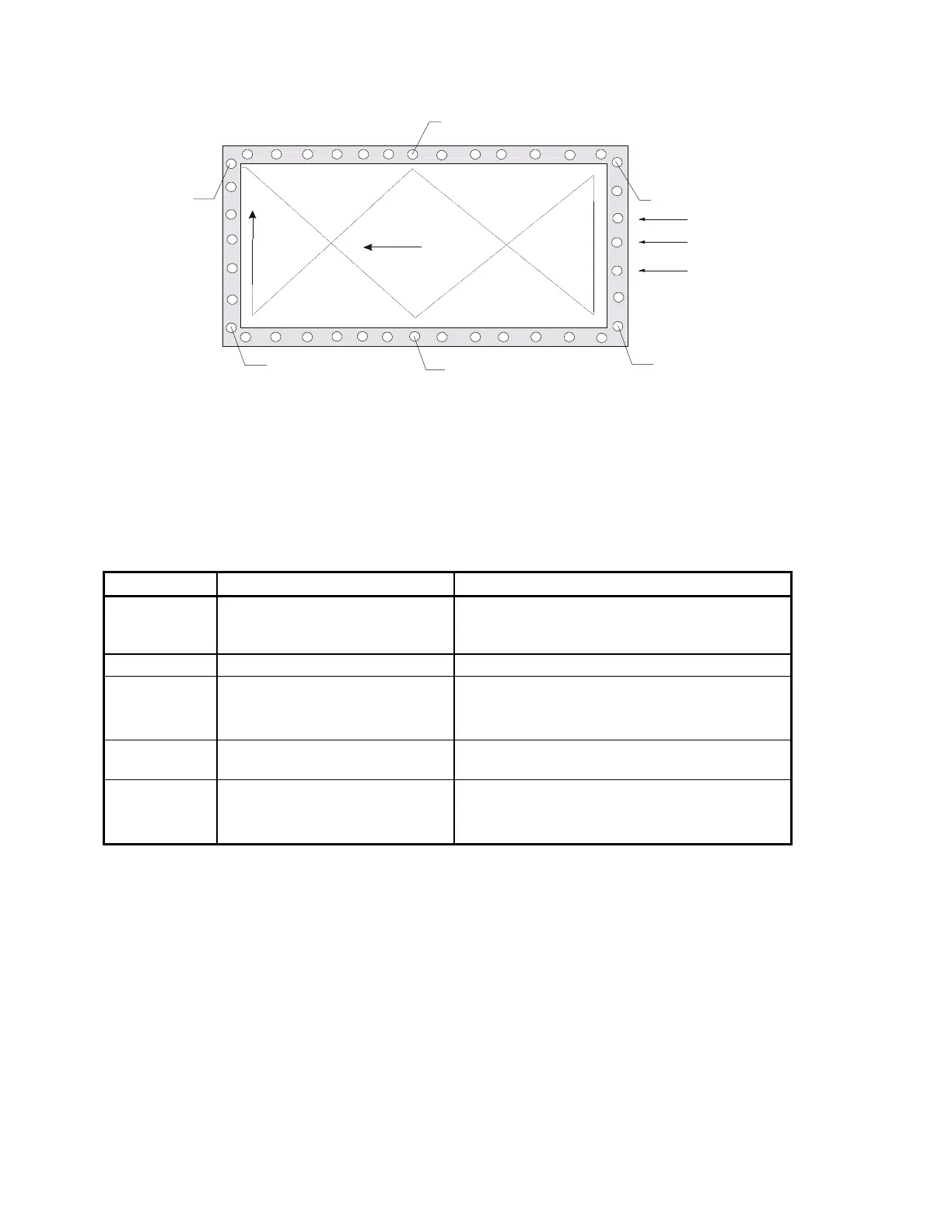

Figure 6-7. Tank Cover Gasket

MISCELLANEOUS PROBLEMS

Problem... Symptom... Solution...

Detector SUSQ bar graph is ramped, or

it appears as 3 or 4 separate

ramped sections.

Analog/Digital Converter PCB

X-ray lamp Turns on with X-rays off Replace the Signal Distribution PCB

System Fails HI-Pot test Check all ground connections

Make sure ground wire terminals are secure

Check crimped terminals

Hi voltage

transformer

Buzzing sound from X-ray tank

assembly

Check torque on transformer bolts

System No power Check main circuit breaker

Check main power cord

Check power module circuits breakers

MESSAGES

The QDR 4500 system software displays three types of messages to the operator:

•

informational messages

•

warnings

•

error messages.

Informational messages
