QDR
®
4500 Technical Manual
3-4
Wall
45.5" (115.6cm)
51.4“ (130.6cm)
2.0 (5.1cm)"
2.0 (5.1cm)"
55.6" (141.2cm)
76.0" (193.0cm
96.0" (243.8cm)

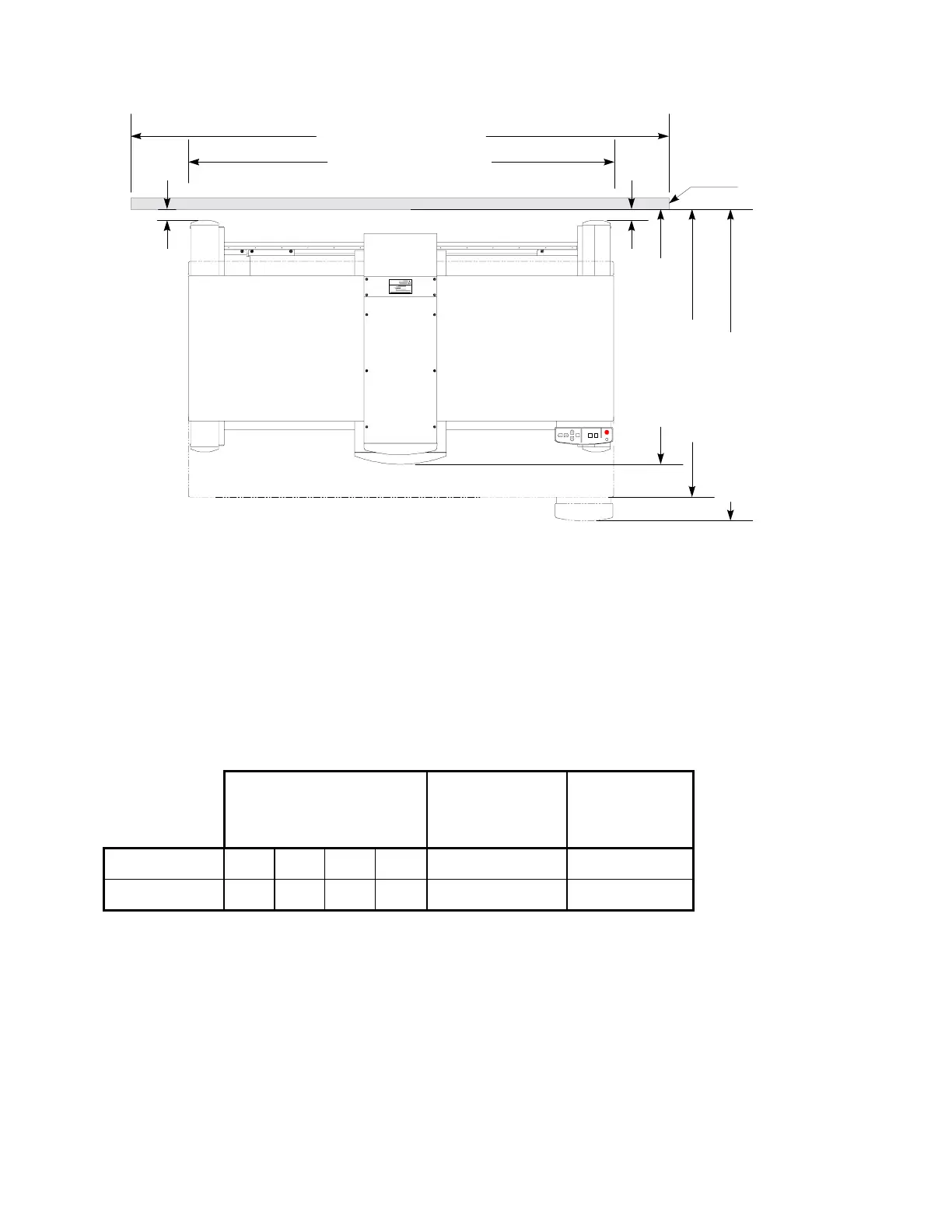

Figure 3-4. System Dimensions (4500C)
The Operator's Console may be up to 50ft (15.24m) away from the Scanner, but since leakage
and scatter radiation levels are extremely low, it can be safely located in the same room with the
QDR 4500 itself.
ARRANGE FOR HELP
Moving the unit to its final location requires at least two able-bodied people to direct the
machine, hold doors and lift heavy parts. The following table gives some representative weights.
QDR 4500 Model
A SL W C
Computer,
Printer,
Monitor
Power
Console
Weight (lb)
800 700 700 660 100 100
(kg)
365 320 320 300 45 45
INSPECT FOR VISIBLE SHIPPING DAMAGE
Inspect the exteriors of all crates and boxes for shipping damage, and bring any damage
discovered to the attention of the customer's Shipping/Receiving department before proceeding.
