Section 2 - Functional Description

2-29

Power

The Integrator/Multiplexor board receives +/-15V and +5V from the Analog To Digital board.

The +/-15V is passed through this board to the Solid State Detector boards. Voltage regulators,

located on this board, convert this voltage to +/-12V to power circuitry contained on this board.

Analog and digital returns are kept separate.

Interface Connections

Figure 2-16 shows the interconnections between the Analog/Digital Converter board and the

Integrator/Multiplexor board. Table 2-22 describes the interface signals and identifies the

interconnection connector and pin assignments.

MA1, MA2

MB1, MB2

MC1, MC2

MD1, MD2

MUX0 - MUX3

MGN1, MGN2

GPL1, GPL2

LTCH1, LTCH2

INTEG

DISC

TSTEN

BB0

BB1

BB2

BB3

+15V

15V_RTN

-15V

+5V

GND

ANALOG/DIGITAL

CONVERTOR

BOARD

INTEGRATOR/MULTIPLEXOR

BOARD

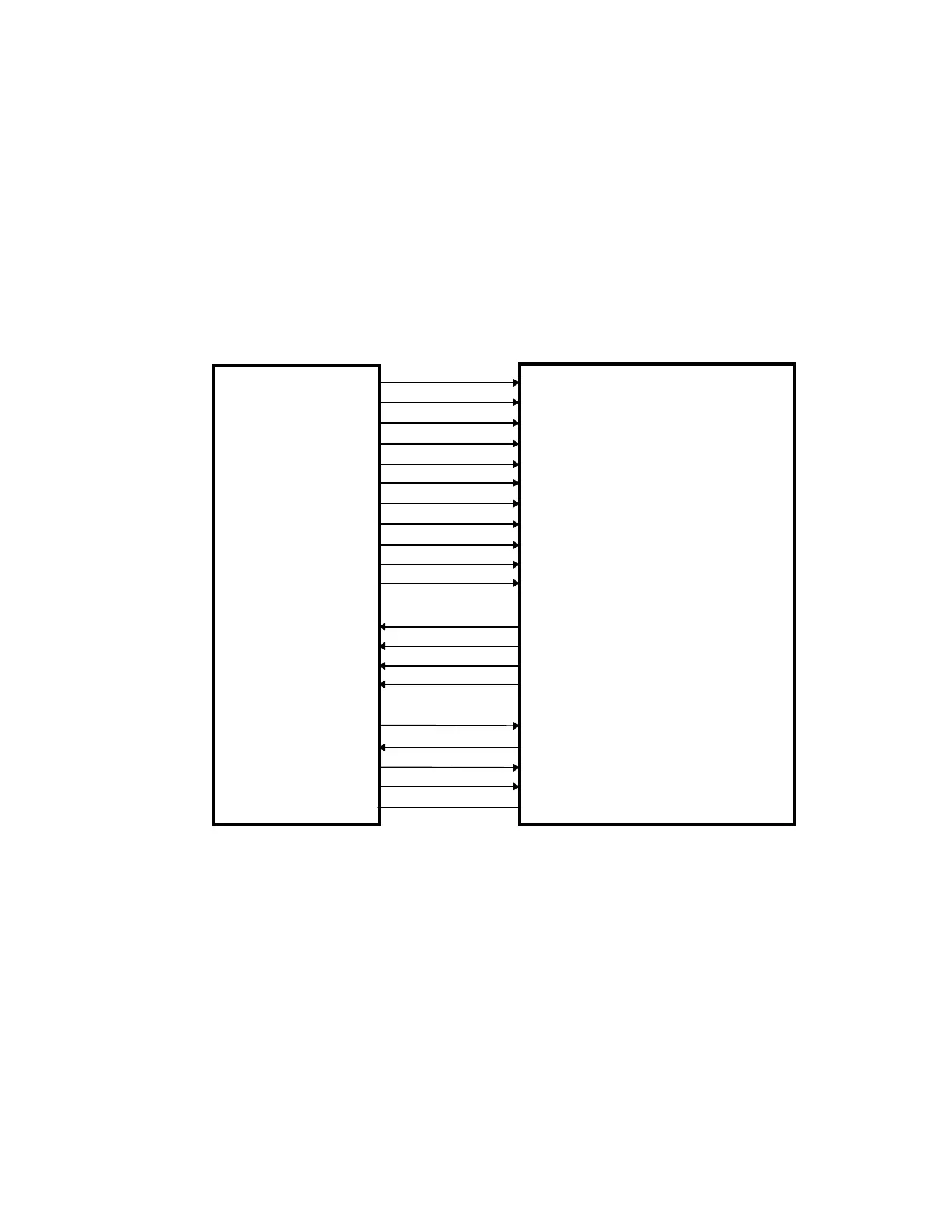

Figure 2-16. Analog Digital Converter Board/Integrator Multiplexor

Board Interconnection Diagram
