ACUIX™ PTZ High Speed Analog Dome Installation and Configuration Guide
Document 800-05662 Rev C 133
06/10
4. Select 2 Clear Error Logs. All error counts in the error log table are
set to zero.

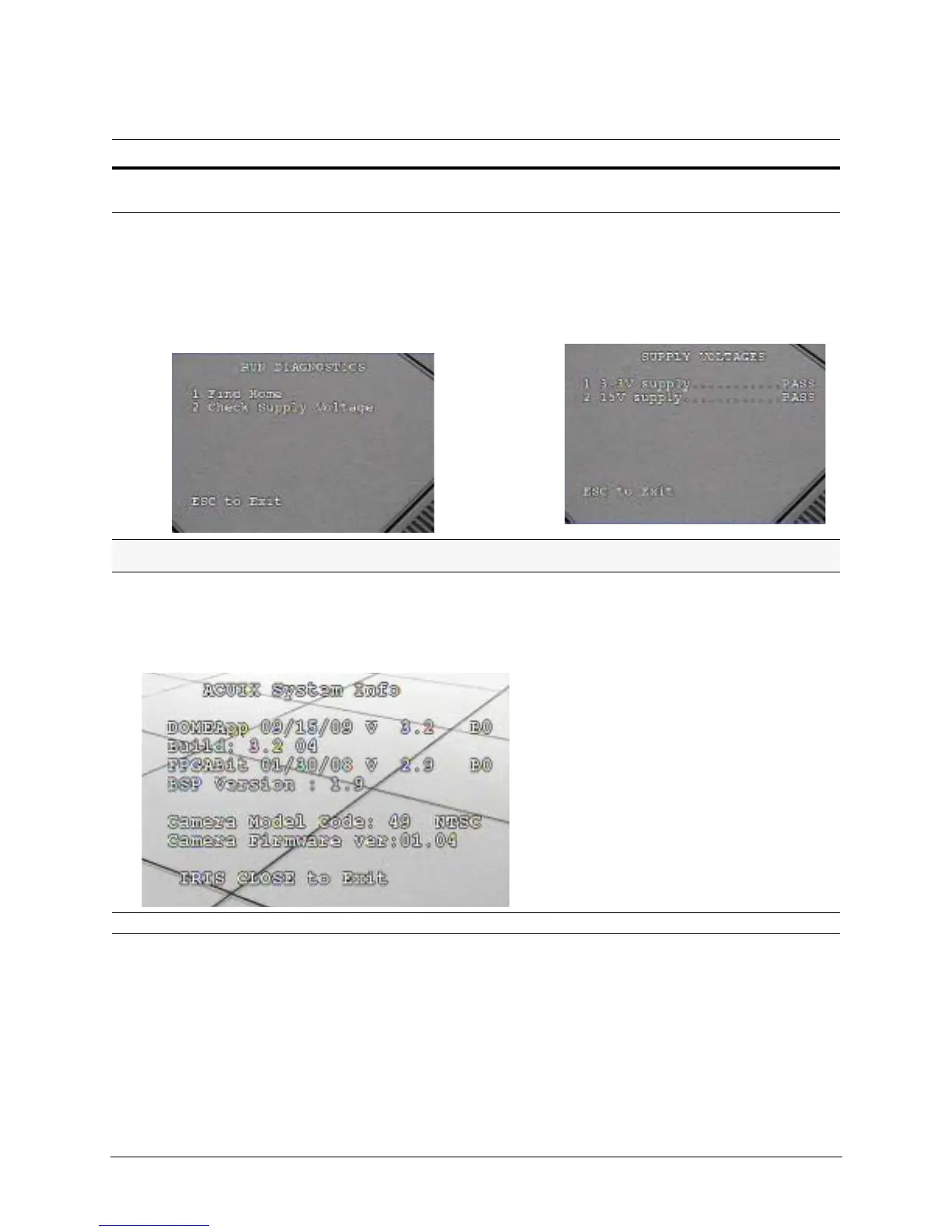

5. Select 3 Run Diagnostics.
• Select Find Home to determine if the dome has found
home or if there is a Pan or Tilt homing error.
• Select Check Supply Voltage to see the status of the 15V
power supply used to operate the camera and the 3.3V
supply used to operate the PC boards. The status will show
as PASS or FAIL.
Run Diagnostics allows you to see if the
dome has found Home or to check the
supply voltage for the camera and the PC
boards.
Displaying System Information
1. Press 75 Preset enter the password (1000 = default).
The Password Settings screen opens.
2. Select 5 Firmware Info.
Various diagnostic information displays on the monitor as in the
screen below.
This is generally only used by technicians
or for troubleshooting.
Task/Action (with Default) Notes
To Next Page
