46
Installation

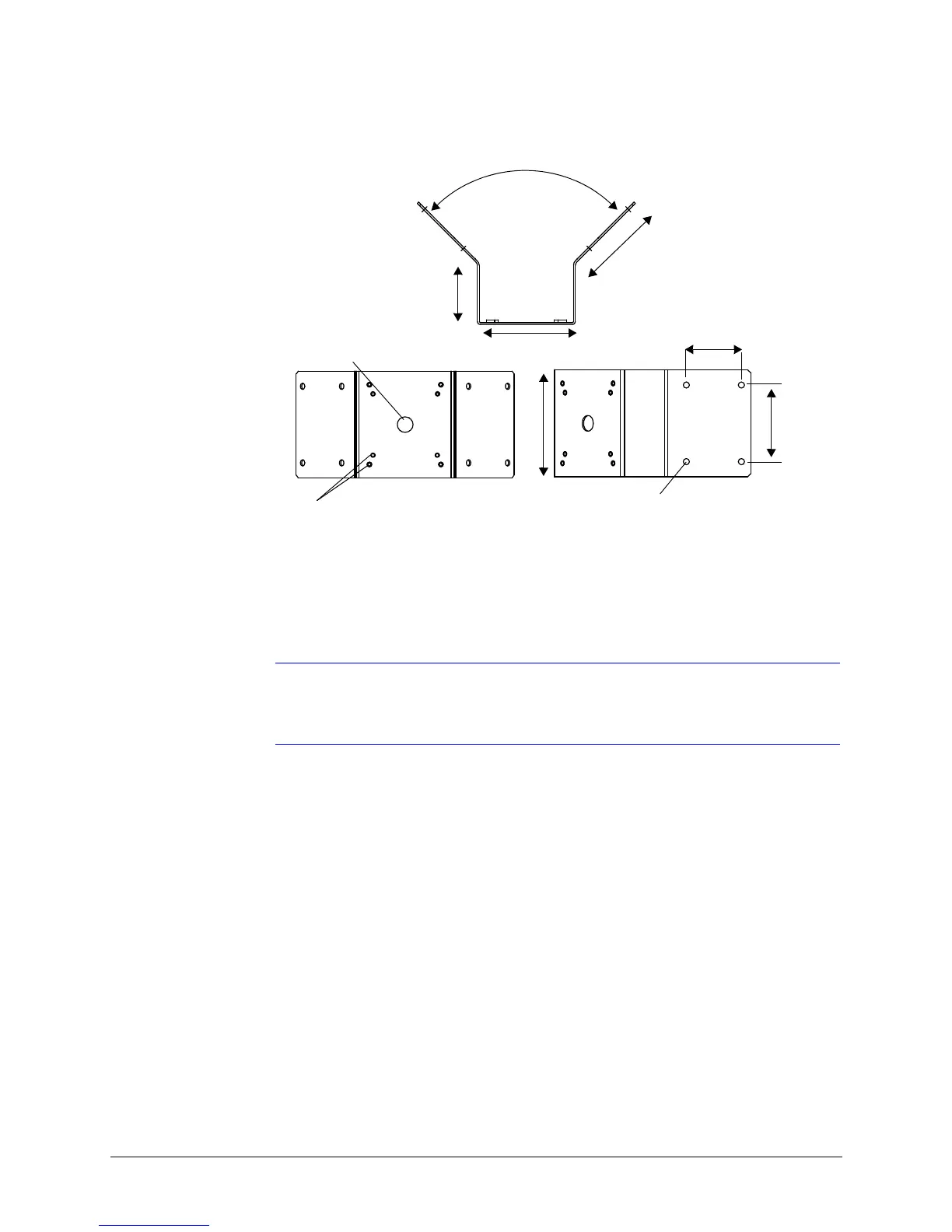

Figure 3-9 Corner Adapter Dimensions
Installing a Parapet or Roof Mount
Note The parapet and roof mount is designed to install a dome on the inside of a
roof parapet or onto a flat roof surface. The mount has a maximum load rating
of 20 pounds (9 kg).
1. Route the field wiring through the dome wiring access hole and through the center
of the parapet mount, leaving approximately one foot (0.3 m) of cable to extend past
the mount.
2. Secure the mount to the parapet or roof using as many of the mounting holes as
possible. The minimum recommended is five fasteners on each side of the
mounting plate. See Figure 3-10.
90 degrees
5
.
4
3
"
(
1
3
8
m
m
)
6.3" (160 mm)
3.94"
(100 mm)
6.89" (175 mm)
0.39" (10 mm) diameter (x8 through)
3.54" (90 mm)
1" (25.4 mm) diameter
Align the mounting holes on the wall mount
with the holes on the corner bracket, as required.
4.9"
(125 mm)
