Honeywell ACUIX Installation And Configuration Guide

44
Installation
Installing Indoor or Outdoor Pendant Mounts and Adapters
The indoor and outdoor pendant housing has optional mounts and adapters available:
• Wall mount (HDXWM2)
• Pole mount adapter (HDXPMA1)
• Corner adapter (HDXCMA1)
• Parapet or roof mount (HDPRM2)
• Ceiling mount (HDCM1)
Installing a Wall Mount and Optional Pole or Corner Adapters
The wall mount is designed specifically for the ACUIX dome and can be mounted directly
to a vertical load-bearing surface. It supports up to 25 pounds (11.7 kg). The optional
corner and pole adapters can be used with the wall mount or with the rugged bracket.

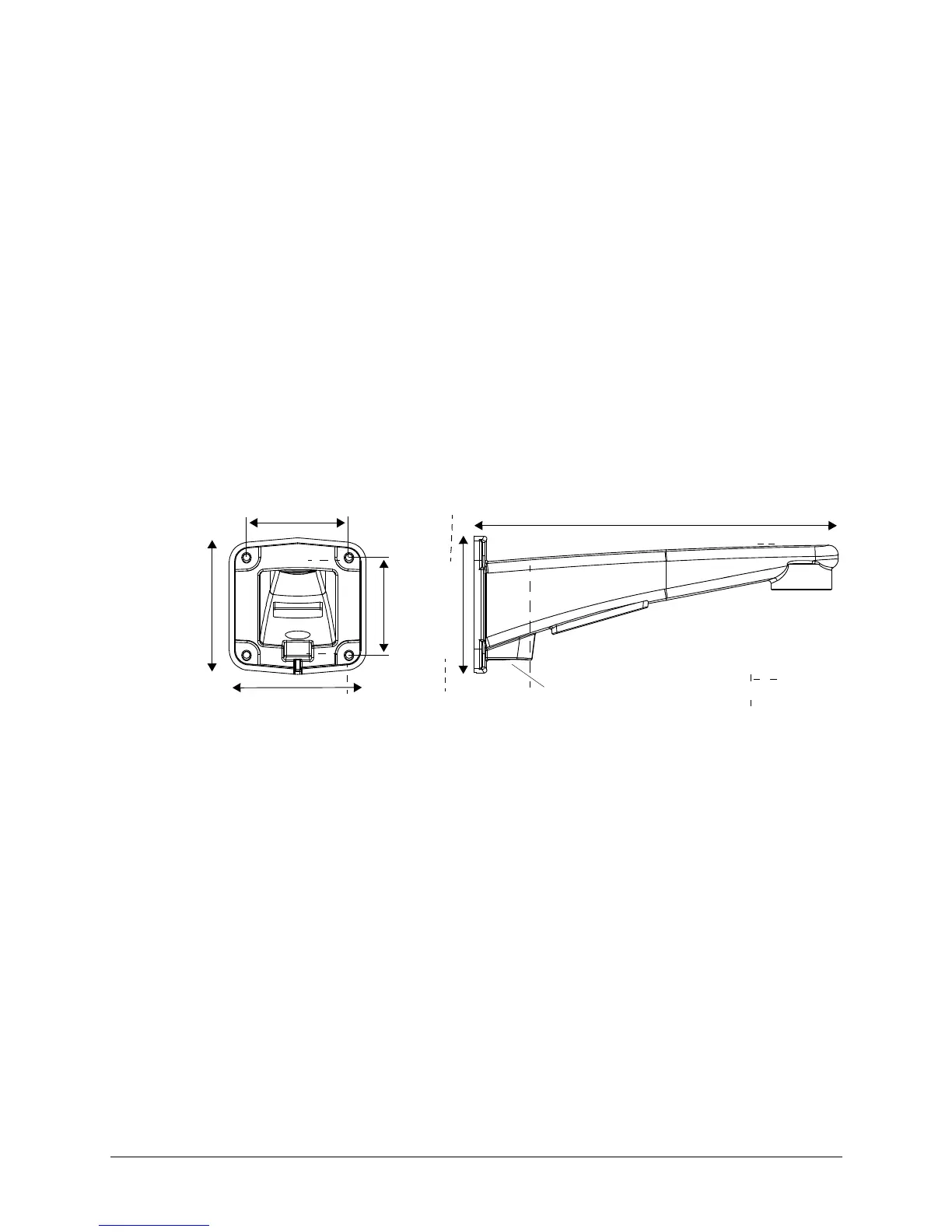

Figure 3-7 Wall Mount Dimensions
1. Route field wiring as required through:
a. The wall, then
b. (Optional) If installing with a corner adapter or pole mount adapter, also route
the field wiring through the corner or pole adapter hole, then
c. Through the back of the mount between the mounting bolts/screws, then
d. Through the pendant housing wiring access hole.
If running a surface mounted conduit, you can also route the wiring through the 3/4"
(19 mm) wiring access hole near the base of the mount arm (see Figure 3-7).
For all installations, approximately one foot (0.3 m) of cable must extend past the
mount.
2. (Optional) If you are installing the wall mount with a corner adapter (HDXCMA1) or
pole mount adapter (HDXPMA1) then:
Pole Adapter
Secure the pole mounting bracket to the pole using hardware specifically designed
for the surface/material. There are four cutouts (two on each side), 0.24” x 0.75” (6
mm x 19 mm), to accommodate straps to secure the pole mounting bracket to a
pole. See Figure 3-8.
5.5” (140.0 mm)
0.75” dia. (19.0 mm) wiring access
hole for surface mounted conduit
5.5” (140.0 mm)
5.5” (140 mm)
14.7”(373 mm)
3.9” (100 mm)
4.1” (105.0 mm)
