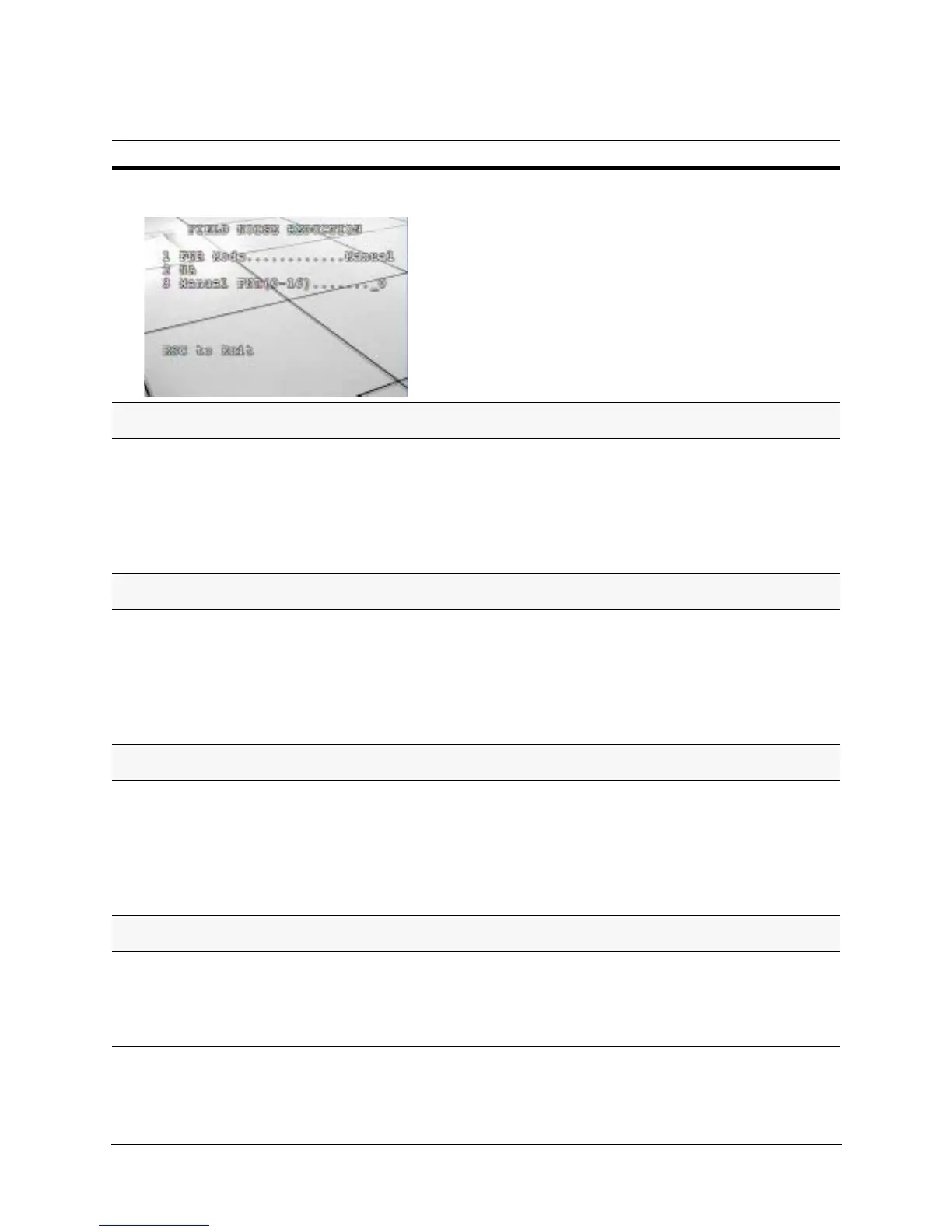

OR, set 1 FNR Mode to Manual to set the FNR level from 0
(weak) to 16 (strong).
Changing the Exposure Level
1. Select 5 Camera Options  3 Video Setup  1 Exposure
Level.
2. Enter a number between 0 and 255 where:
• 116 (default)
• 0 = dark
• 255 = bright
HDXG cameras only.
Changing the Max AGC Level
1. Select 5 Camera Options  3 Video Setup  2 Max AGC
Level.
2. Enter a number between 0 and 255 where:
• 216 (default)
• 0 = picture is dim with no noise
• 255 = picture is bright with noise
HDXG cameras only.
Changing the Chroma Level
1. Select 5 Camera Options  3 Video Setup  3 Chroma
Level.
2. Enter a number between 0 and 255 where:
• 127 (default)
•0 = no color
• 255 = color is saturated
HDXG cameras only.
Turning Backlight Comp ON or OFF
1. Ensure Auto Exposure mode is ON (Press 92  Preset).
2. Ensure wide dynamic range (WDR) is OFF (default).
3. Select 5 Camera Options
3 Video Setup  4 Backlight
Comp
 ON or OFF (default).
HDXG cameras only.
