ACUIX™ PTZ High Speed Analog Dome Installation and Configuration Guide
Document 800-05662 Rev C 43
06/10
Note If the dome is set to address 0000, it responds to control commands for any
address. For example, if an operator sends control commands to address
0002, the dome that has the address 0000 performs the same commands.

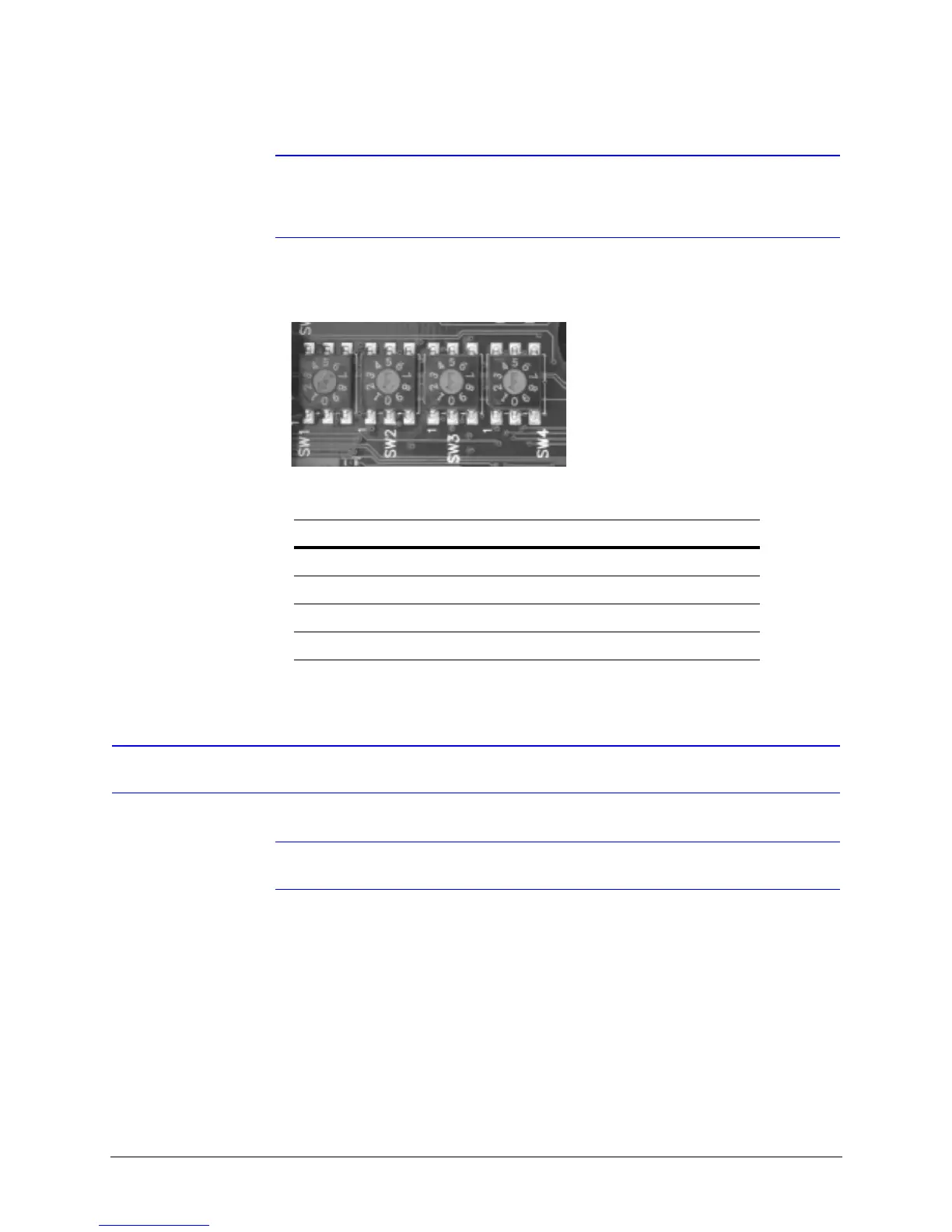

Figure 3-6 Circuit Board Address Switches SW1 to SW4
Step 3: Install the Mount, Adapter or Bracket
Note All the mounting hardware and field wiring is supplied by the installer.
In-Ceiling Housing
This step is part of Step 4: Install the Housing, page 50.
Table 3-7 Address Switch Assignments
Address Value
SW1 Units digit
SW2 Tens digit
SW3 Hundreds digit
SW4 Thousands digit
