ACUIX™ PTZ High Speed Analog Dome Installation and Configuration Guide
Document 800-05662 Rev C 19
06/10
The ACUIX analog PTZ dome features include:
• Housing options for both indoor and outdoor applications. Each housing contains
an interface board that provides wiring for video on coax or unshielded twisted pair,
and control data on shielded or unshielded twisted pair (RS485) or over coax.
• Camera options, including true-day night (TDN), wide dynamic range (WDR), and
electronic image stabilization (EIS).
• A choice of lower dome colors (gold, clear, or smoke) and trim rings (white or
black).
• Remote upload of firmware to all domes.
• Secure storage of all dome settings such as sector labels, presets, tours, and
privacy zones.
• Dynamic privacy zones allow a user to mask up to 32 regions to ensure absolute
privacy for sensitive areas.
• Password protection to prevent unauthorized users from changing the system
settings.
• Other features include Flashback for quick review of two scenes and Still Shot
TM
to
freeze a scene and save storage space during tours.
• Multi-language configuration menus in English, French, German, Dutch, Italian,
Polish, Czech and Spanish.
ACUIX Hardware Terminology

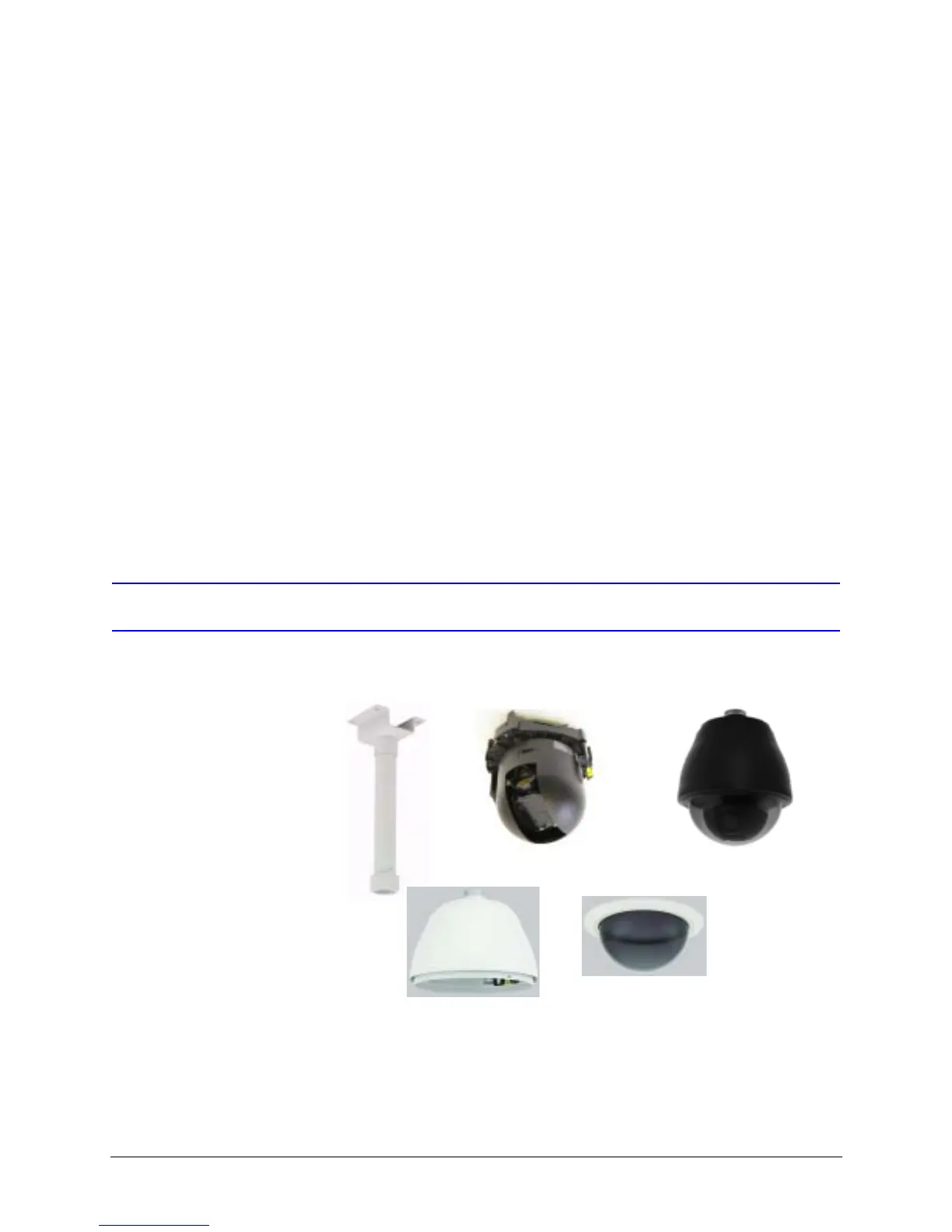

Figure 1-1 Pendant Components
Housing
Mount
Scan assembly with camera
ACUIX Dome
Lower dome with trim ring
