60
Installation

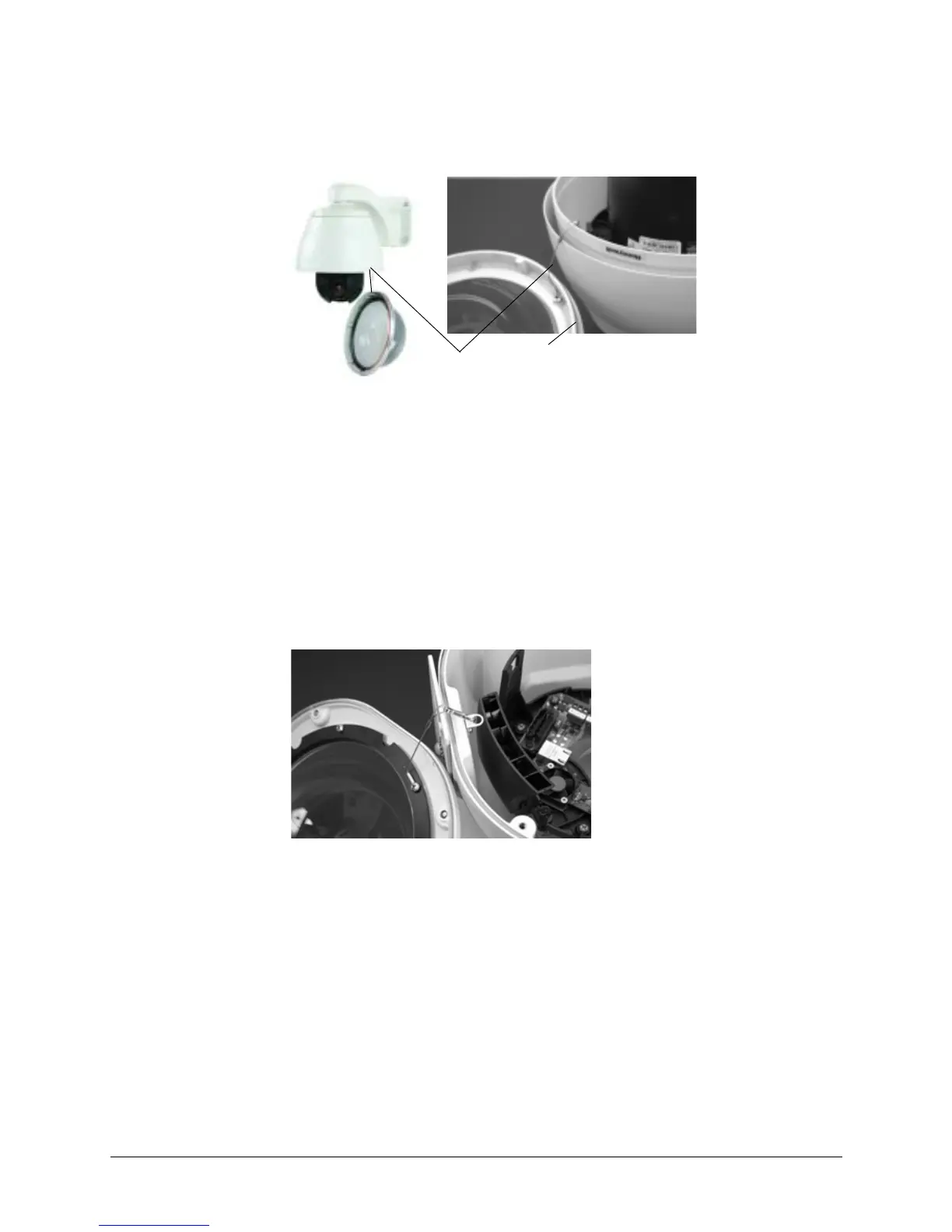

Figure 3-23 Lower Dome with Lanyard Attached to Pendant Housing
Installing the Rugged Lower Dome
1. Clip the lanyard on the housing to the mounting post on the lower dome.
2. Align the four screw holes on the lower dome with the four holes on the housing.
3. Press the lower dome into the housing and turn the security screws using the
special hex key provided.
4. If applicable, continue the next steps to configure the dome.
Figure 3-24 Lower Dome with Lanyard Attached to Rugged Housing
Lanyard
O-ring on lower dome
