ACUIX™ PTZ High Speed Analog Dome Installation and Configuration Guide
Document 800-05662 Rev C 51
06/10
Installing the In-Ceiling Housing (Hard or Dropped Ceiling)
Note The in-ceiling housing field wiring access hole is 1.039 in (26.4 mm) in
diameter and accepts ¾ in electrical fittings.
The following explains how to install into a dropped (false) ceiling or a hard ceiling. For
dropped ceiling installations, use a separately ordered ceiling plate (Honeywell part
number 517082-7130). In addition to the other items normally supplied by the installer,
the following may be required:
• Tape or plastic channel to prevent dust and material from dropping from the ceiling.
• Safety cable - a 3/32” (approximately 2.4 mm) plastic coated aircraft cable is
recommended and a looping sleeve.

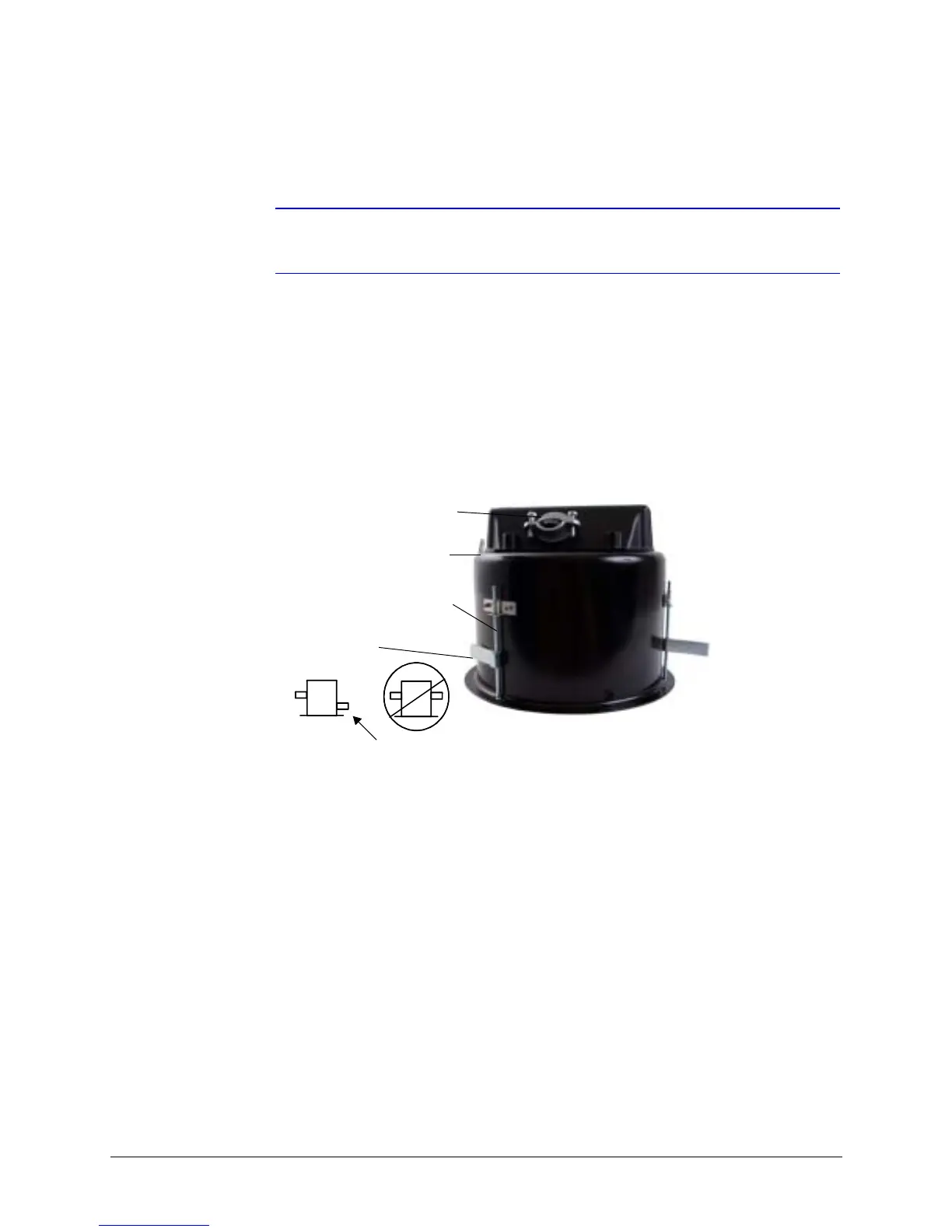

Figure 3-14 In-ceiling Housing with Wing Tab Spacing
Field wiring access hole [1. 04"
(26.44 mm) diameter]
Wing tabs (x 3)
Attach safety cable to bracket
Turning screws on wing tabs
The correct way to space wing tabs
To Next Page
