Installation

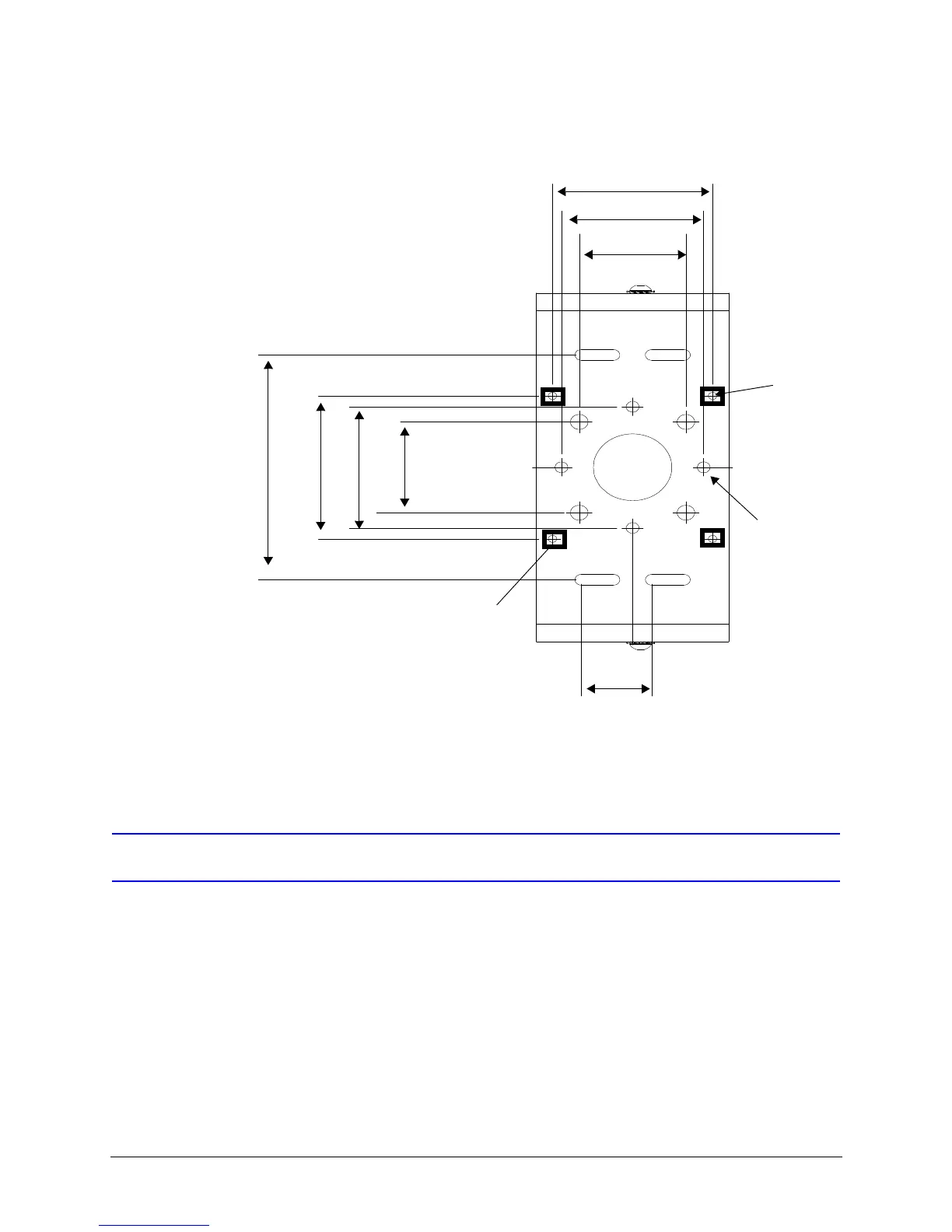

Figure 3-13 Rugged Bracket Dimensions
Step 4: Install the Housing
ACUIX Power Requirements
• Each ACUIX requires a 24 VAC ± 10% power source measured at the housing.
• For outdoor installations, ensure a 24 VAC at 2.5A power source is available.
• For indoor installations, ensure a 24 VAC at 1.9 A power source is available.
0.21" (5.3 mm)
diameter (x4)
0.31" (8 mm)
diameter (x4)
3.9" (100 mm)
3.5" (89 mm)
6.5 " (165 mm)
2.6" (67 mm)
4.1" (105 mm)
1.7" (44 mm)
2.6" (67 mm)
3.5" (89 mm)
The outer holes can be used with the
corner and pole adapter
