Performance Series Network Video Recorder User Guide
180

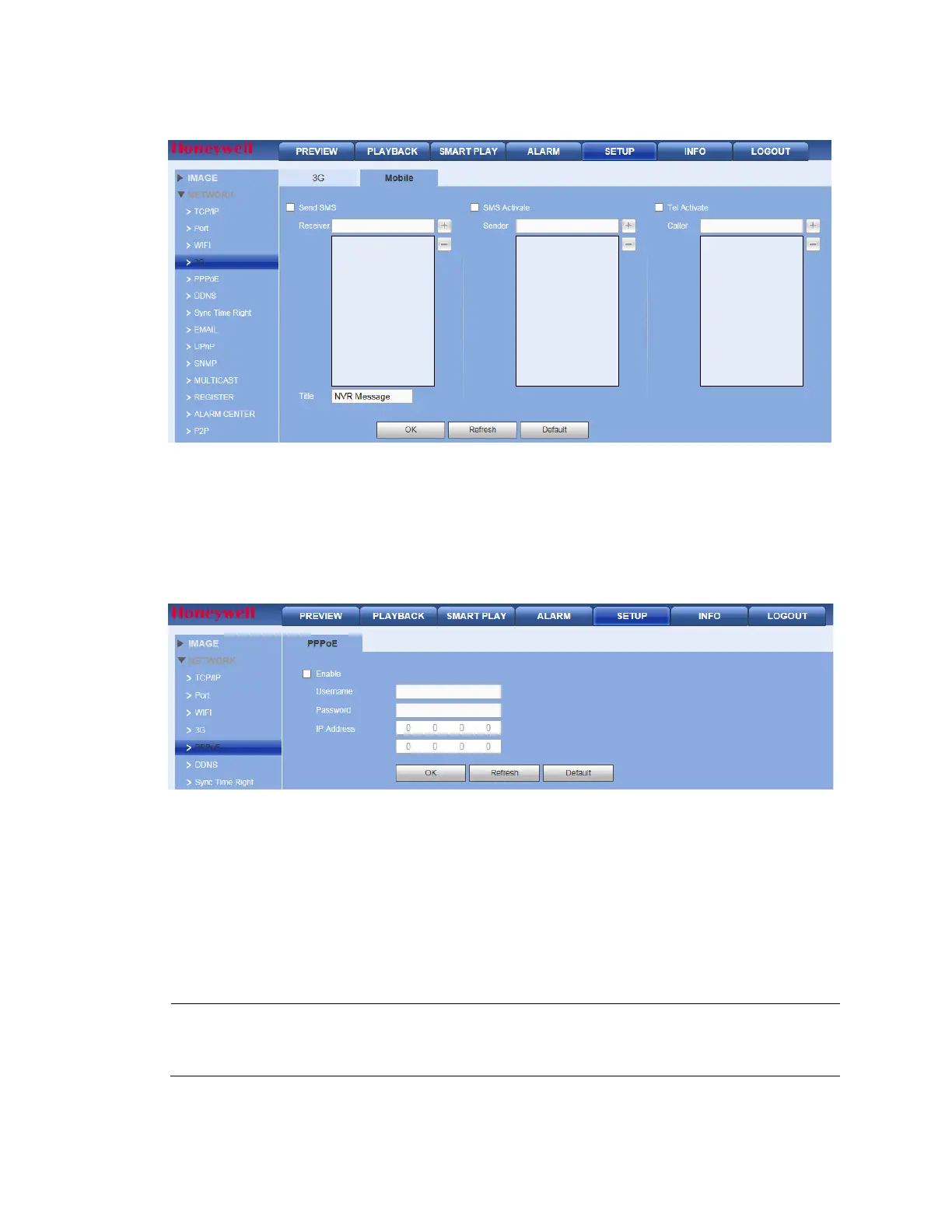

Figure 12-51 Mobile Setup Configuration Interface
Activate/deactivate 3G connected phones or mobile phones, or the phone you configured to
get alarm messages.
Configuring PPPoE
1.
Click PPPoE under NETWORK to open the PPPoE configuration interface.
Figure 12-52 PPPoE Configuration Interface
2.
Enable the PPPoE function.
3.
Enter the PPPoE User name and Password, which you receive from your Internet Service
Provider (ISP).
4.
Click OK to save the changes.
5.
Reboot the device to activate these changes.
After rebooting, the device should connect to the Internet through the PPPoE
connection. The IP address is found in the WAN from the IP address column.
Note
You need to use the previous IP address in the LAN to log into the device. Go to
the IP address field, which is found in the device’s current device information.
You can access the NVR through this new address.
