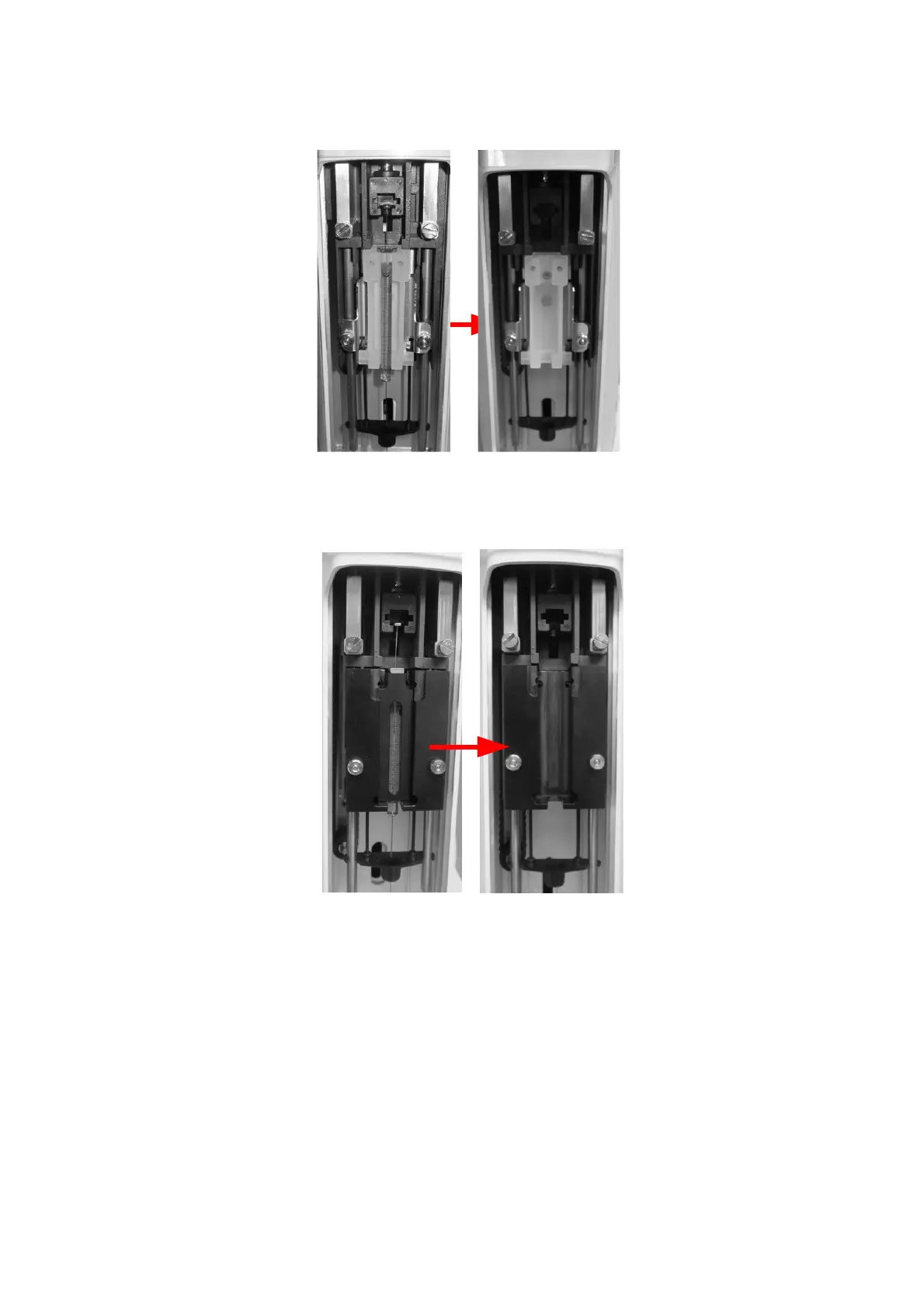

Figure 116: Old Syringe removal
Figure 117: Old Syringe removal (syringe with syringeID)
e) Place the new syringe into its holder: insert the needle through the intermediate needle
guide and then into the vial locator; insert the syringe body into the holder and lastly
position the plunger into its lodging as shown in the figure below. If the syringe mount the
RFID tag of SyringeID, pay attention to orientate correctly it (see paragraph 11 “Appendix
A – Glossary). For special syringe installation (for example: syringe with O-ring and
