HT2800T_en_c.doc Page 106 of 275
syringe with reinforcement) see paragraph 4.2.3.1 “Special syringe installation” before
proceeding.

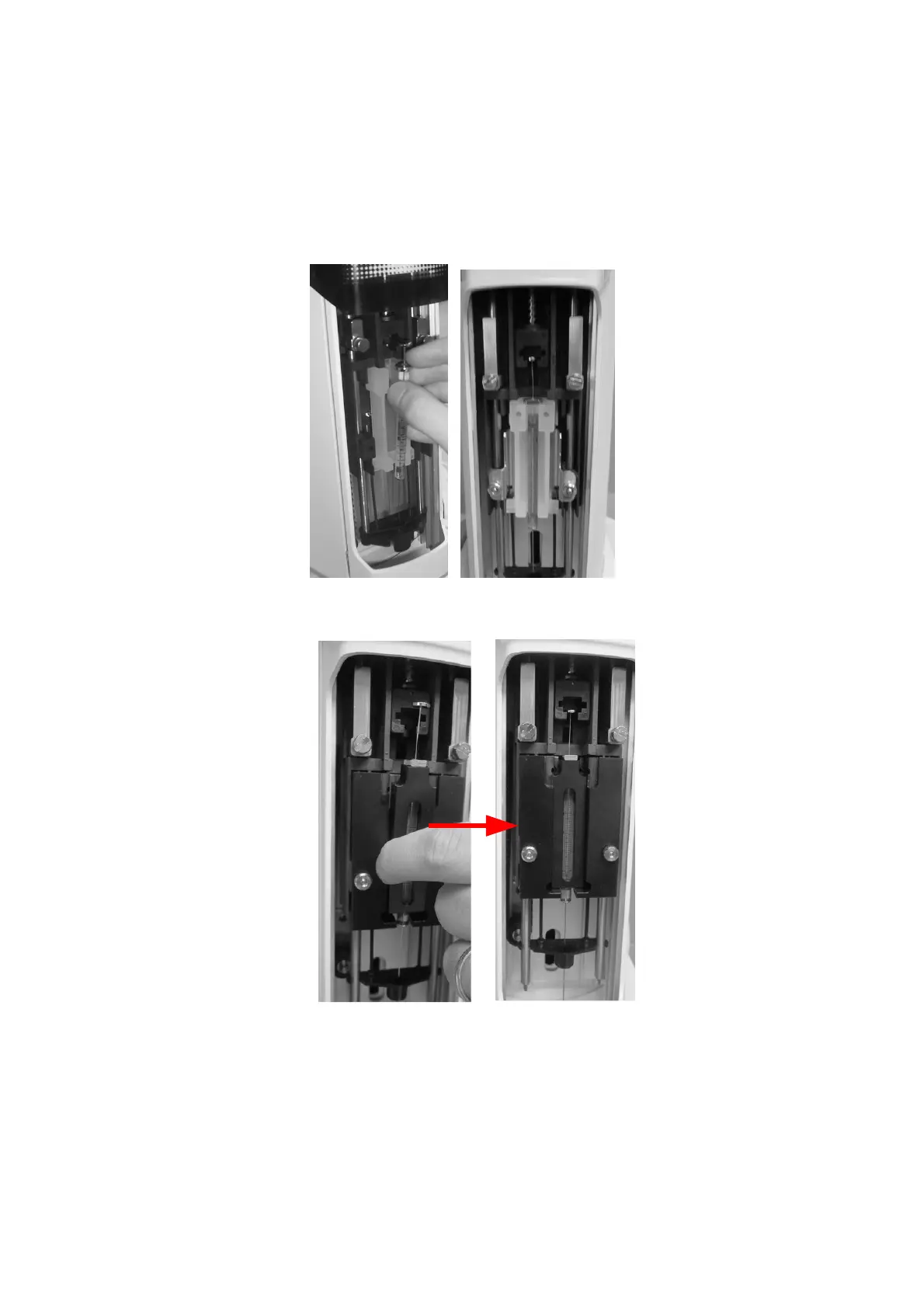

Figure 118: Syringe positioning
Figure 119: Syringe with syringeID positioning
f) Reposition the syringe locker tightening the two screws carefully (during the
screwing, hold the syringe locker pressed down).
