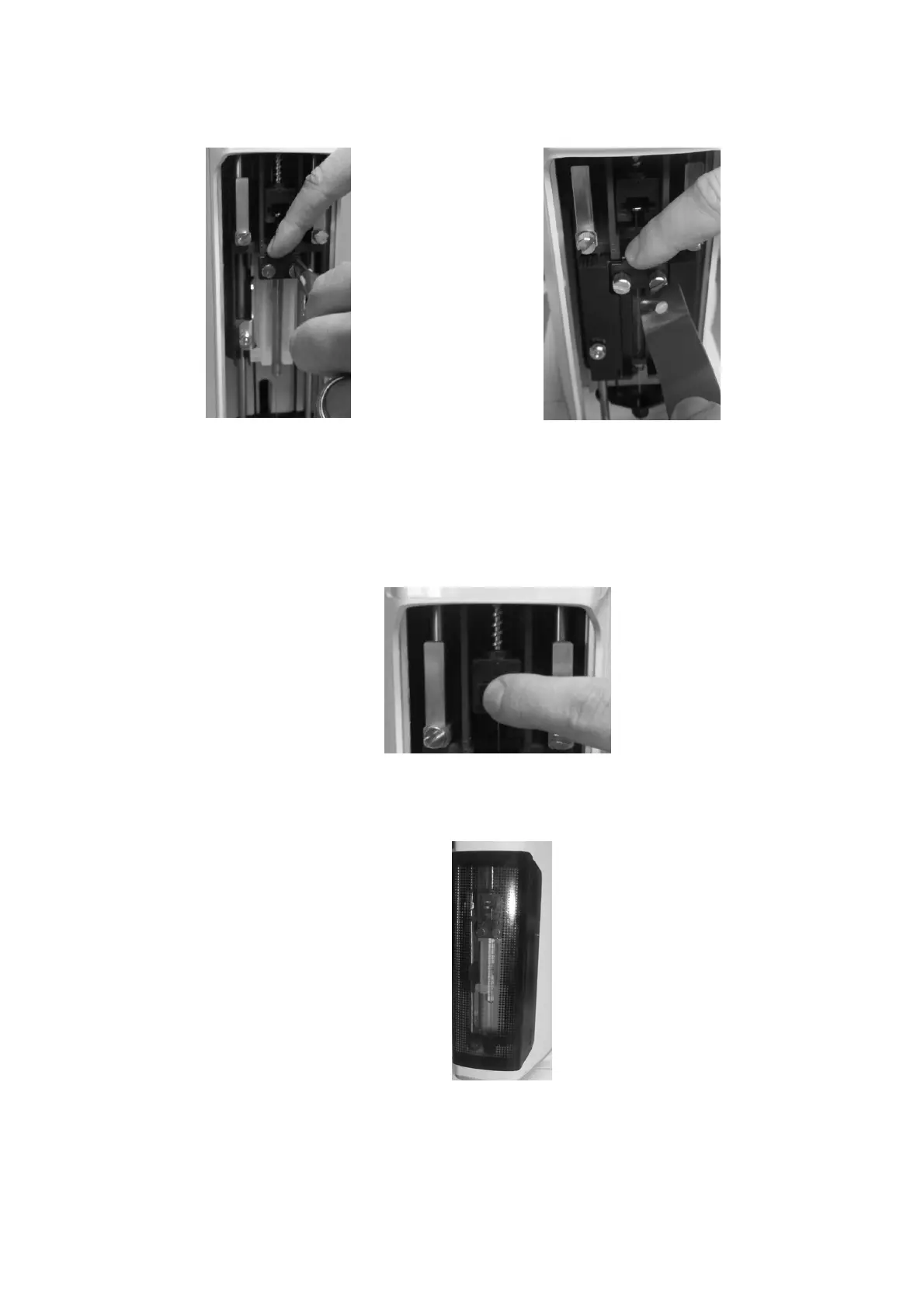

Figure 120: Syringe locker positioning Figure 121: Syringe locker positioning
(syringeID)
g) Reinsert the piston locker ensuring that the appropriate face is used (if in doubt
see 12 “Appendix B – Consumables“).
Figure 122: Plunger locker positioning
h) Close the Syringe location by pulling the lid down.
