HT2800T_en_c.doc Page 113 of 275

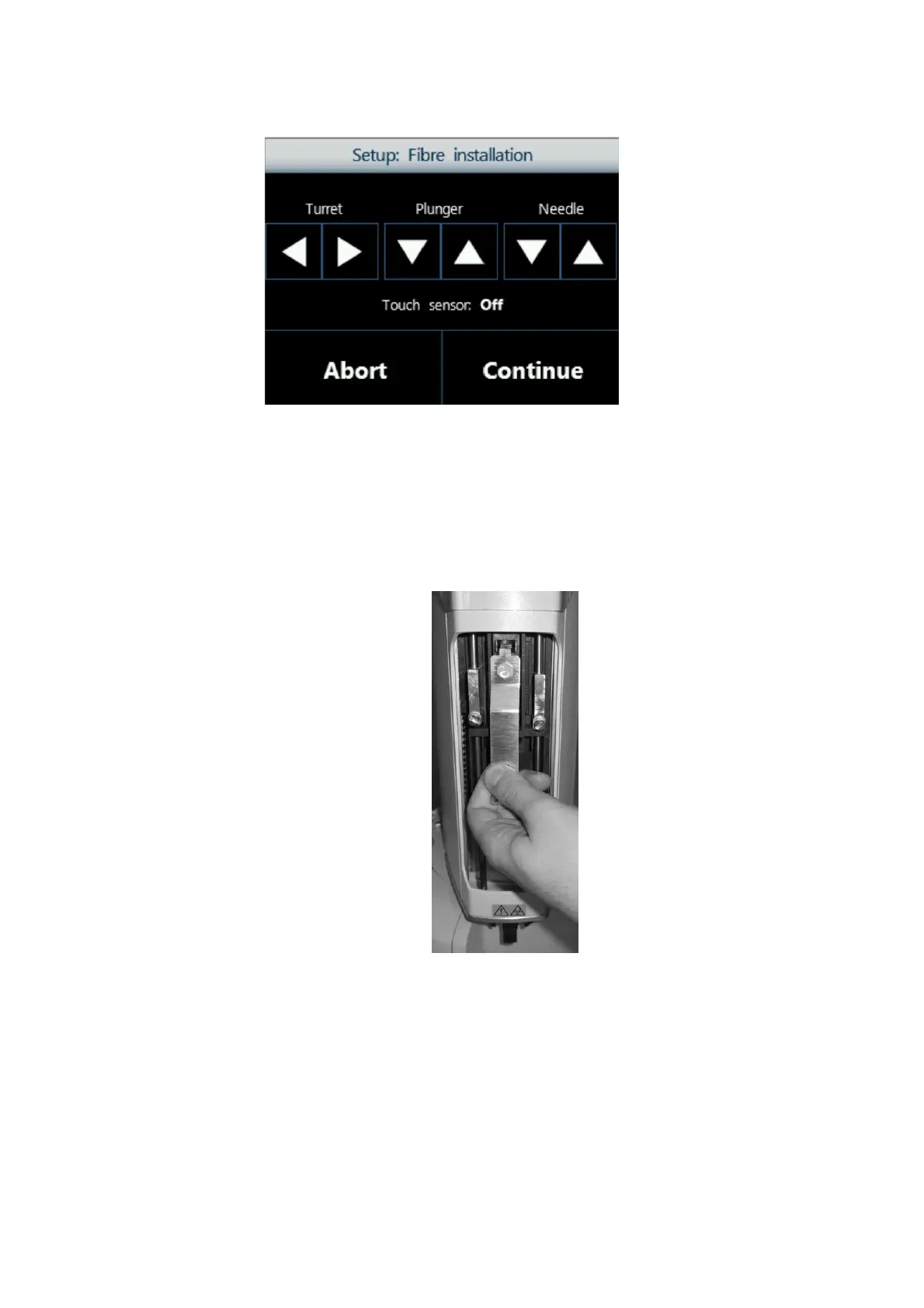

Figure 131: Fibre Installation screen
5. Follow this procedure:
a) Open the syringe location by pushing the sliding lid up.
b) Remove the plunger locker pulling it out using the syringe pointer shown in the
Figure 31.
Figure 132: Plunger locker removing
