2) “Remove and install new syringe” screen:
a) Remove the syringe warmer assembly: remove the plunger locker by pulling it out
using the syringe pointer (figure below - a and b); remove the retaining nuts as shown
in the figure below (figure below - c and d) and finally remove the syringe warmer
assembly with care, as shown in the figure below (figure below - e and f).

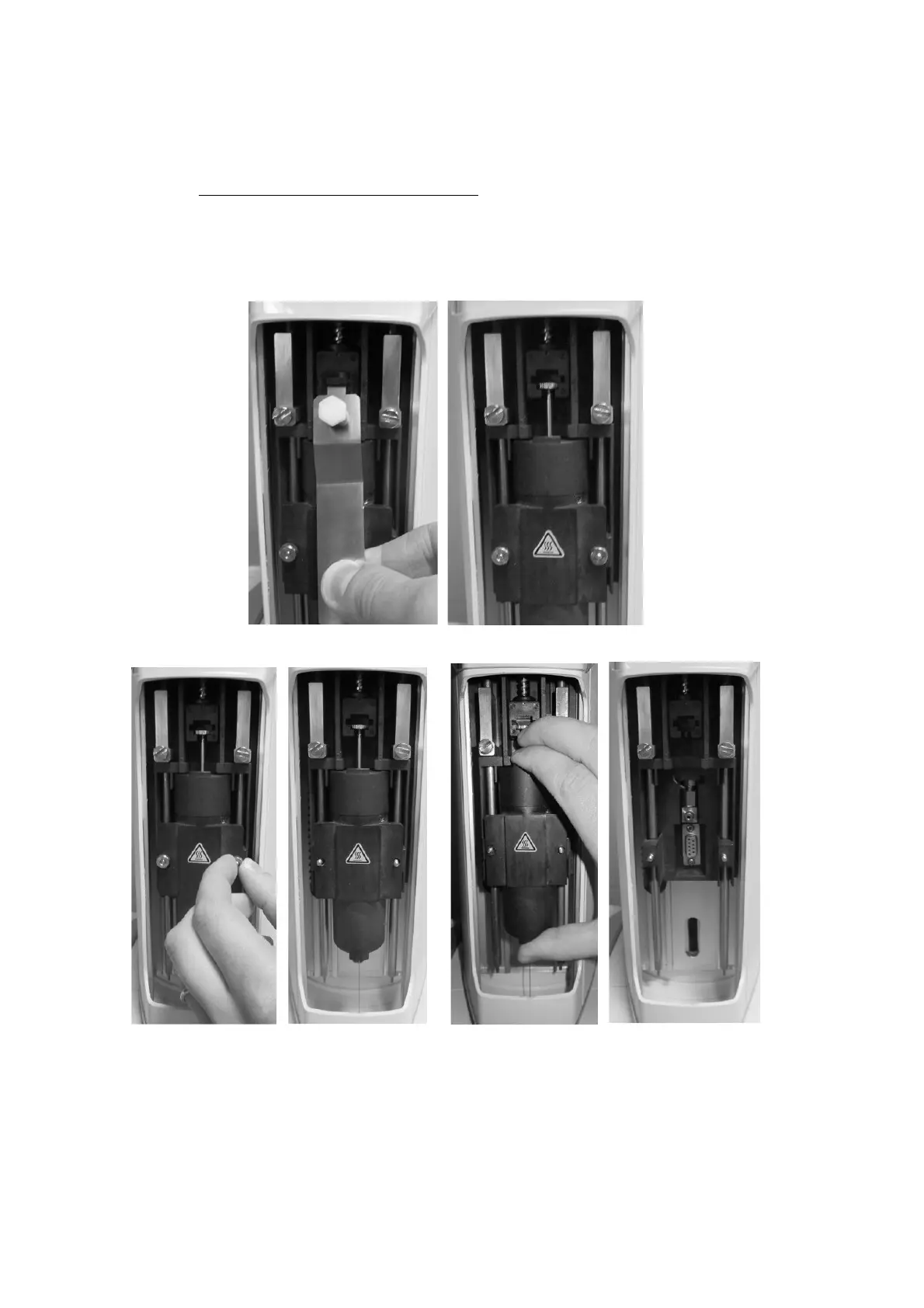

Figure 146: Syringe warmer assembly removal
