HT2800T_en_c.doc Page 178 of 275
b) Install the syringe holder for liquid configuration. Mount the liquid syringe-holder by
aligning the holes of the syringe holder to the threaded inserts (see figure below - a), and
anchoring the intermediate needle guide. Finally fix it with the nuts keeping the holder
pressed upwards (see figure below - b):
a

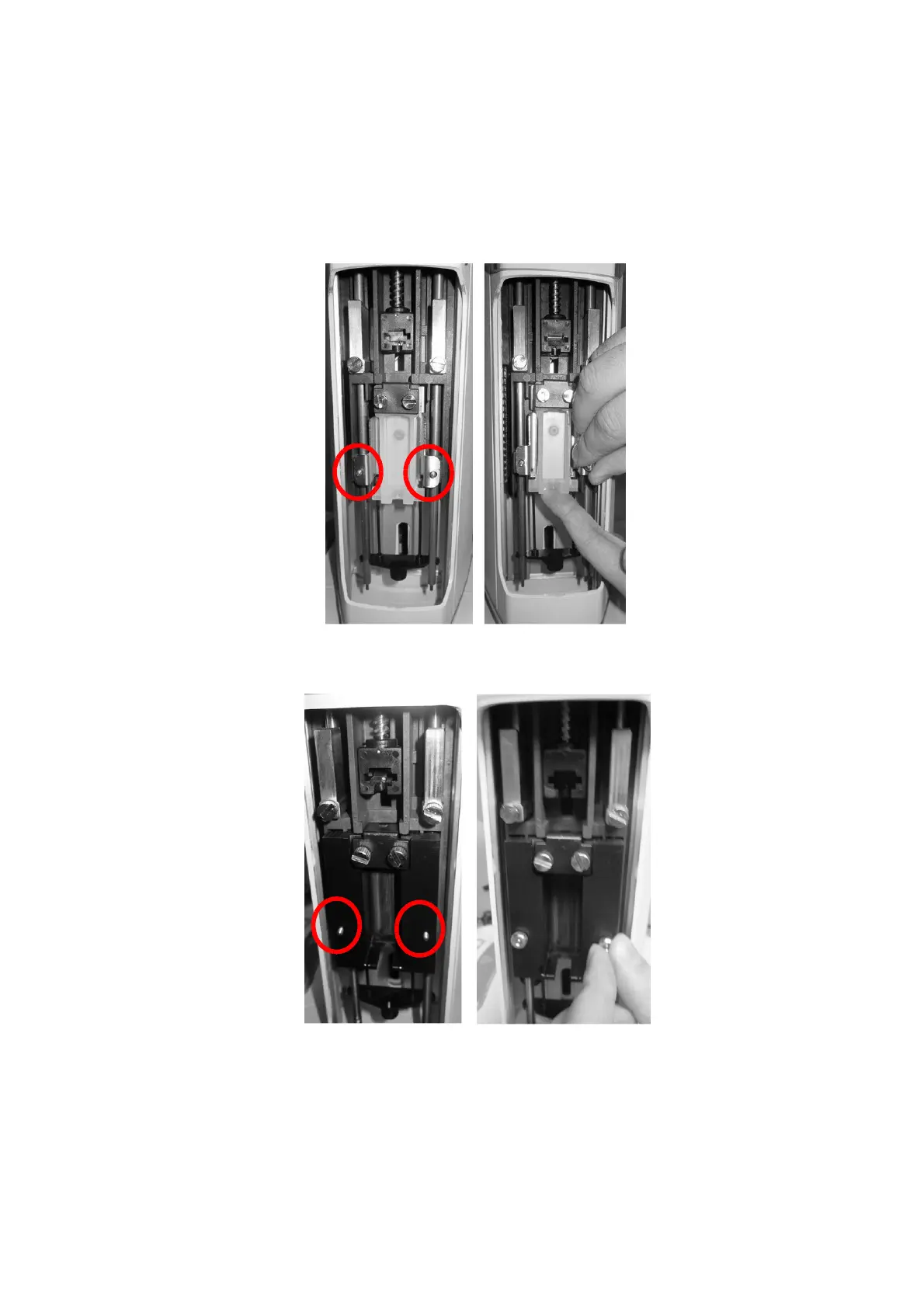

Figure 147: Liquid syringe holder mounting
Figure 148: Liquid syringe holder mounting (syringeID system purchased and enabled)
