c) Install the syringe warmer assembly. Fix the syringe warmer assembly by aligning the
holes of the syringe warmer assembly to the threaded inserts (figure below - a), then fix it
with the nuts keeping the warmer pressed upwards (figure below - b) and finally install
the plunger locker (figure below - c) ensuring that the B side (see 2.1.2.1) is faced
d
ownward.

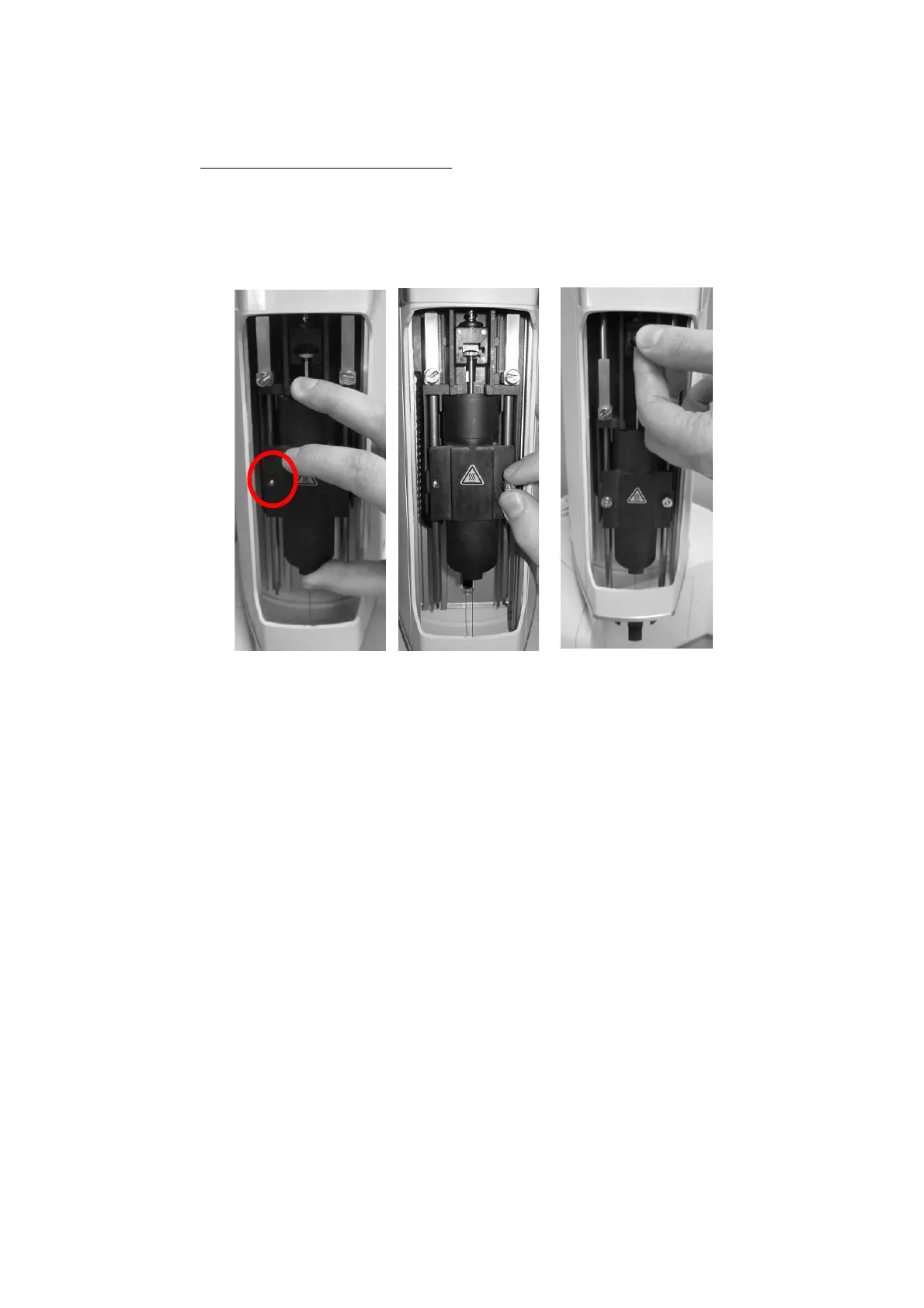

Figure 166: Syringe warmer assembly mounting
d) Tap “CONTINUE”.
3) “Mount vial locator” screen: install the vial locator for Headspace/SPME using the
supplied allen key to fix the fixing screws (see paragraph 2.3 “Tool kit“) and tap
“CONTINUE”.
