Figure 181: SPME Fiber holder removal

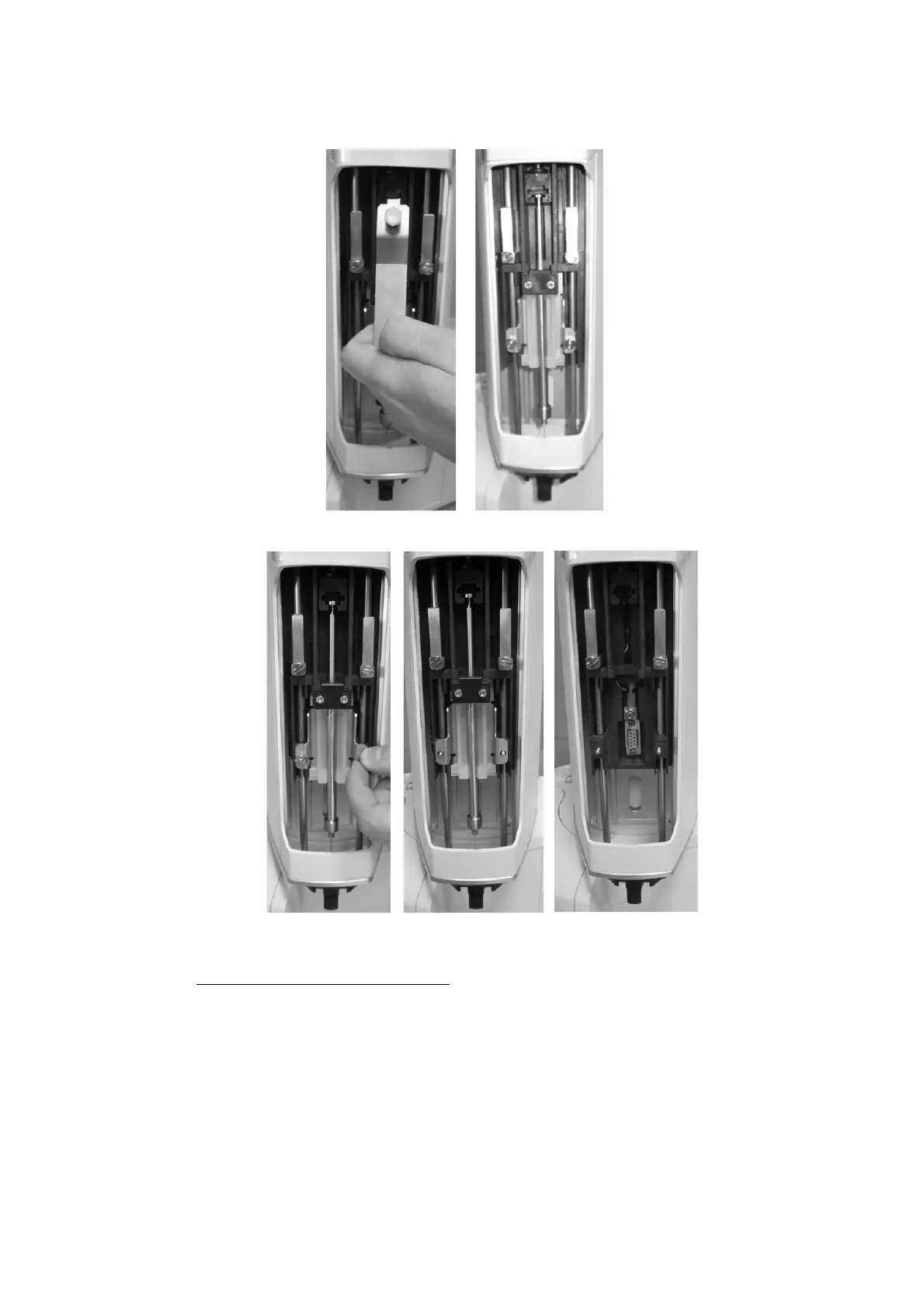

b) Install the syringe warmer assembly. Fix the syringe warmer assembly by aligning the
holes of the syringe warmer assembly to the threaded inserts (figure below - a and b),
then fix it with the nuts keeping the warmer pressed upwards (figure below - c) and
finally install the plunger locker (figure below - d), ensuring that the B side (see
2
.1.2.1) is faced downward.
e
d
c
b
a
