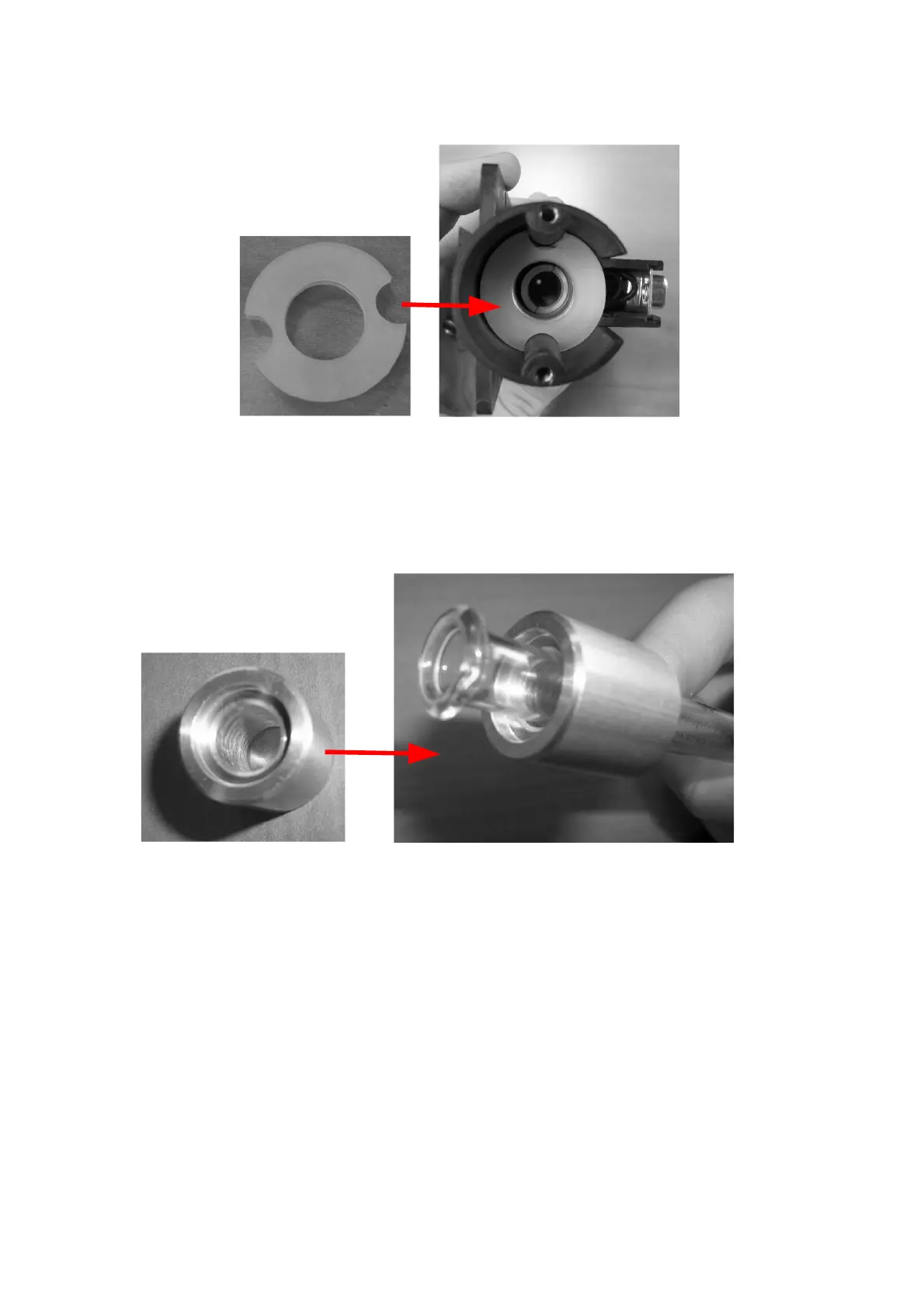

Figure 194: Insulating gasket positioning
8) Slide (from the needle side) the upper spacer (number 7 in figure below) inside
the syringe barrel (number 8 in figure below). Be careful to insert it in the correct
orientation.
Figure 195: Upper spacer positioning
9) Also insert (sliding from the needle side) the syringe holder (number 6 in figure below).
It should offer a little resistance during insertion.
