12.2.2.1 Vial features and dimensions
The autosampler can use clear or amber glass sample vials with snap, crimp or screw cap. Amber
glass vials can be used for light-sensitive samples. Snap cap are recommended because they
can't be over-screwed (as per screw cap) or incorrectly crimped.

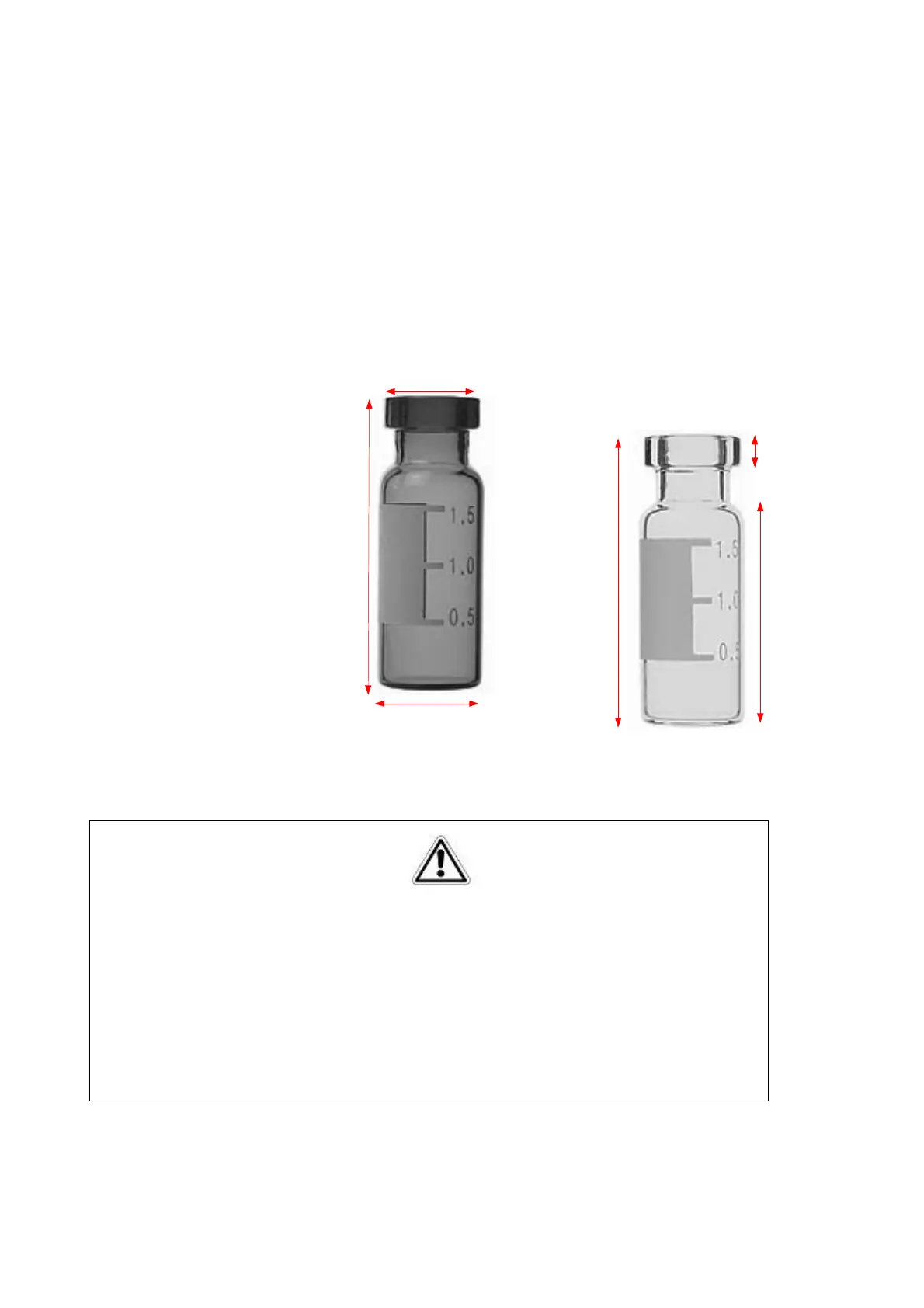

The following figure shows the dimensions of the vials that can be used with the autosampler.
These dimensions do not make up a complete set of specifications.
Body Diameter (BD) = 11.7 ± 0.2
Cap Diameter (CD) = BD × 1.03 maximum
CD
(All dimensions in millimeters)
3.7 minimum
33.5 ± 1.5
vial plus cap height
32 ± 0.5
Vial ithout cap height
25
Minimum body
height
Maximum height of a capped vial Crimp cap sample vial
Figure 217: Sample vial dimensions
Warning
Correct sample vial dimensions are essential for proper operation. Vials and labels that do
not comply with these guidelines should cause autosampler errors. Service calls and repairs
found to be due to vials and microvials that do not comply with these guidelines are not
covered under warranty or the service contract.
