HT2800T_en_c.doc Page 31 of 275
The syringe location contains the following parts:
1. Syringe holder
2. Needle height regulator (right block)
3. Plunger holder with plunger locker
4. Syringe locker
5. Safety lock (left block)
6. Intermediate needle guide
7. Vial locator
The syringe holder is shown in detail in the following figure:

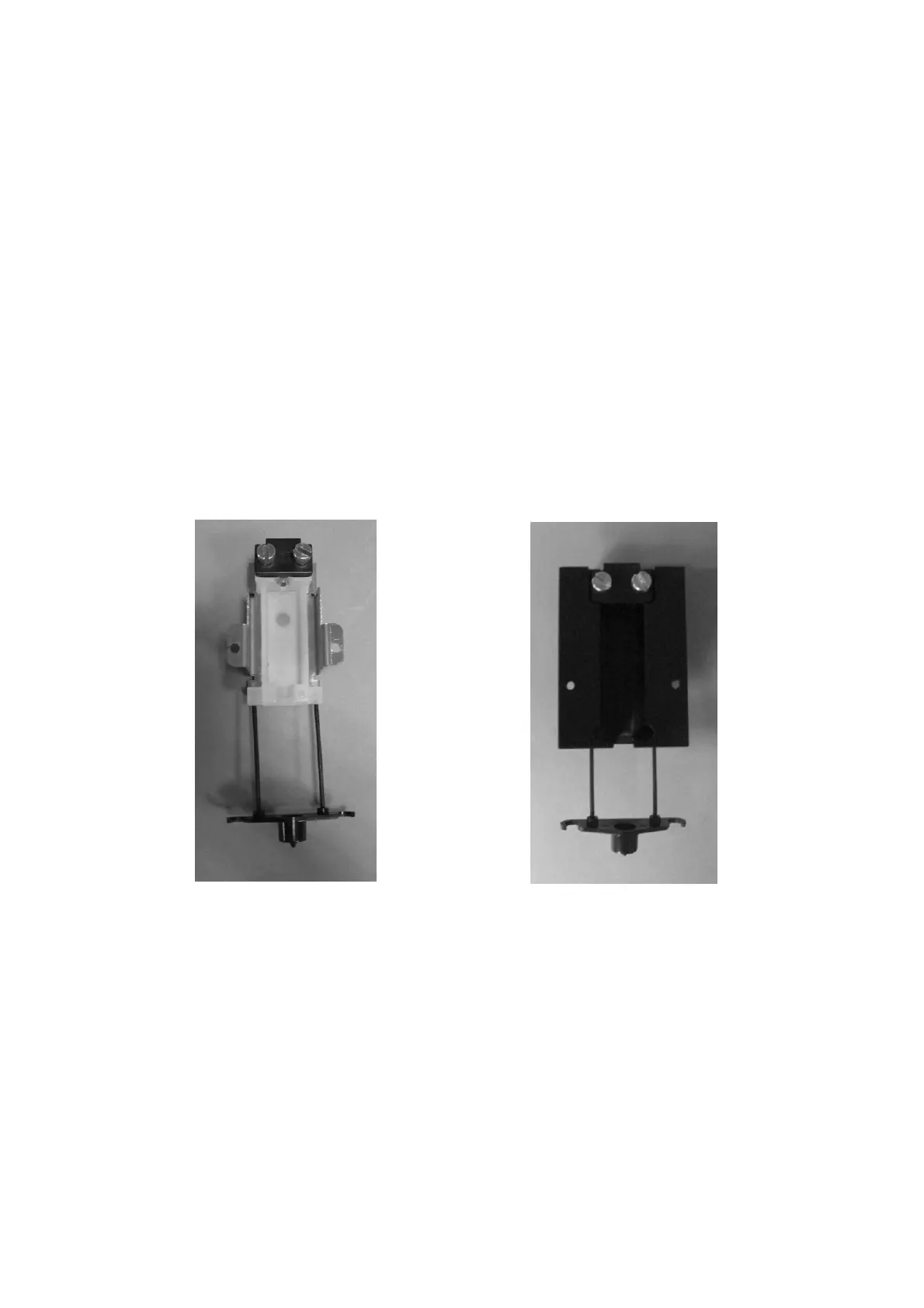

Figure 18: Syringe holder (liquid
mode)
Figure 19: Syringe holder (liquid mode with
syringeID system installed)
