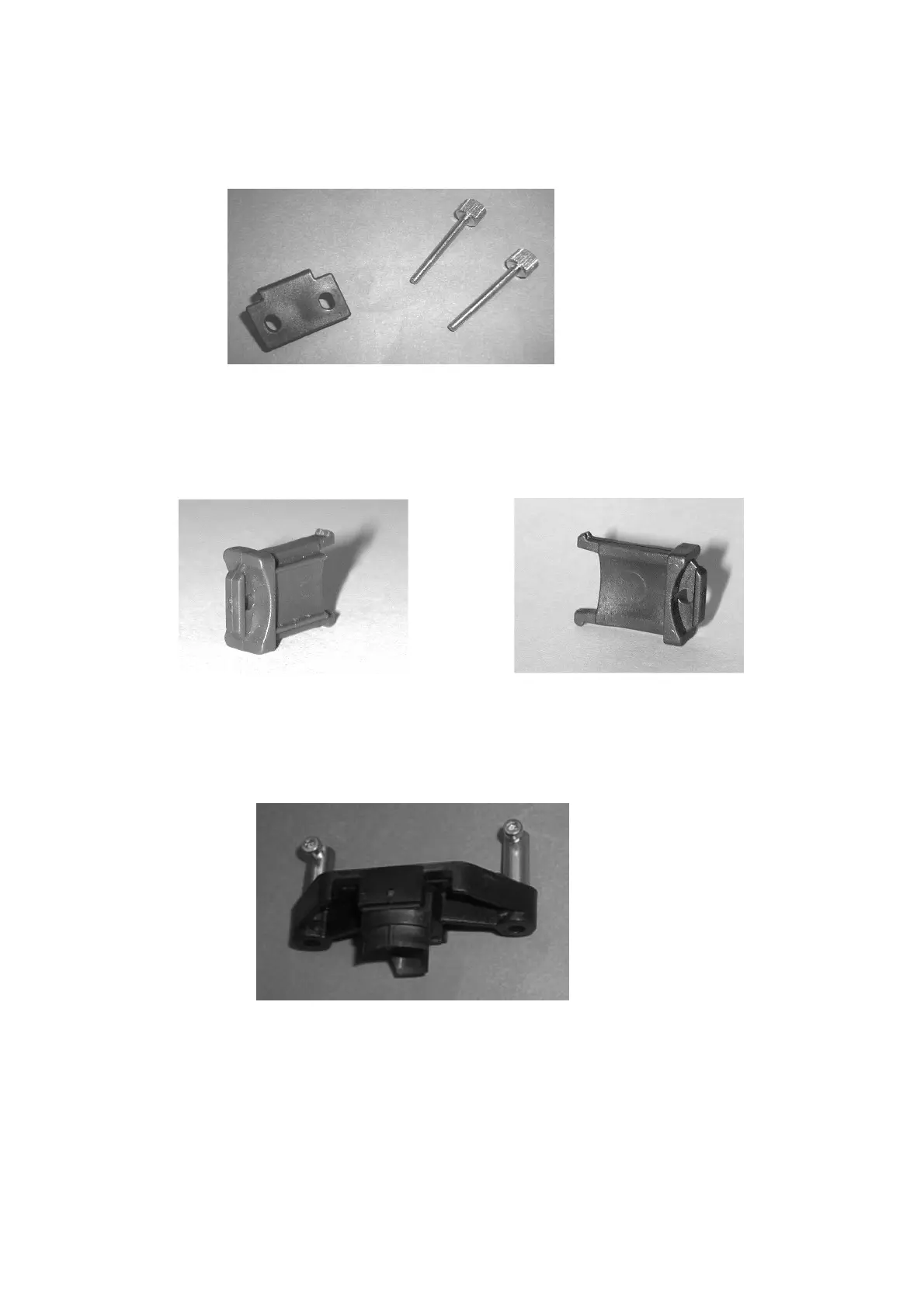

The syringe locker and its finger screws are shown in detail in the following figure:
Figure 20: Syringe locker (liquid mode)
The plunger locker has two different faces to locate different kinds of syringe pistons. These faces
are indicated as “S side” and “B side”. When “S side” is required, please have “S side” facing down;
when “B side” is required, please have “B side” facing down.
Figure
21
: “S” side of the plunger locker
Figure 22: “B” side of the syringe locker
The standard vial locator for liquid mode is shown in the following picture:
Figure 23: Standard vial locator (liquid mode)
