HT2800T_en_c.doc Page 33 of 275
This vial locator can be removed and replaced with the vial locator with gripper shown in the picture
below:

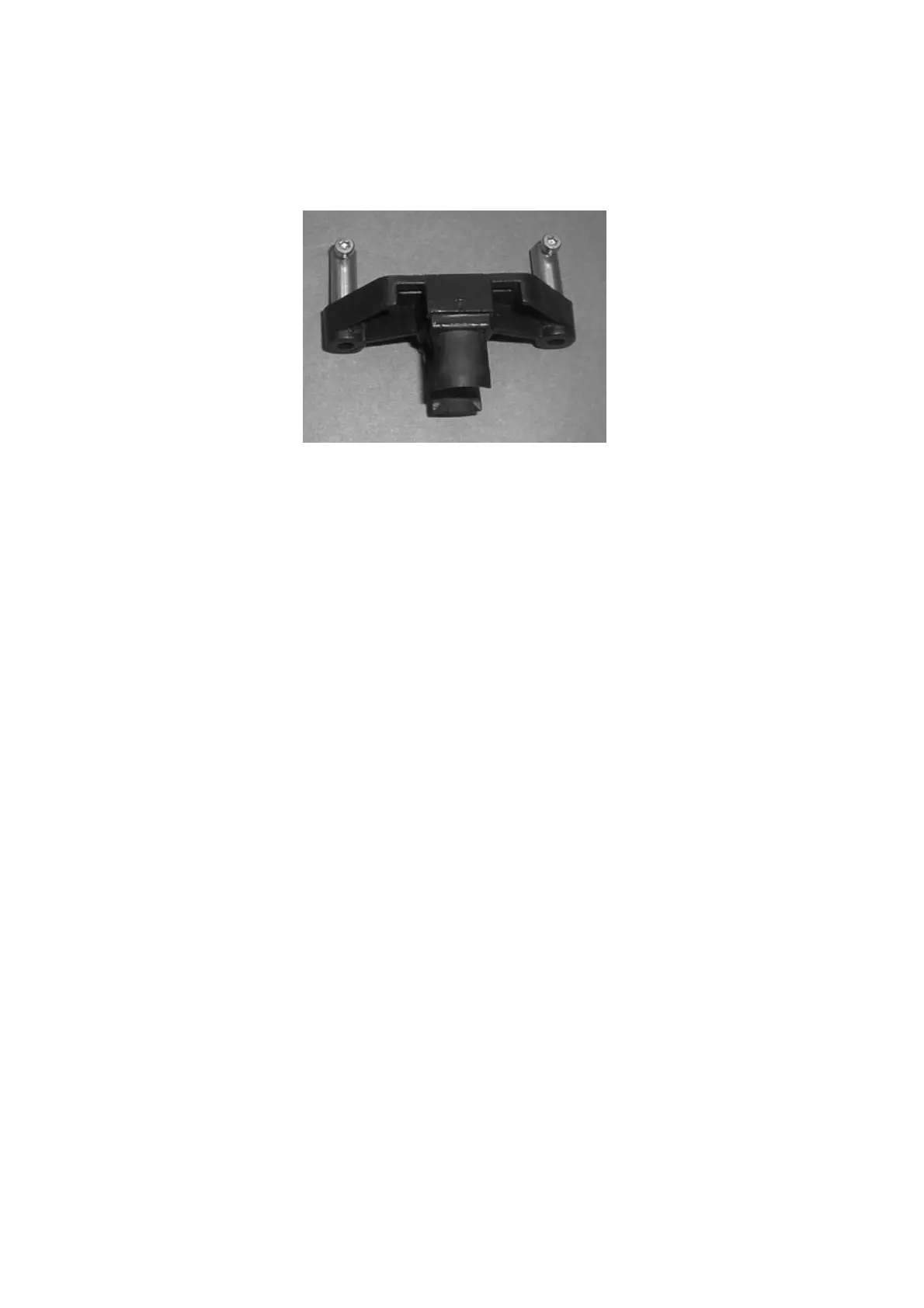

Figure 24: Vial locator with gripper
This vial locator must be installed in case that you want to enable Bar code reader option (0
“Select “Exit” to exit from this screen and return to the “Setup Configuration”” screen (see
paragraph 4.2.6 “Setup: Configuration”):
Setup configuration: BCR”).
2.1.2.3 Fiber holder location for SPME Mode
The Fiber holder location contains the following parts:
