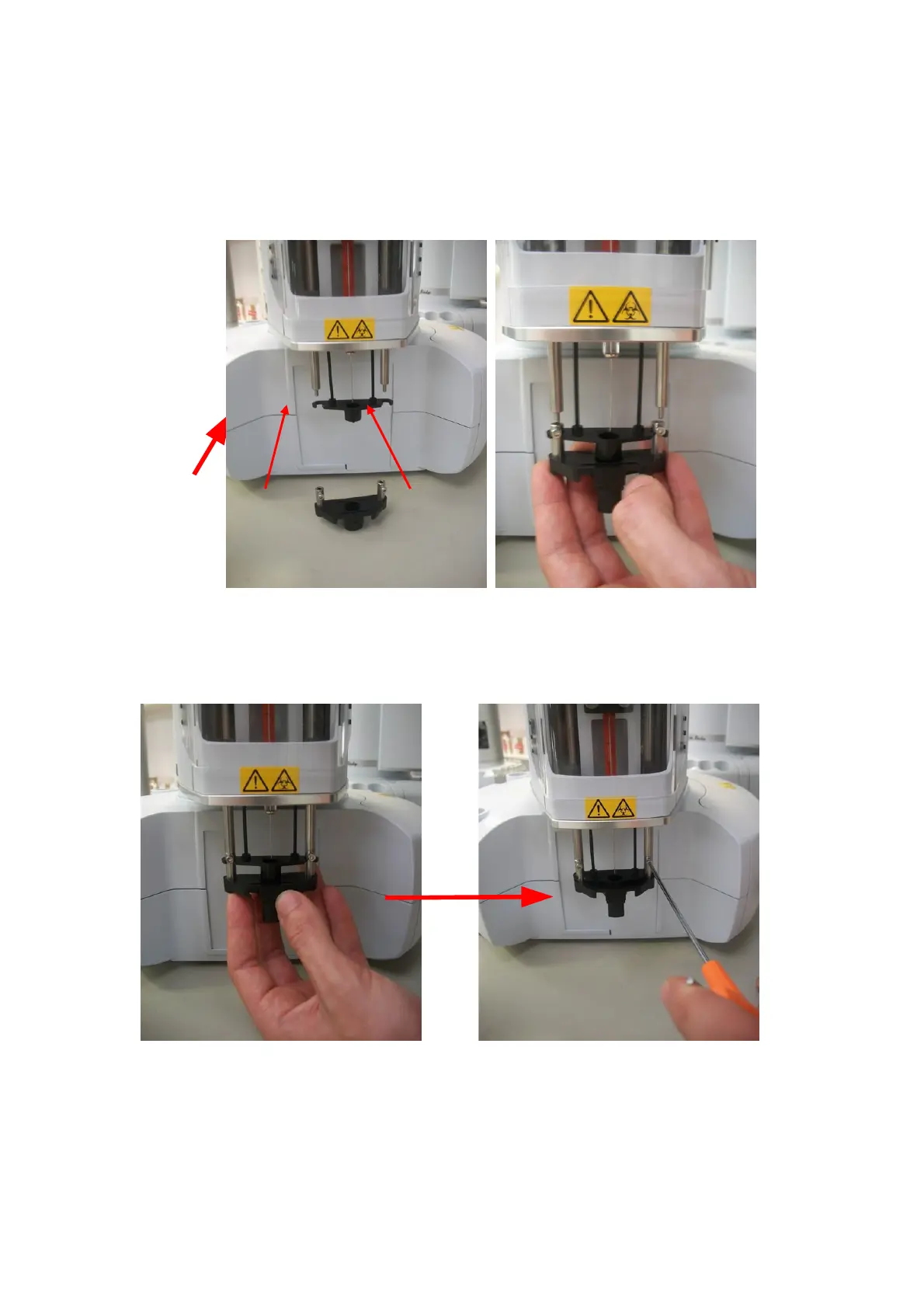

10) Place the new vial locator. Puts the rods of the vial locator into the holes of the needle guide
(indicated with the red arrows in the picture below):
Figure 90: Vial locator replacing step 1
11) Then fit and fix the rods of the vial locator using the allen key as shown in the picture below:
Figure 91: Vial locator replacing step 2
