To upload files to Member-1, Member-2, and Member-3 or download files from them, you can

set up an FTP connection between devices out of the cluster and member switches in NAT or

non-NAT mode.

NOTE

In this configuration example where the Non-NAT mode is adopted, Member-3 accesses the FTP server

(2.0.0.1/8) out of the cluster and devices out of the cluster access the FTP server (Member-2) in the cluster.

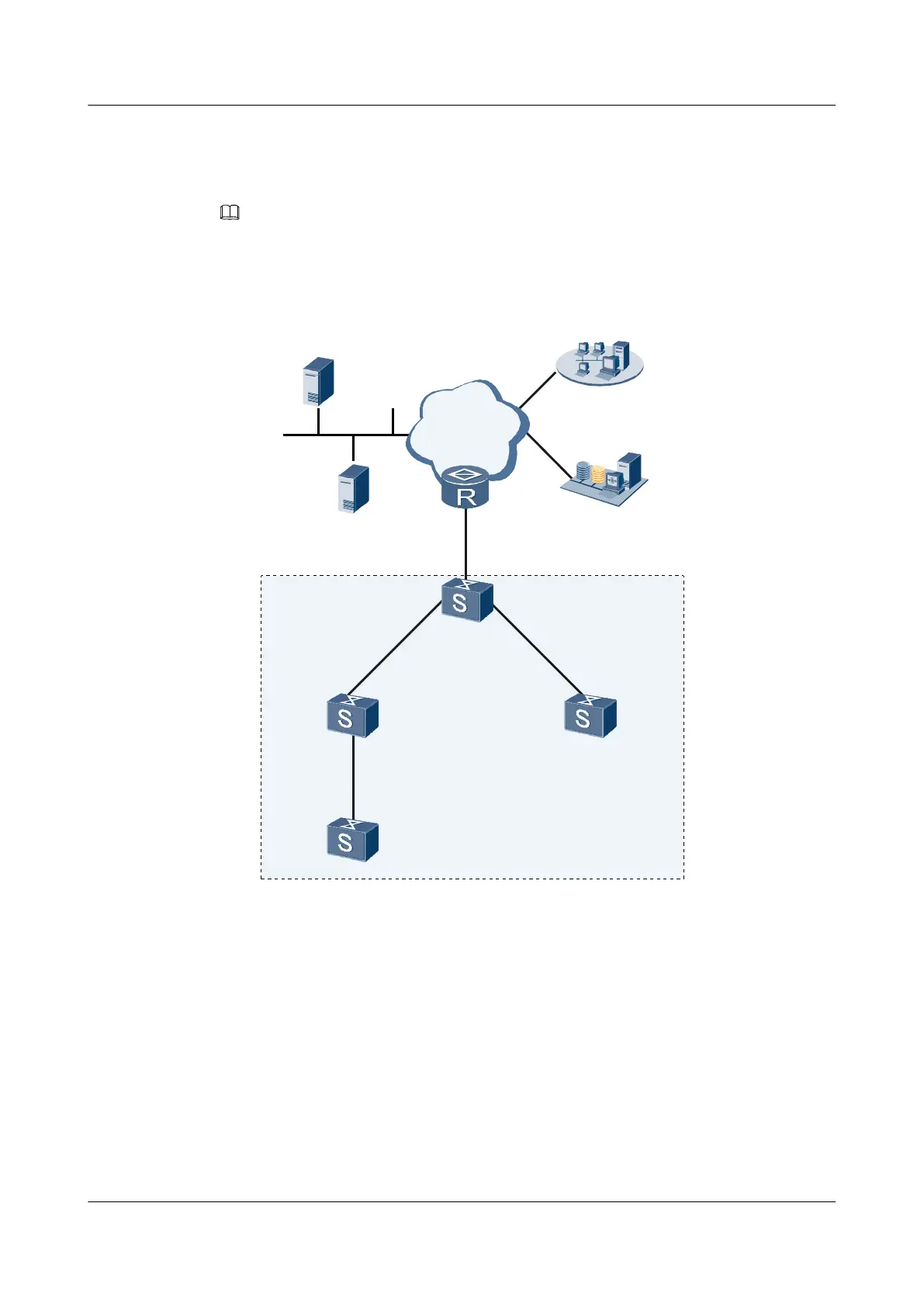

Figure 3-5 Networking diagram of configuring the interconnection of FTP servers and devices

in and out of the HGMP cluster (in non-NAT mode)

IP/MPLS

core

......

FTP Server

2.0.0.1/8

SFTP Server

2.0.0.2/8

NM station

3.0.0.1/8

Log station

4.0.0.1/8

Administrator-1

10.0.0.1/8

Member-1

Member-2

Member-3

10.0.0.4/8

GE0/0/1 GE0/0/2

GE0/0/1

GE0/0/2

GE0/0/1

Cluster

GE0/0/3

GE0/0/1

1.0.0.2/8

Device MAC Address Device MAC Address

Administrator-1 0001-0001-0001 Member-1 0002-0002-0002

Member-2 0003-0003-0003 Member-3 0004-0004-0004

Configuration Roadmap

The configuration roadmap is as follows:
