port hybrid untagged vlan 20
#
return
l Configuration file of Switch C
#
sysname SwitchC
#
FTP server enable
#
vlan batch 20
#
interface Vlanif20
ip address 10.2.1.2 255.255.255.0
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 20
port hybrid untagged vlan 20
#
aaa
local-user user1 password cipher 3MQ*TZ,O3KCQ=^Q`MAF4<1!!
local-user user1 service-type ftp
local-user user1 ftp-directory flash:
#
ip route-static 10.1.1.0 255.255.255.0 10.2.1.1
#
return
6.27.4 Example for Configuring the HTTP Test
Networking Requirements
As shown in Figure 6-6, Switch is connected to the HTTP server through a WAN.

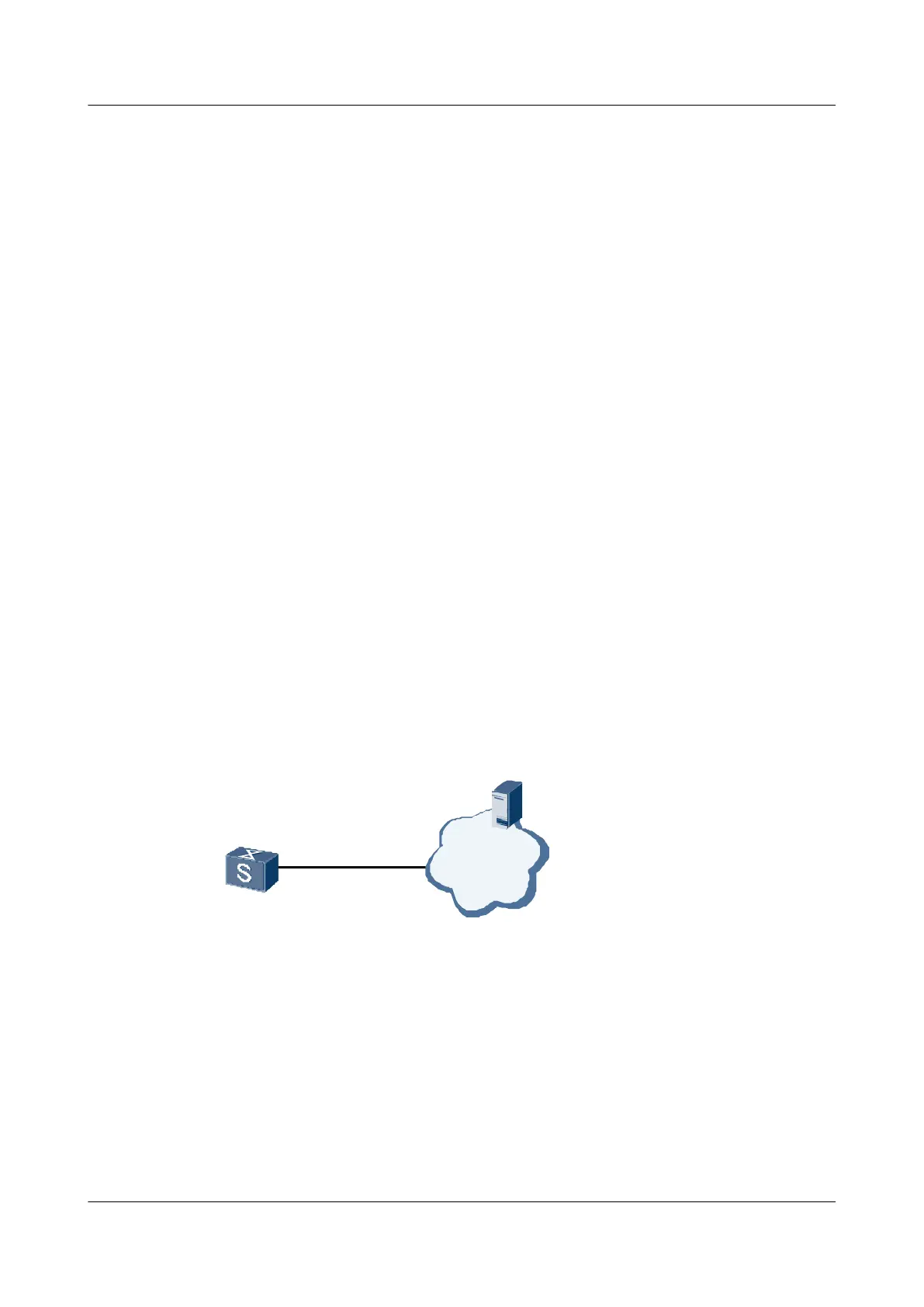

Figure 6-6 Networking diagram for configuring the HTTP test
Switch
GE0/0/1
VLANIF10
10.1.1.1/24
10.2.1.1/24
HTTP Server
IP
Network
10.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure the Switch as the NQA client.
2. Create and perform the HTTP test on the Switch to check whether the a connection between
the Switch and the HTTP server can be set up and to check the time for transferring a file
between them.
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 6 NQA Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
341
