Configuration Files
l Configuration file of Switch A
#
sysname SwitchA
#
vlan batch 10
#
interface Vlanif10
ip address 10.1.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 10
port hybrid untagged vlan 10
#
nqa test-instance admin icmp
test-type icmp
destination-address ipv4 10.1.1.2
#
return
l Configuration file of Switch B
#
sysname SwitchB
#
vlan batch 10
#
interface Vlanif10
ip address 10.1.1.2 255.255.255.0
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 10
port hybrid untagged vlan 10
#
return
6.27.2 Example for Configuring the FTP Download Test
Networking Requirements
As shown in Figure 6-4:
l Switch B functions as the FTP server.
l A user with the name user1 and the password hello intends to log in to the FTP server to
download the test.txt file.

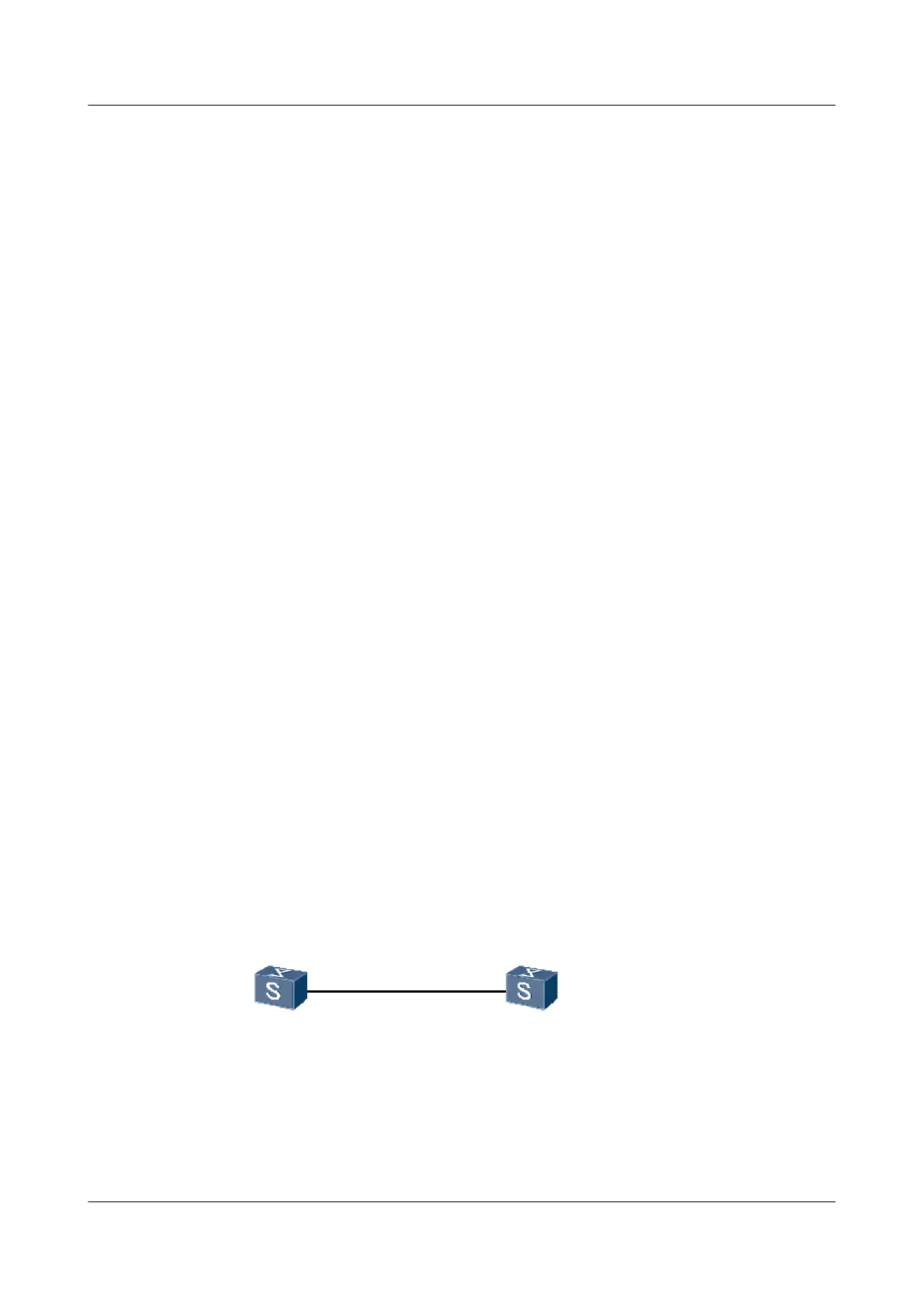

Figure 6-4 Networking diagram for configuring the FTP download test
SwitchA SwitchB
GE0/0/1
VLANIF10
10.1.1.1/24
GE0/0/1
VLANIF10
10.1.1.2/24
FTP Client
Configuration Roadmap
The configuration roadmap is as follows:
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 6 NQA Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
336
