l Configuration file of Switch B
#
sysname SwitchB
vlan batch 100 110
#
interface Vlanif100
ip address 10.1.1.2 255.255.255.0
#
interface Vlanif110
ip address 10.2.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 100
port hybrid untagged vlan 100
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 110
port hybrid untagged vlan 110
#
return
l Configuration file of Switch C
#
sysname SwitchC
#
vlan batch 110
#
interface Vlanif110
ip address 10.2.1.2 255.255.255.0
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 110
port hybrid untagged vlan 110
#
nqa-server udpecho 10.2.1.2 6000
#
ip route-static 10.1.1.0 255.255.255.0 10.2.1.1
#
return
6.27.10 Example for Configuring the Jitter Test
Networking Requirements
As shown in Figure 6-12, the NQA Jitter test needs to be used to obtain the jitter time of
transmitting a packet from Switch A to Switch C. Switch A and Switch C synchronize the clock
from Switch B so that the test precision is improved.
NOTE
For information about clock synchronization, see "NTP" in the Quidway S5700 Series Ethernet Switches
Feature Description - Network Management.

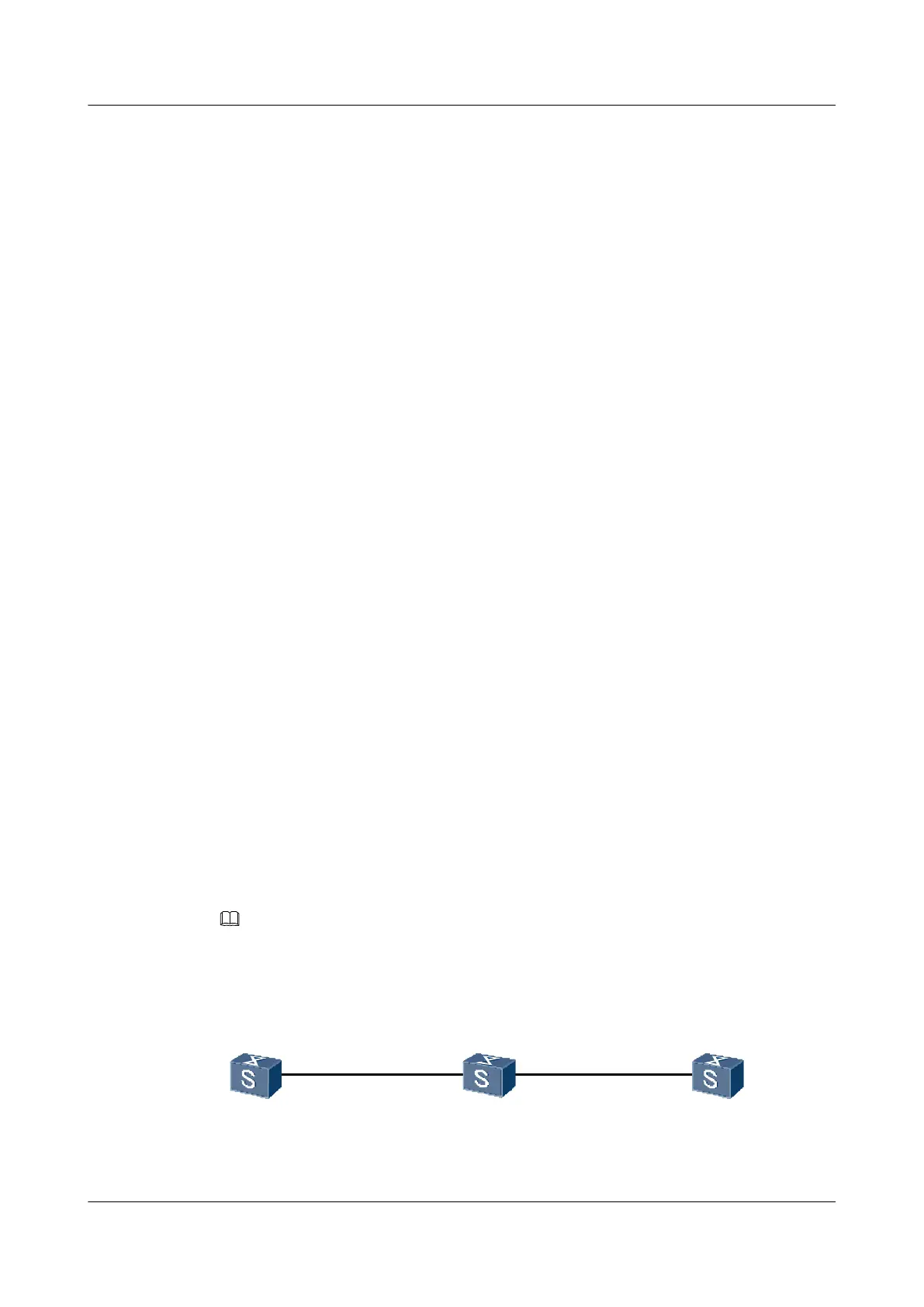

Figure 6-12 Networking diagram for configuring the Jitter test
SwitchA
GE0/0/1
VLANIF100
10.1.1.1/24
VLANIF100
10.1.1.2/24
VLANIF110
10.2.1.2/24
VLANIF110
10.2.1.1/24
GE0/0/1 GE0/0/1GE0/0/2
SwitchCSwitchB
NQA Server
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 6 NQA Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
353

Huawei Quidway S5700 Series Specifications

General

Category	Switch
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Series	Quidway S5700
Forwarding Performance	Up to 96 Mpps
Ports	24 or 48 x 10/100/1000Base-T ports
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C
Fixed GE Ports	24 or 48
Uplink Ports	4 x GE SFP ports
Routing Protocols	RIP, OSPF, BGP
Management	SNMP, RMON, CLI, Web
VLAN	4094 VLANs
PoE	Optional
