Huawei Quidway S5700 Series User Manual

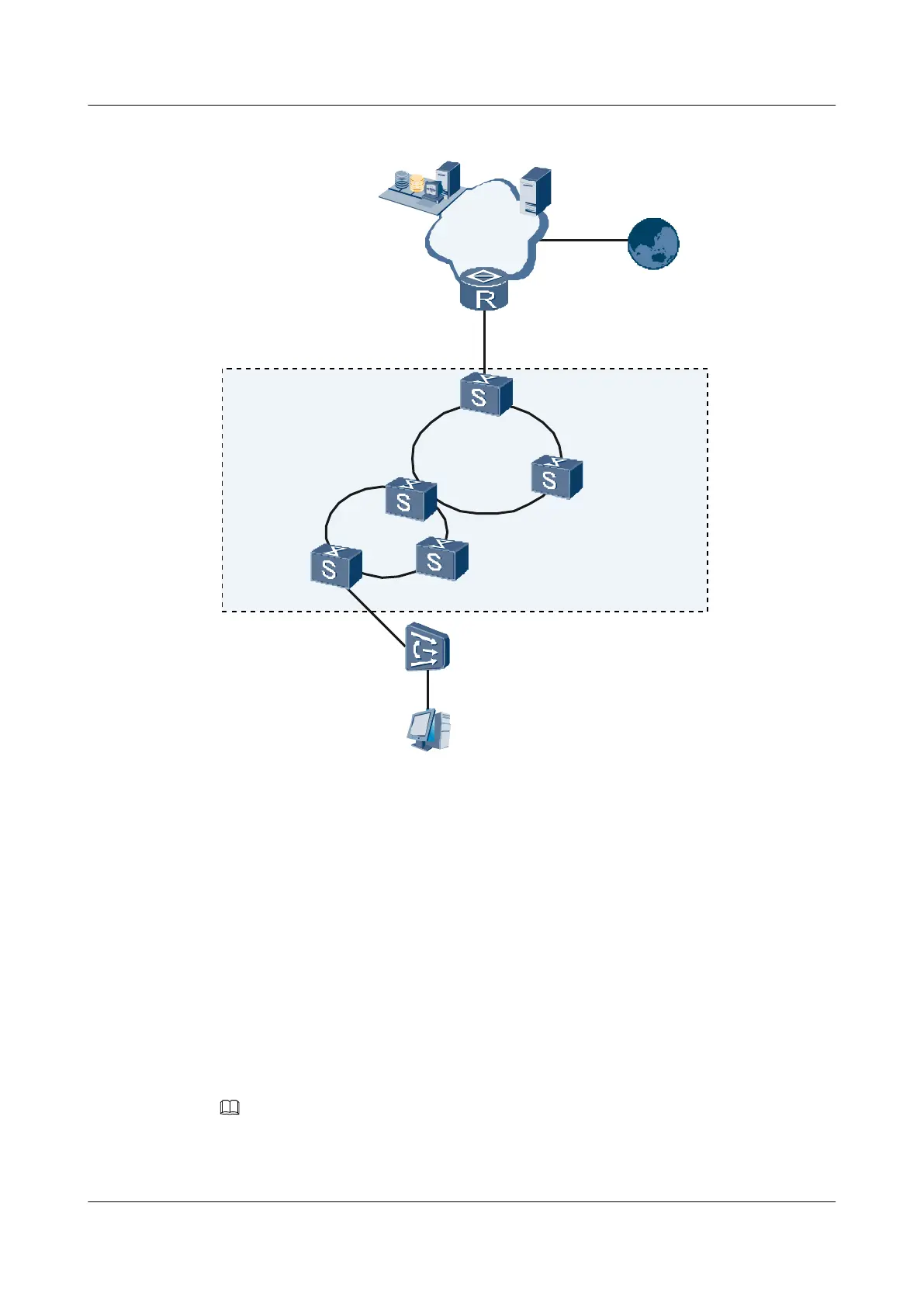

Figure 3-2 Networking diagram of a cluster (RRPP)
I
n
t
e r
n
e
t
I
n
t
e r
n
e
t
I
n
t
e r
n
e
t
I
n
t
e r
n
e
t
FTP
Server
IDC
Server
IP/MPLS
core
Router
Administrator
Member1 Member2
Member3
Member4
Host
DSLAM
Cluster1
Administrator: administrator switch Member: member switch
3.2 HGMP Features Supported by the S5700
This part describes the HGMP features supported by the S5700.
NDP
In HGMP, Neighbor Discovery Protocol (NDP) packets are used to collect information about
the directly connected neighbors, including the device model, software version, hardware
version, connection interface, member number, private IP address used for communication
within a cluster, and hardware platform.
NOTE
Any device that supports HGMP does not forward NDP packets.
An NDP table is created to store information about neighbors.
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 3 HGMP Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
82

Huawei Quidway S5700 Series Specifications

General

Category	Switch
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Series	Quidway S5700
Forwarding Performance	Up to 96 Mpps
Ports	24 or 48 x 10/100/1000Base-T ports
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C
Fixed GE Ports	24 or 48
Uplink Ports	4 x GE SFP ports
Routing Protocols	RIP, OSPF, BGP
Management	SNMP, RMON, CLI, Web
VLAN	4094 VLANs
PoE	Optional
