Huawei Quidway S5700 Series User Manual

interface GigabitEthernet0/0/1
port hybrid pvid vlan 100
port hybrid untagged vlan 100
#
interface GigabitEthernet0/0/2
port hybrid pvid vlan 110
port hybrid untagged vlan 110
#
return
l Configuration file of Switch C
#
sysname SwitchC
#
vlan batch 110
#
interface Vlanif110
ip address 10.2.1.2 255.255.255.0
#
interface GigabitEthernet0/0/1
port hybrid pvid vlan 110
port hybrid untagged vlan 110
#
nqa-server tcpconnect 10.2.1.2 9000
#
ip route-static 10.1.1.0 255.255.255.0 10.2.1.1
#
return
6.27.9 Example for Configuring the UDP Test
Networking Requirements
As shown in Figure 6-11, the NQA UDP Public test is used to obtain RTT of a UDP packet
transmitted between Switch A and Switch C.

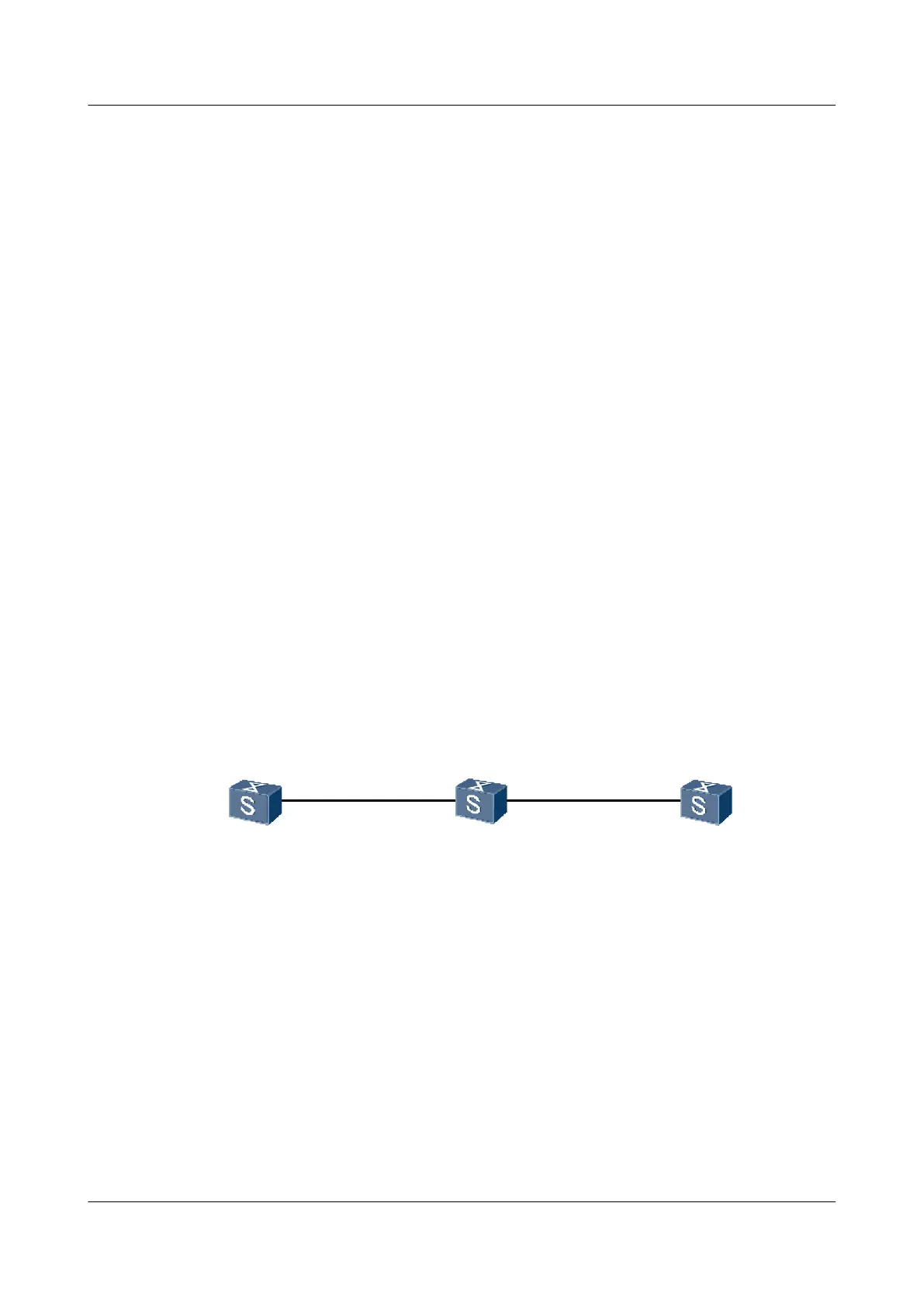

Figure 6-11 Networking diagram for configuring the UDP test
NQA Server
SwitchA
GE0/0/1
VLANIF100
10.1.1.1/24
VLANIF100
10.1.1.2/24
VLANIF110
10.2.1.2/24
VLANIF110
10.2.1.1/24
GE0/0/1 GE0/0/1GE0/0/2
SwitchB SwitchC
Configuration Roadmap
1. Configure Switch A as the NQA client and configure Switch C as the NQA server.
2. Configure the monitoring port number on the NQA server and create an NQA UDP Public
test on the NQA client.
Data Preparation
To complete the configuration, you need the following data:
l Host address of the server
l Port number used to monitor the UDP service on the server
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 6 NQA Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
351

Huawei Quidway S5700 Series Specifications

General

Category	Switch
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Series	Quidway S5700
Forwarding Performance	Up to 96 Mpps
Ports	24 or 48 x 10/100/1000Base-T ports
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C
Fixed GE Ports	24 or 48
Uplink Ports	4 x GE SFP ports
Routing Protocols	RIP, OSPF, BGP
Management	SNMP, RMON, CLI, Web
VLAN	4094 VLANs
PoE	Optional
