Context
CAUTION
Debugging affects the performance of the system. So, after debugging, run the undo debugging
all command to disable it immediately.
Procedure
Step 1 Run the debugging nqa all command in the NQA view to enable NQA debugging.
----End
6.27 Configuration Examples
This section provides several configuration examples of NQA.
6.27.1 Example for Configuring the ICMP Test
Networking Requirements
As shown in Figure 6-3, Switch A and Switch B must be connected at Layer 3 through the
VLANIF interface.
Switch A functions as the NQA client to check whether Switch B is reachable.

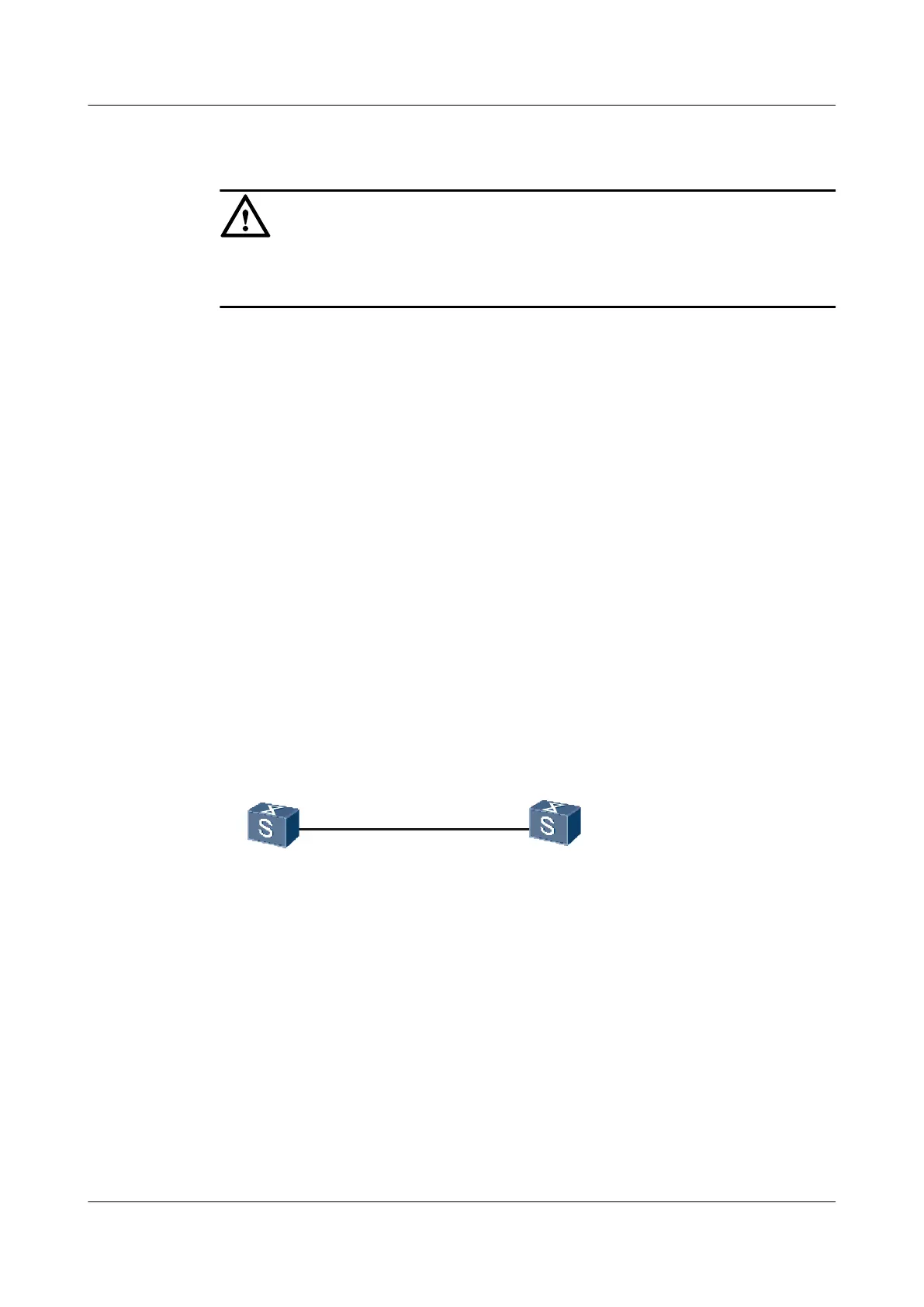

Figure 6-3 Networking diagram for configuring the ICMP test
GE0/0/1
VLANIF10
10.1.1.1/24
VLANIF10
10.1.1.2/24
GE0/0/1
SwitchA
SwitchB
NQA agent
Configuration Roadmap
The configuration roadmap is as follows:
1. Perform the NQA ICMP test to check whether the route between the local end (Switch A)
and the specified destination end (Switch B) is reachable and check the RTT of a test packet.
Data Preparation
To complete the configuration, you need the following data:
l Host address of Switch B
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 6 NQA Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
334
