Huawei Quidway S5700 Series User Manual

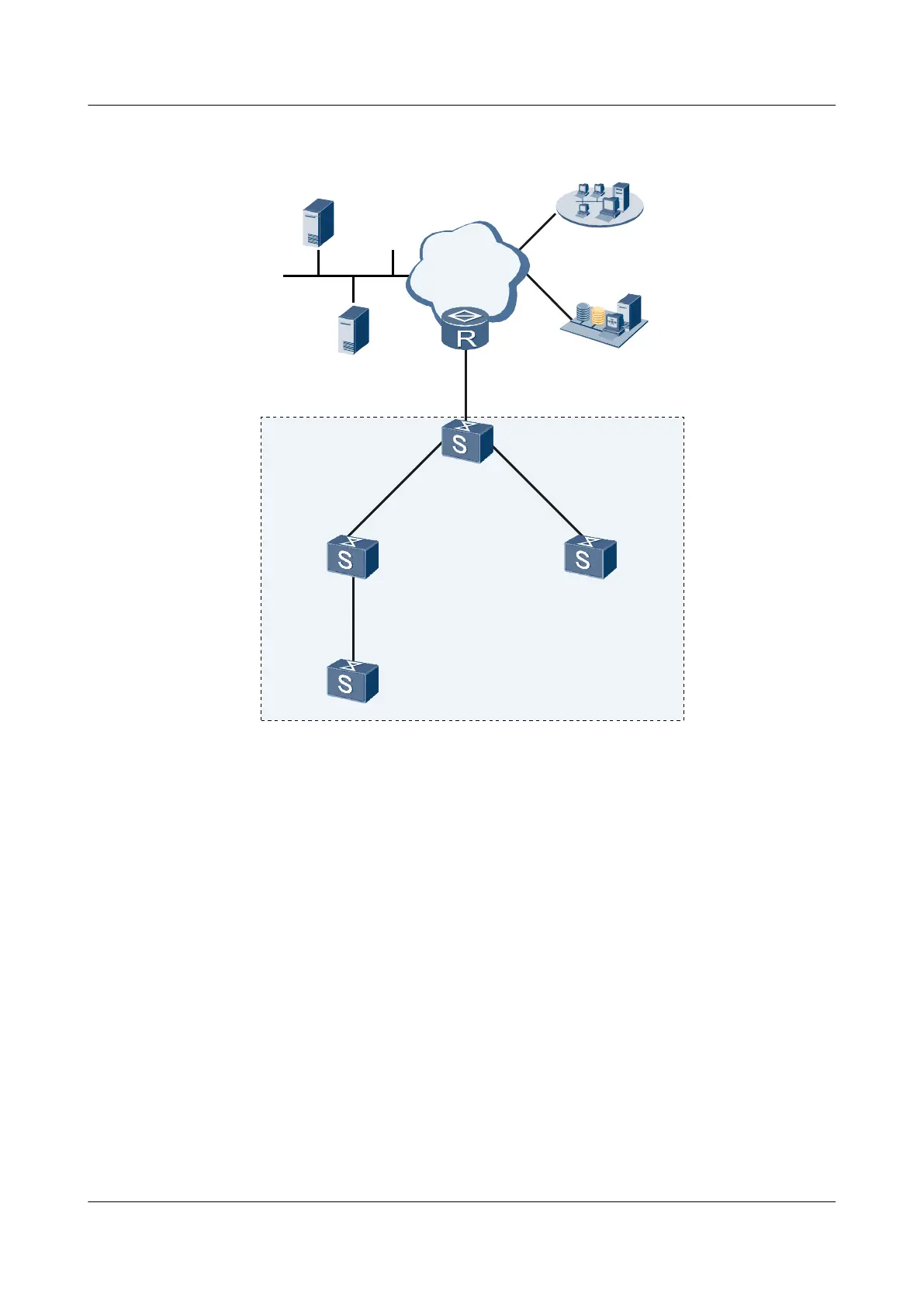

Figure 3-10 Networking diagram of configuring the incremental configuration function for an
HGMP cluster
IP/MPLS
core
......
FTP Server
2.0.0.1/8
SFTP Server
2.0.0.2/8
NM station
3.0.0.1/8
Log station
4.0.0.1/8
Administrator-1
10.0.0.1/8
Member-1
Member-2
Member-3
10.0.0.4/8
GE0/0/1 GE0/0/2
GE0/0/1
GE0/0/2
GE0/0/1
GE0/0/1
Cluster
GE0/0/3
GE0/0/1
1.0.0.2/8
Device MAC Address Device MAC Address
Administrator-1 0001-0001-0001 Member-1 0002-0002-0002
Member-2 0003-0003-0003 Member-3 0004-0004-0004
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a cluster according to the steps described in 3.6.1 Example for Configuring Basic
HGMP Functions for a Cluster.
2. Edit the list of incremental configurations command on the administrator switch.
3. Deliver the list of incremental configuration commands to the specified member switch.
Data Preparation
To complete the configuration, you need the following data:
l Management VLAN ID of the cluster, that is 10
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 3 HGMP Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
179

Huawei Quidway S5700 Series Specifications

General

Category	Switch
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Series	Quidway S5700
Forwarding Performance	Up to 96 Mpps
Ports	24 or 48 x 10/100/1000Base-T ports
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C
Fixed GE Ports	24 or 48
Uplink Ports	4 x GE SFP ports
Routing Protocols	RIP, OSPF, BGP
Management	SNMP, RMON, CLI, Web
VLAN	4094 VLANs
PoE	Optional
