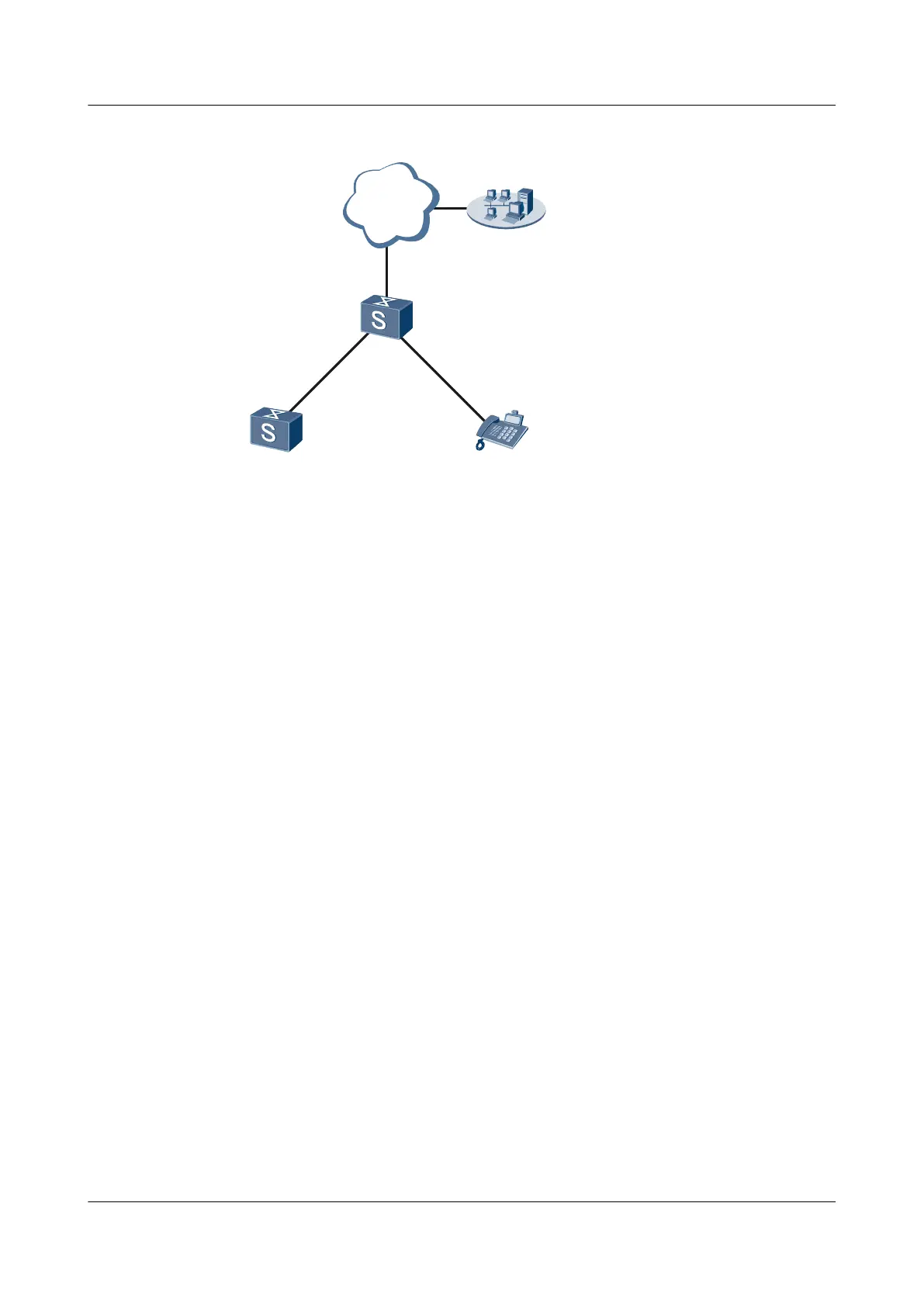

Figure 2-7 Configuring LLDP on the device that has a single neighbor
Internet
Switch A
Switch B ME
NMS
10.10.10.1
10.10.10.2
GE0/0/1
GE0/0/1
GE0/0/2
Configuration Roadmap
The configuration roadmap is as follows:
1. Enable global LLDP on SwitchA and SwitchB.
2. Enable SwitchA and SwitchB to process LLDP BPDUs.
3. Configure management addresses for SwitchA and SwitchB.
4. Enable the LLDP trap function on SwitchA and SwitchB.
Data Preparation
To complete the configuration, you need the following data:
l Management address 10.10.10.1 for SwitchA and management address 10.10.10.2 for
SwitchB
Procedure
Step 1 Enable global LLDP on SwitchA and SwitchB.
# Configure SwitchA.
<Quidway> system-view
[Quidway] sysname SwitchA
[SwitchA] lldp enable
# Configure SwitchB.
<Quidway> system-view
[Quidway] sysname SwitchB
[SwitchB] lldp enable
Step 2 Enable SwitchA and SwitchB to process LLDP BPDUs.
# Configure SwitchA.
Quidway S5700 Series Ethernet Switches
Configuration Guide - Network Management 2 LLDP Configuration
Issue 01 (2011-10-26) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
63

Huawei Quidway S5700 Series Specifications

General

Category	Switch
Operating Temperature	0°C to 45°C
Relative Humidity	5% to 95% (non-condensing)
Series	Quidway S5700
Forwarding Performance	Up to 96 Mpps
Ports	24 or 48 x 10/100/1000Base-T ports
Power Supply	AC or DC
Storage Temperature	-40°C to 70°C
Fixed GE Ports	24 or 48
Uplink Ports	4 x GE SFP ports
Routing Protocols	RIP, OSPF, BGP
Management	SNMP, RMON, CLI, Web
VLAN	4094 VLANs
PoE	Optional
