H.14 Part. N. 8000 H1344 (10-2009)
ENGINE REASSEMBLY

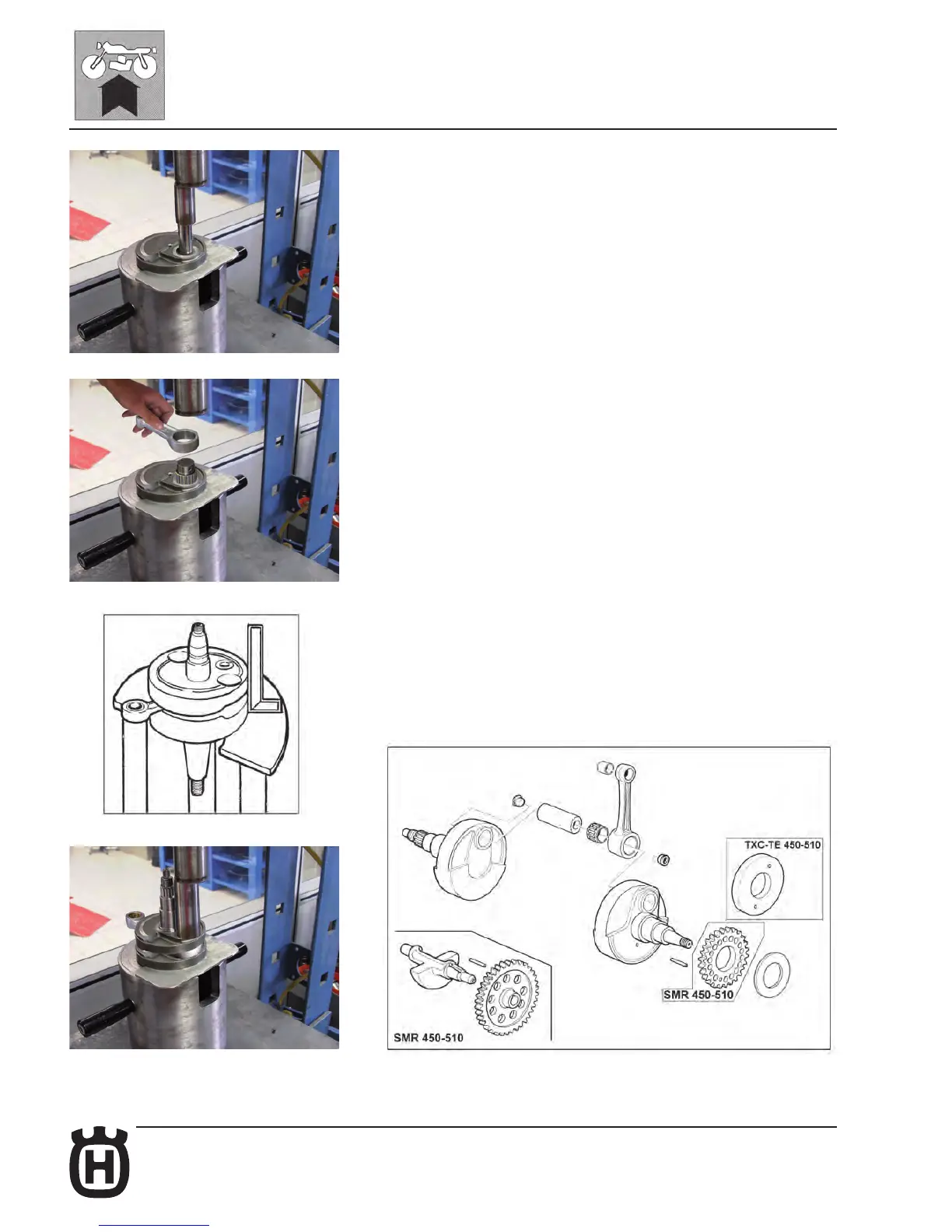

Reassembly of crankshaft
Carefully clean the lubrication ducts. Lubricate the crankpin with motor oil and
place it in the ywheel.
Fit the roller bearing and lubricate with engine oil. Fit the connecting rod and the
second half-ywheel. See that the half-ywheels are aligned using a triangle.
Join all the elements using a press.
Press the crank discs together to the same distance as the length of the crankpin.
Respect measure “B” shown on page H.15 when tting the coupling pin.
