ELECTRIC SYSTEM, DIGITAL INSTRUMENT

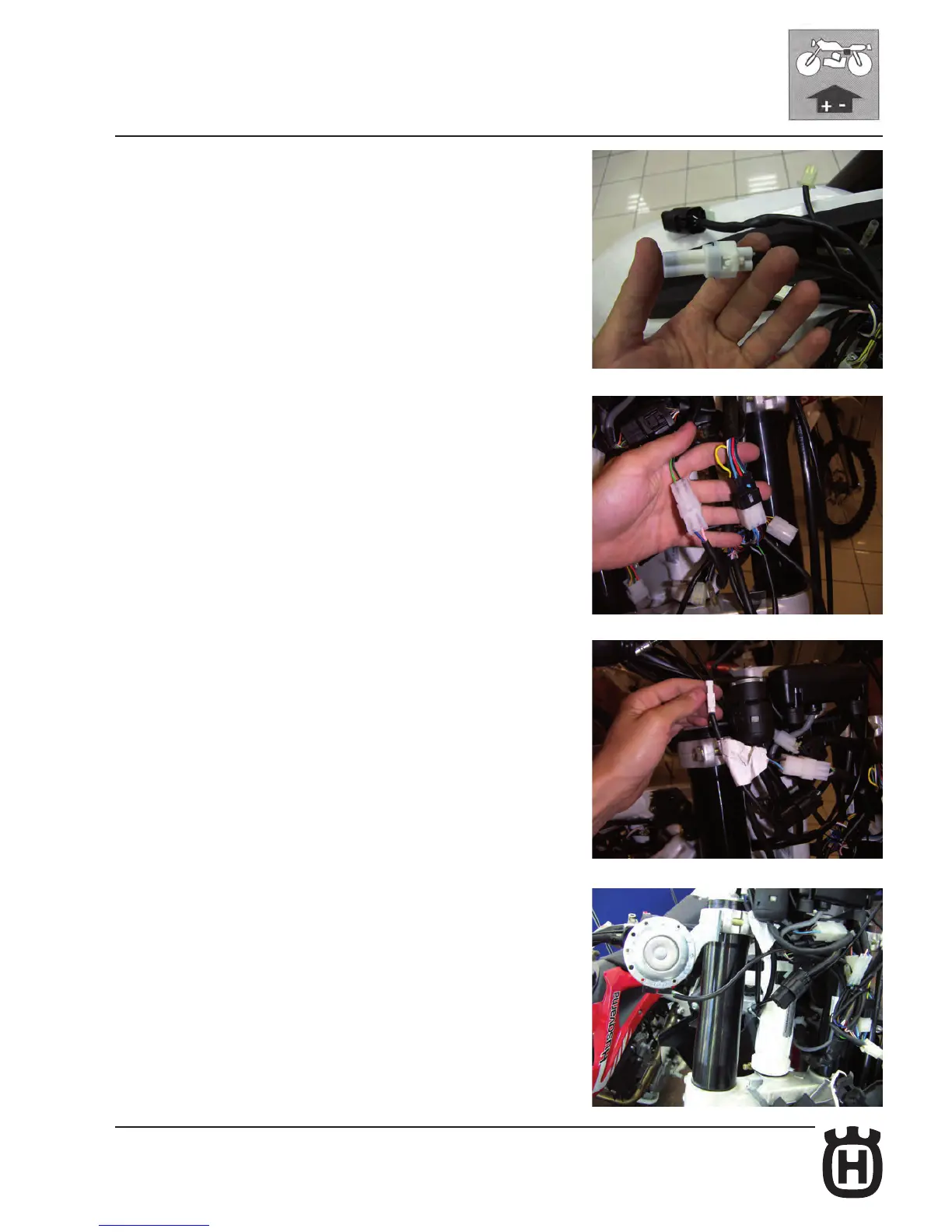

• Double-map connector plug.
Fit the plug into the double-map connector.
• Clutch and left handle block connectors.
Connect the left block and clutch sensor connectors
.
• Front stop, speed sensor and right handle block connectors.
Connect the right block, front stop and speed sensor connectors
.
• Horn connector
Connect the horn as shown in the gure.
