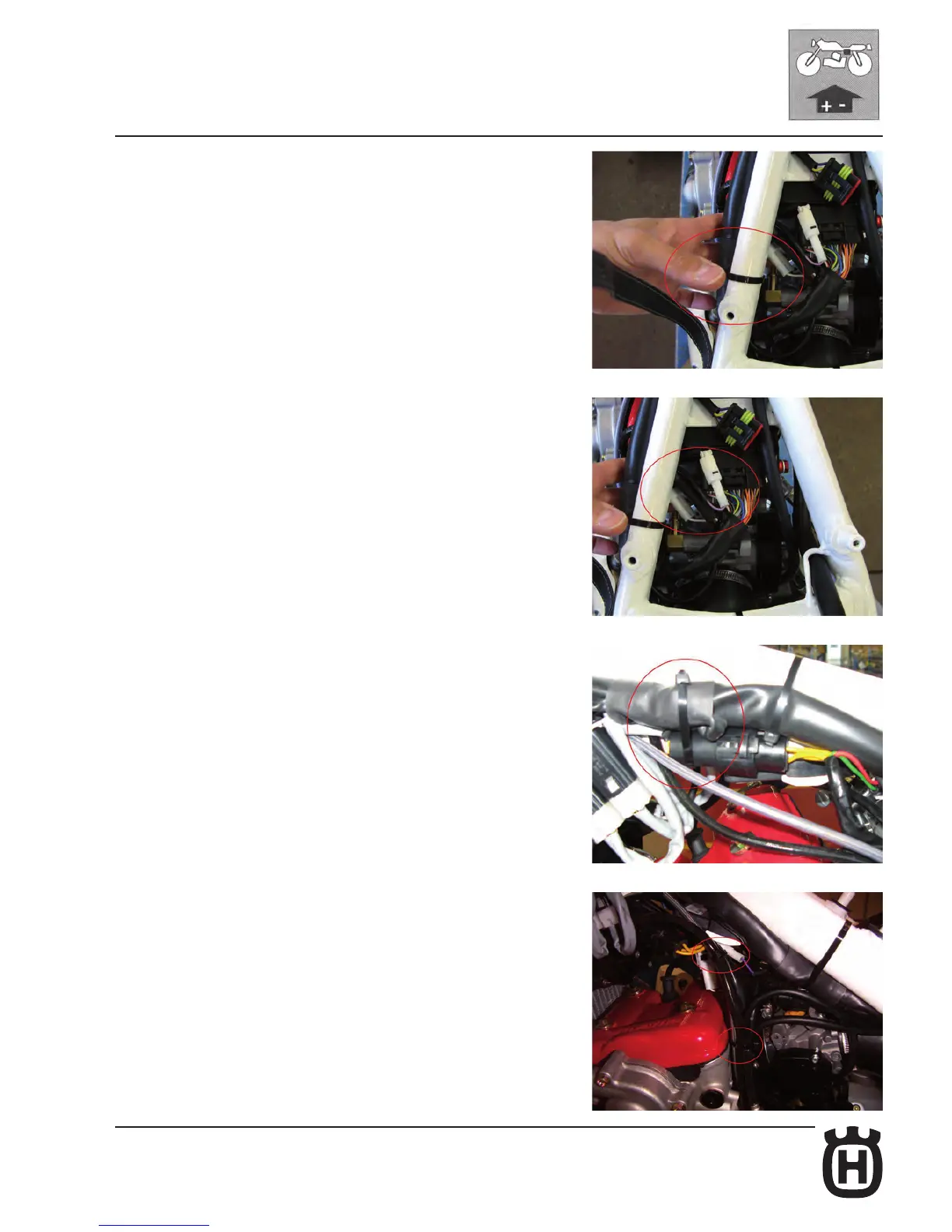

ELECTRIC SYSTEM, DIGITAL INSTRUMENT
• Fastening wiring
Make sure the cable node is secured outside the frame.
• Fastening wiring
Place the GPS and Pick-Up connectors as shown.
• Fastening wiring
Secure the generator connector as shown.
• Fastening wiring
Connect the start, speed sensor and lambda sensor cable bundle to the hy-
draulic clutch pipe.
