4–90
6400 Line Matrix Printers Setup Guide, Cabinet and Pedestal Models
Operator Print Tests Menu
Printer
Demonstration
(From
page 4–9)
Print Error Log
Ripple Print All E’
s
All H’
s
OPERATOR
PRINT TESTS
All E’
s + FF
Underlines
T
o exit the configuration menus
T
o view options, press:
T
o select an option, press:
*
= Factory Default
and return to READY
, press:
Enter ReturnScroll Scroll
Start
Enter
T
o exit the configuration menus
Ethernet
T
est Page
(1)
Note:
(1)
The
Ethernet T
est Page is only available with the Ethernet
Interface
installed.

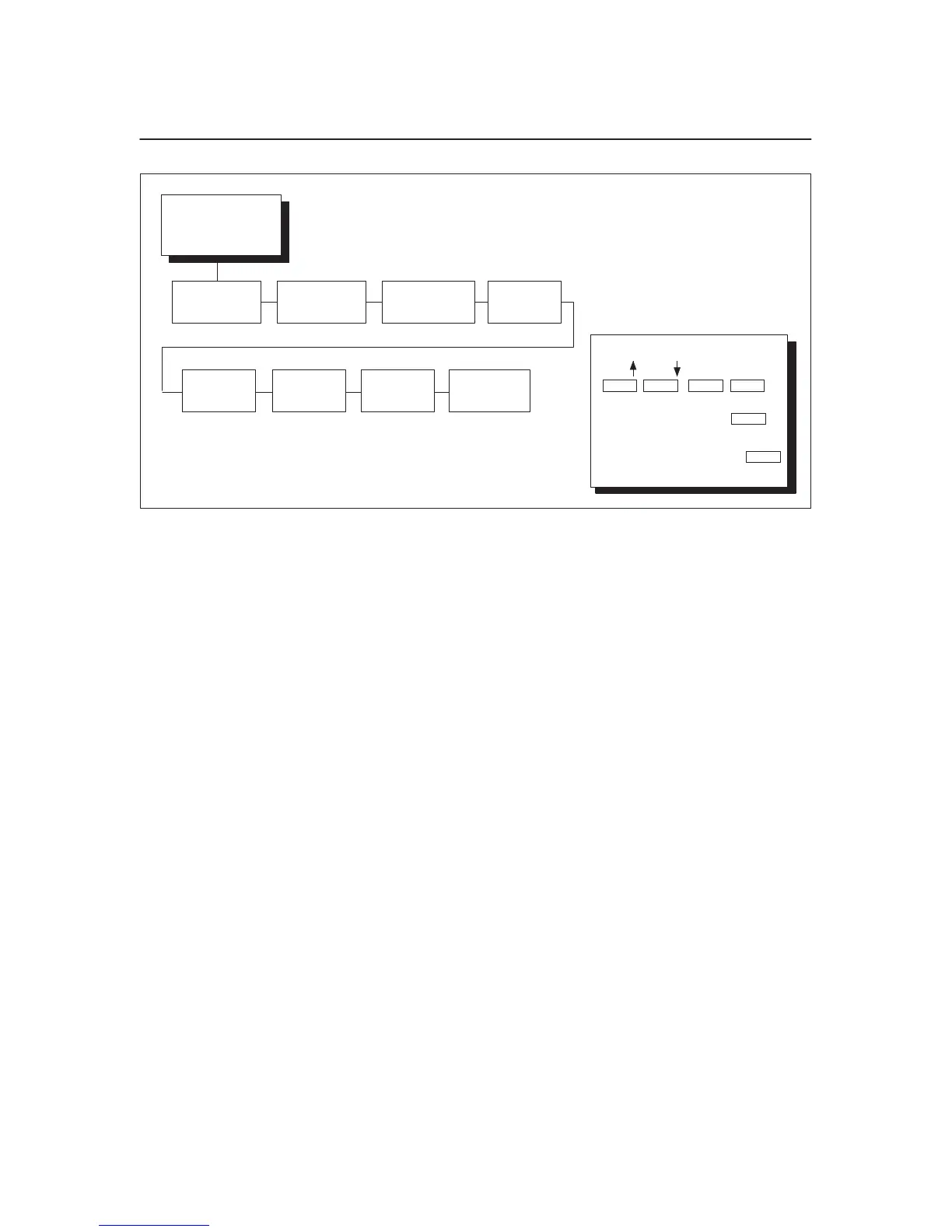

Figure 4–23. Operator Print Tests Menu
The print tests are used to check the print quality and operation of your
printer. The procedure to run these tests is shown on page 6–7. The self-tests
include the following:
• Printer Demonstration — Demonstrates some of the functions and
features available on the printer.
• Print Error Log — Prints a log of errors that have occurred in the printer.
• Ripple Print — A “sliding” alphanumeric pattern used to identify
missing or malformed characters, improper vertical alignment, or vertical
compression.
• All E’s — A pattern of all uppercase E’s that identifies missing
characters, misplaced dots, smeared characters, improper phasing
problems, or light/dark character variations.
• All H’s — A pattern of all uppercase H’s used to detect missing
characters, misplaced dots, smeared characters, or improper phasing.
• All E’s + FF — A pattern of all E’s repeated for ten lines and followed by a
form feed to the next page top-of-form, used to identify paper motion or
feeding problems, such as paper path obstruction or improper forms.
• Underlines — An underline pattern useful for identifying hammer bank
misalignment.
