6400 Line Matrix Printers Setup Guide, Cabinet and Pedestal Models
Printer Component Locations
Familiarize yourself with the names and locations of the printer components
shown in the following figures before continuing with the rest of the
installation procedure.
Ribbon Loading Path
Diagram
Forms Thickness
Pointer
Forms Thickness
Lever
Horizontal
Adjustment
Knob
Vertical Position
Knob
Tractor Lock
Paper Scale
Tractor Door
Lower Paper Guide
Tractor Lock
Paper Supports

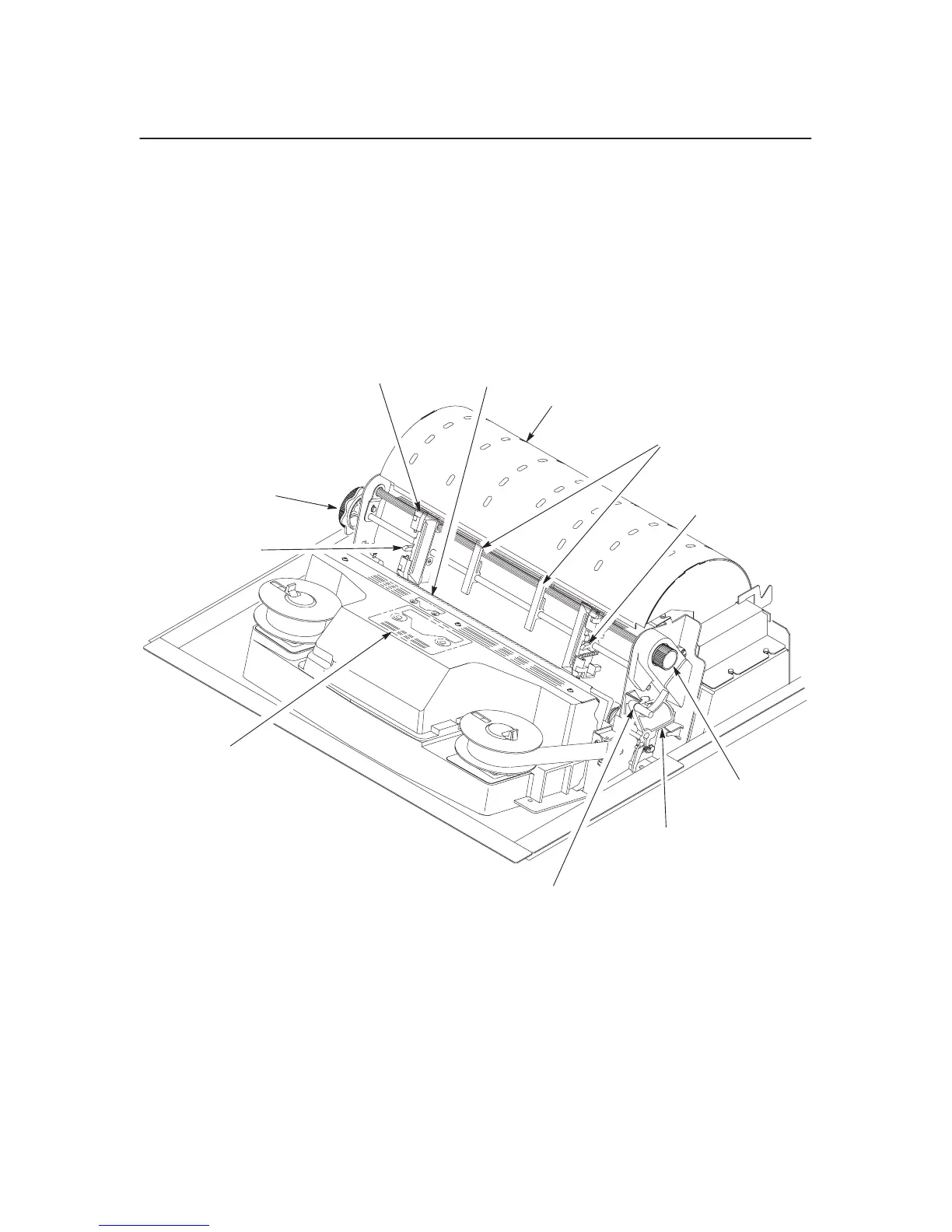

Figure 2–2. Cabinet Model Component Locations
