6400 Line Matrix Printers Setup Guide, Cabinet and Pedestal Models
Power Paper Stacker Option
Overview
This section explains how to set up and use the optional power paper stacker.
The power stacker mechanically directs the paper from the printer to the
paper stack.
Power Paper Stacker Component Locations
Familiarize yourself with the names and locations of the components shown
in the following illustration before operating the power paper stacker.
Paper Throat
Motor
Bracket
Rear Operator
Panel
Wire Paper Tent
(Optional)
Paddle Shaft
Bearing Bracket
Paper Length
Indicator
Alignment Rod (2)
Pinch Rollers

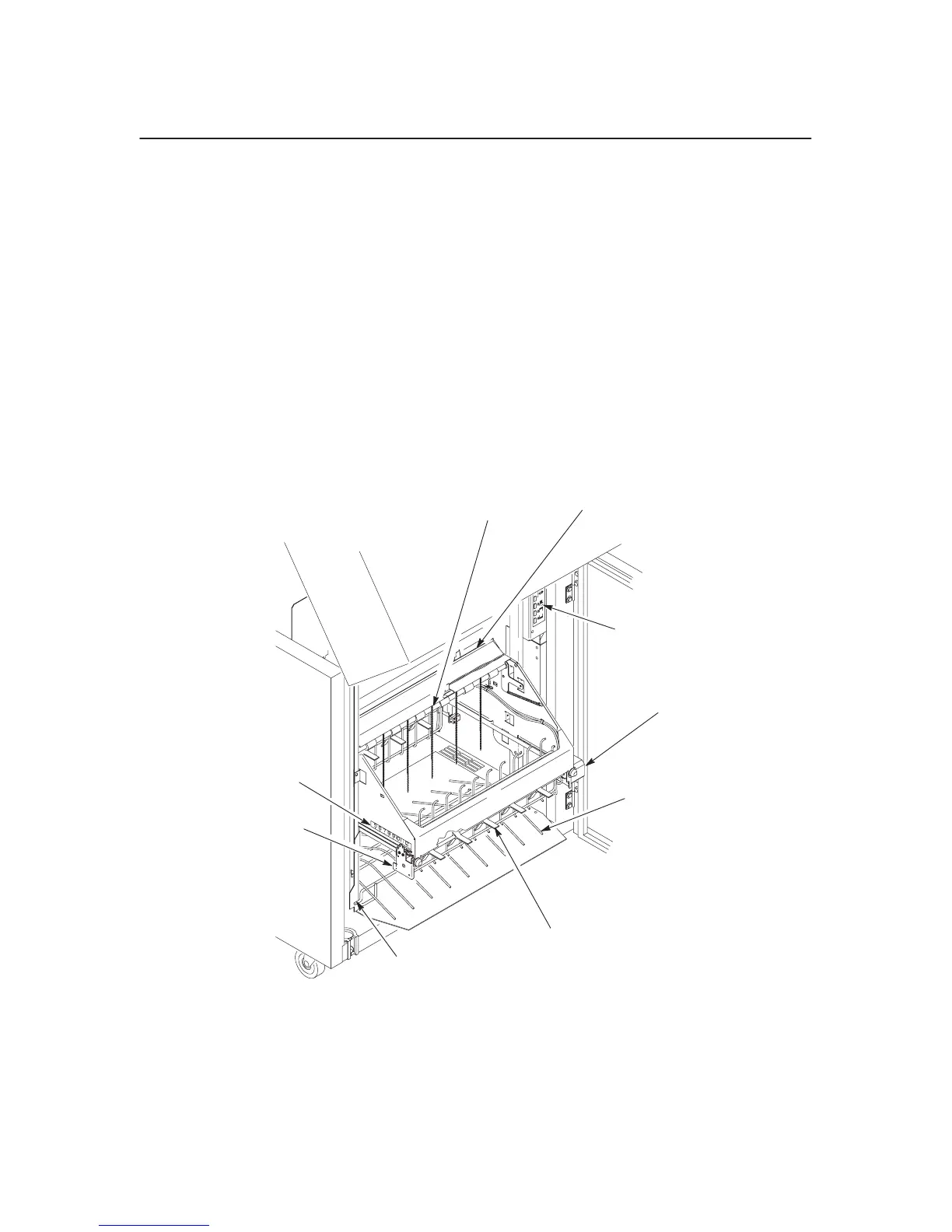

Figure 2–43. Power Paper Stacker Component Locations
