IBM 6400

2–36
6400 Line Matrix Printers Setup Guide, Cabinet and Pedestal Models
Dataproducts I/O Adaptor
Pedestal Model Cabinet Model
Auxiliary I/O
Serial
RS232/RS422
Auxiliary I/O
Diagnostic
Serial
RS232/RS422
Diagnostic
Dataproducts Standard Adapter
1
Not present on Network models
Parallel
1
Parallel
1

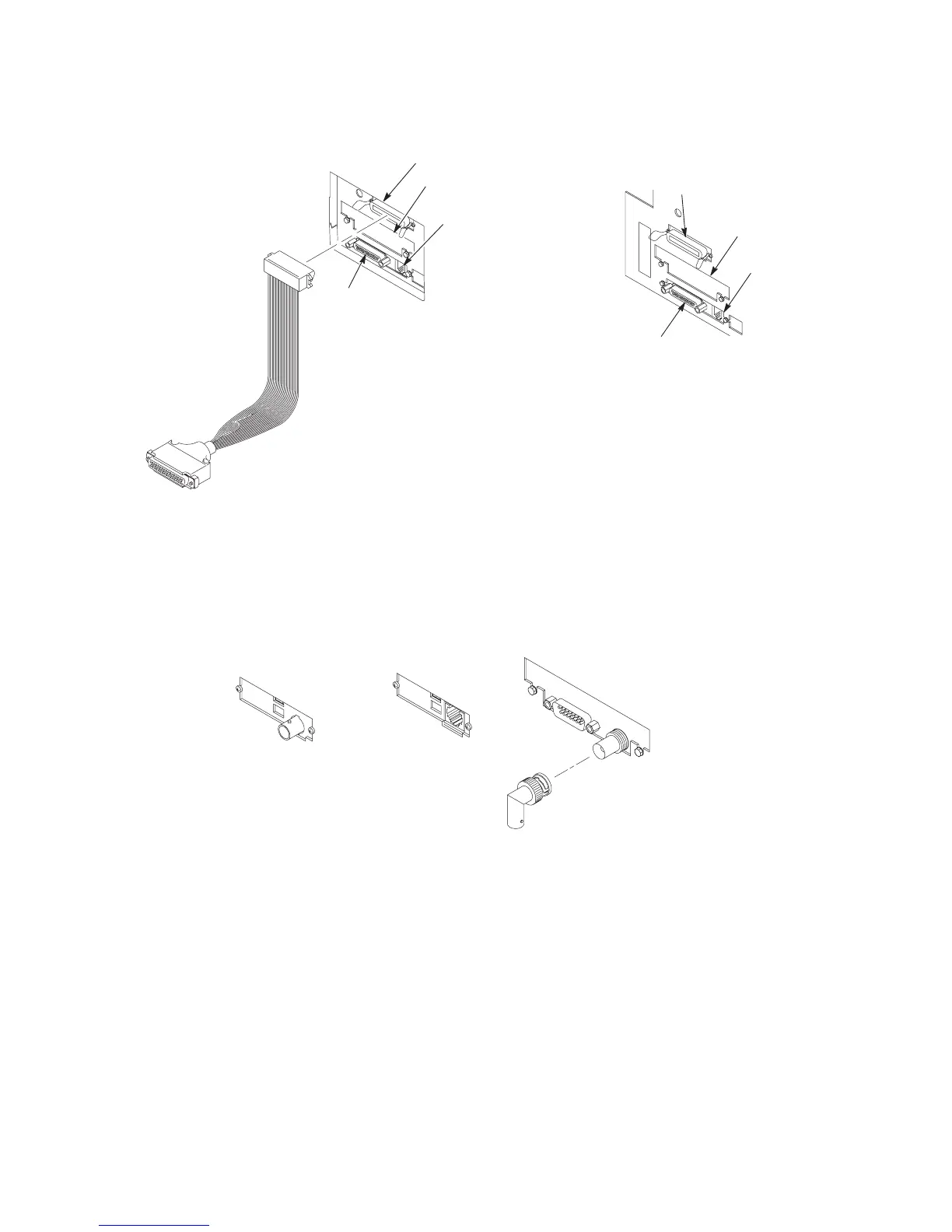

Figure 2–27. Dataproducts I/O Adaptor
Optional Interfaces for Auxiliary I/O
Network 10 Base 2 Network 10 Base T
Coax / Twinax
90° BNC connector required for Coax
connection with the Power Stacker .
Figure 2–28. Optional Interfaces for Auxiliary I/O
